EKKO EA15A Semi-Electric Walkie Stacker – 3,300 lb Capacity, 118" Lift, Adjustable Forks, 24V Maintenance Free Battery

EKKOModel EA15ABrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $207.90

$4,158.00

$4,158.00 - $4,158.00

$4,158.00

$3,950.10

$3,950.10 - $3,950.10

$3,950.10

Configure your EA15A

Compare models

Lift height: 118″

118″ Selected 138″ 95″ only

Mast: 85″

85″ Selected 95″ 138″ only

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EA15A

About the EA15A

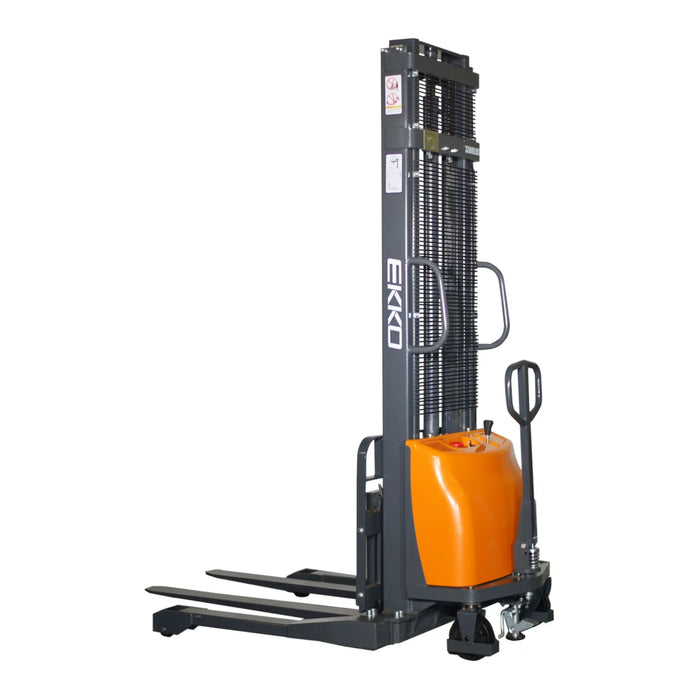

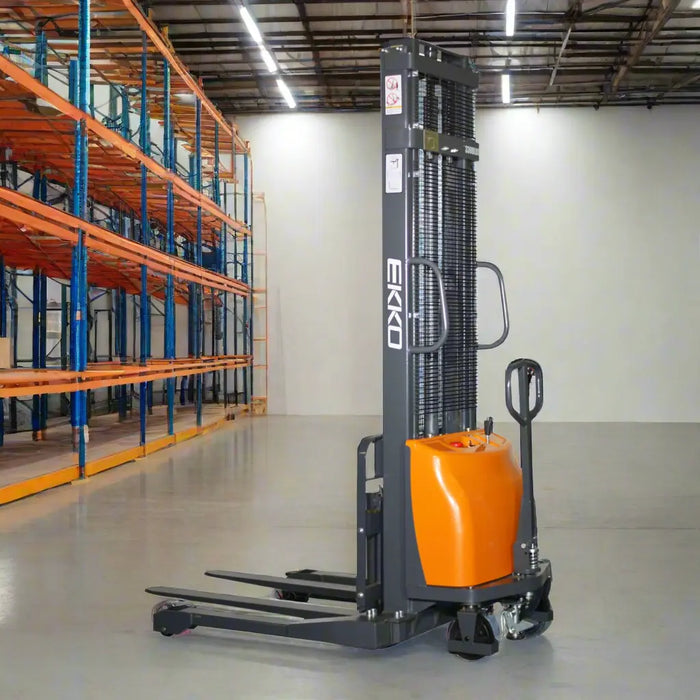

The EKKO EA15A semi-electric straddle stacker puts powered lift on a simple walk-behind chassis. It raises 3,300 lb to 118" at a 20" load center, while the operator moves it by hand, so the battery only works when the forks go up or down.

Forks adjust from 8.66" to 32" and the straddle legs from 35" to 51", so one stacker covers a range of pallet sizes. A 12V/120Ah battery with a built-in 12V/15A charger runs the 2.2 kW lift motor, and the mast stands 85" tall when lowered.

From the manufacturer

The EKKO EA15A semi-electric straddle stacker combines the lifting ability of a forklift with the compact footprint of a pallet stacker. It is suited to loading and unloading trucks, loading docks, stockrooms, manufacturing floors and warehouses.

It is built from high-quality steel and components, with robotic welding, to stand up to daily use, impacts and frequent changes of direction.

Highlights

3,300 lb load capacity at a 20" load center
118" maximum lift height (9.83 ft)
Electric lift with manual push/pull travel
Adjustable forks 8.66"–32" overall width
Adjustable straddle legs 35"–51"
85" lowered mast height
2.2 kW DC lift motor
12V/120Ah battery with built-in 12V/15A charger
59" turning radius, steel construction with robotic welding and polyurethane wheels
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Load capacity	3,300 lb
Max lift height	118 in
Load center	20 in

Dimensions

Turning radius	59 in
Overall length	70 in
Max overall width	59 in
Extended mast height	147 in
Lowered mast height	85 in

Power & drive

Lift	Electric
Travel	Manual
Battery	12V / 120Ah
Charger	12V / 15A, on-board
Lift motor	2.2 kW DC

Forks & chassis

Fork length	45 in
Single fork width	4 in
Adjustable fork width	8.66–32 in
Lowered fork height	2.6 in
Adjustable leg width	35–51 in

General

Model	EA15A
Service weight	1,212 lb
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $150. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EA15A:

3 yearsFrame, mast and forks
1 yearDrive and lift motors, controller, hydraulics, charger and battery (lithium or lead-acid)
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (844) 455-4327 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(844) 455-4327 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (844) 455-4327 or email support@equipmentnation.com.

SEMI-ELECTRIC STRADDLE STACKER · EA15A

POWERED LIFT TO 118 INCHES

The EKKO EA15A lifts 3,300 lb to 118" with a 2.2 kW lift motor while you guide it by hand. Forks adjust from 8.66" to 32" and straddle legs from 35" to 51".

Capacity3,300 lbLift118″Mast85″

3,300 lbCapacity

118″Lift

85″Mast

Lead-acid 12VBattery

NewFull manufacturer warranty

BUILT FOR THE JOB

Stacking without a forklift

The EA15A is for operations that need to stack pallets but do not need a powered drive. An electric motor does the lifting; the operator walks behind and moves the stacker by hand. It raises 3,300 lb to 118" at a 20" load center and stands 85" tall with the mast lowered. Forks adjust from 8.66" to 32" and straddle legs from 35" to 51" to fit different pallets. A 12V/120Ah battery and built-in 12V/15A charger power the lift. If your top beam sits higher, the EA15A-138 reaches 138" on the same chassis.

See full specifications

WHY THE EA15A

ENGINEERED WHERE IT COUNTS.

3,300 lb to 118"

Rated for 3,300 lb at a 20" load center with a 118" (9.83 ft) maximum lift. The mast extends to 147" at full height, so check ceiling, light and sprinkler clearance before you order.

Electric Lift, Manual Travel

A 2.2 kW DC lift motor raises the forks under power while travel stays manual. The 12V/120Ah battery only powers lifting, and the built-in 12V/15A charger means no separate charging station.

Adjustable Forks and Legs

Forks adjust from 8.66" to 32" overall width on 45" fork length, and the straddle legs set from 35" to 51". Match them to your pallets for centered, stable loads.

Compact Steel Chassis

At 70" long with a 59" turning radius, the EA15A works in narrow aisles and back rooms. Steel construction, robotic welding, polyurethane wheels and an ergonomic handle suit daily use.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Stockroom racking

Put away and pull pallets on upper beam levels up to 118" in back rooms, without a forklift.

Small warehouses

Add real stacking height to a growing operation while keeping equipment cost and upkeep low.

Dock staging

Double-stack pallets in staging lanes to free floor space during busy receiving days at the dock.

Production supply

Raise material pallets to a comfortable working height so line workers reach parts without bending.

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

	This itemEA15A$3,950.10	EA15B$3,950.10	EA15C$3,798.10	EA15D$4,254.10
Capacity	3,300 lb	3,300 lb	3,300 lb	3,300 lb
Lift	118″	119.4″	119.3″	138″
Mast	85″	84.5″	81.8″	92″
Battery	Lead-acid 12V	Lead-acid 12V	Lead-acid 12V	Lead-acid 12V
Shipping	Free	Free	Free	Free
	You're viewing this	View details	View details	View details

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EA15A.

Still unsure? Call (844) 455-4327 or email support@equipmentnation.com. Real people, Mon–Fri.

How is the EA15A different from the EA15A-138?

Both carry 3,300 lb and share the 2.2 kW lift motor, the 12V/120Ah battery and the same adjustable forks and legs. The EA15A lifts to 118" and stands 85" with the mast lowered. The EA15A-138 lifts to 138" but stands 95" lowered, so it needs more clearance at doorways. Choose by top beam height and door height.

Will the EA15A fit through my doorway?

With the mast lowered, the EA15A stands 85" tall, taller than a typical 80-inch interior door, and it is 59" wide at its maximum setting. Measure door height and width along your route. If the numbers are tight, call (888) 378-6244 and we will check them with you.

Is the EA15A self-propelled?

No. The EA15A is semi-electric: lifting is powered by a 2.2 kW DC motor and travel is manual. The operator pushes or pulls it by the ergonomic handle on polyurethane wheels. That keeps the design simple and suits short moves in stockrooms, staging areas and along production lines.

How is the EA15A charged?

A 12V/15A charger is built in and matched to the 12V/120Ah battery. Park the stacker, plug it in and charge; there is no separate charging station to buy or mount. Because travel is manual, the battery only powers lifting and lowering.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $150). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.

CUSTOMER REVIEWS

OWNERS ON THE EA15A.

No reviews yet. Customer reviews will appear here as they come in.

Questions before you buy? Call (844) 455-4327.

Own the EA15A? Be the first to review it.

How does it handle your loads and lift heights?
How does the battery hold up over a full shift?
How was ordering, delivery and setup?
