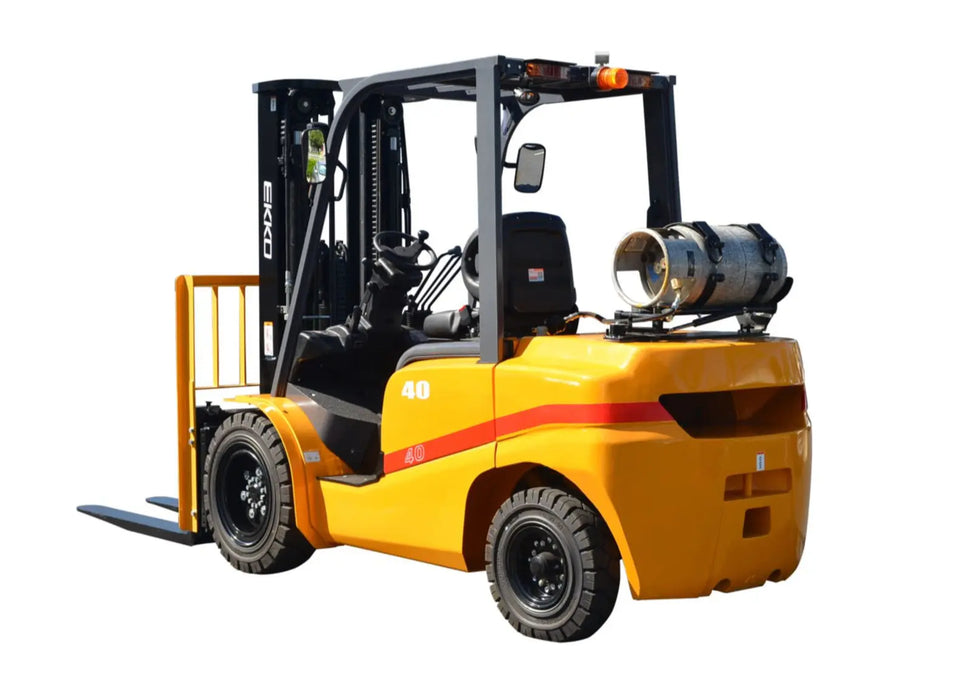

EKKO EK40TLP Forklift with solid pneumatic tires 8500 lb

EKKOModel EK40TLPBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $2,309.95

$46,199.00

$46,199.00 - $46,199.00

$46,199.00

$43,889.05

$43,889.05 - $43,889.05

$43,889.05

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EK40TLP

About the EK40TLP

Take on steel, stone and heavy crates with the EKKO EK40TLP, the top of EKKO's LPG solid pneumatic line. It lifts 8,500 lb to 185" with 37.9" of free lift on a 70.8" wheelbase, with Cascade side shift and a pre-plumbed Shimadzu 4-way valve standard.

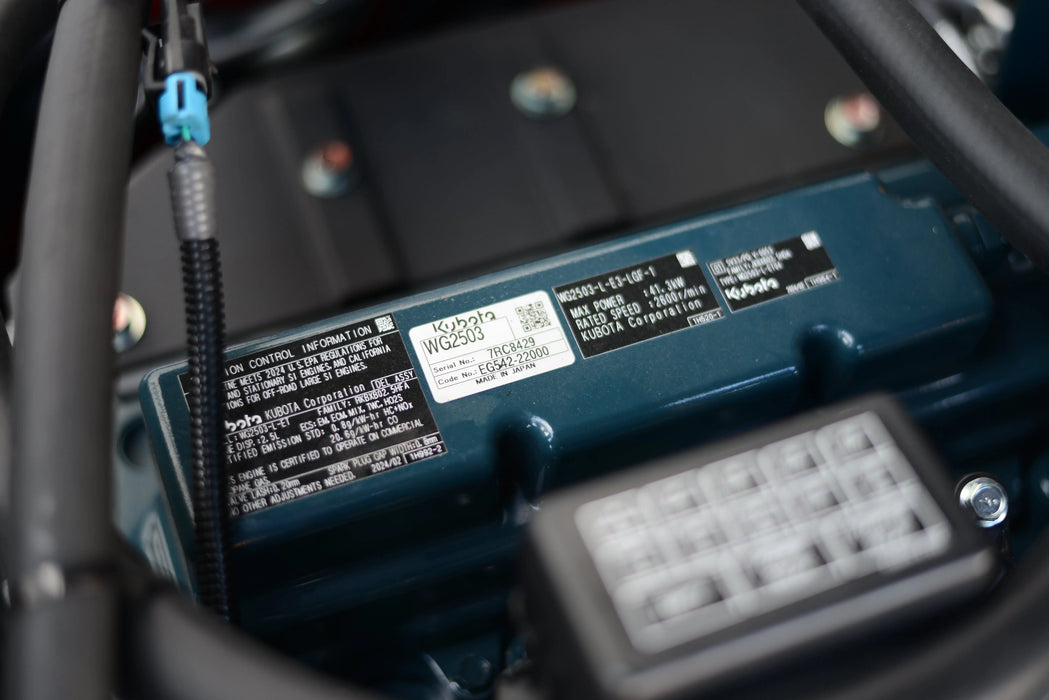

A Tier 4 EPA-compliant Kubota or PSI 2.4L engine rated 63 HP at 2,700 rpm runs on liquid propane and meets CARB regulations. Cascade side shift and a pre-plumbed Shimadzu 4-way valve come standard.

From the manufacturer

The EKKO EK40TLP liquid propane 4-wheel forklift is designed for all your material handling demands, warehousing and distribution. It is Tier 4 EPA compliant with a Kubota or PSI 2.4L engine that meets CARB regulations.

An enlarged operator space sits under a heightened overhead guard with wide arc-shaped front legs. A semi-suspension seat, small steering wheel, electro-hydraulic direction changing and an automobile-style combination switch improve driving comfort, and a cushion-connected, fully suspended cab absorbs vibration. A lowering damping device in the lift system reduces mast shock and the noise of loads touching down. A small turning radius keeps steering easy, and an optimized hydraulic system improves energy efficiency and lowers fuel consumption.

Highlights

Load capacity 8,500 lb at a 24" load center
185" maximum lift height with 37.9" free lift
Kubota or PSI 2.4L LPG engine, 63 HP at 2,700 rpm
Tier 4 EPA compliant, meets CARB regulations
Cascade side shift and pre-plumbed Shimadzu 4-way valve
Solid pneumatic tires (250-15 front / 6.50-10 rear)
Suspended cab and semi-suspension seat
Electro-hydraulic direction changing and small steering wheel
Lowering damping device reduces mast shock and noise
Heightened overhead guard with arc-shaped front legs

Specifications

Capacity & lift

Load capacity	8,500 lb
Load center	24 in
Max lift height	185 in
Free lift	37.9 in
Height with forks raised	234 in

Dimensions

Lowered mast height	86.2 in
Length with forks	157 in
Length without forks	112 in
Overall width	52.9 in
Wheelbase	70.8 in
Ground clearance (at mast)	4.7 in

Power & drive

Fuel	LPG (liquid propane)
Engine	Kubota or PSI 2.4L
Rated power	63 HP at 2,700 rpm
Emissions	Tier 4 EPA, CARB compliant
Travel speed (laden/unladen)	10.3 / 11.2 mph
Battery	12V / 60Ah
Service brake	Hydraulic floor pedal

Forks & chassis

Side shift	Cascade
Auxiliary valve	Shimadzu 4-way (pre-plumbed)
Fork size (L × W × T)	42.1 × 5.9 × 1.9 in
Tires	Solid pneumatic
Tire size (front / rear)	250-15 / 6.50-10

General

Model	EK40TLP
Service weight	11,519 lb
Warranty	See manufacturer warranty

Manuals & downloads

EKKO LPG & Diesel Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $150. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 2-year engine · we handle claims for you

Every machine is brand new and covered by the EKKO LPG & Diesel Warranty. Coverage for the EK40TLP:

3 years / 6,000 hrsFrame, mast and forks
2 years / 4,000 hrsEngine
1 year / 2,000 hrsParts, including electrical components
6 months / 1,000 hrsLabor, up to 60% with EKKO's prior approval
30 daysBattery and wear items (tires, bulbs, lights)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (844) 455-4327 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(844) 455-4327 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (844) 455-4327 or email support@equipmentnation.com.

LPG SOLID PNEUMATIC FORKLIFT · EK40TLP

8,500 LB FOR HEAVY YARD WORK

The EKKO EK40TLP is the top of EKKO's LPG solid pneumatic line. It lifts 8,500 lb to 185" and includes Cascade side shift and a pre-plumbed Shimadzu 4-way valve.

Capacity8,500 lbLift185″PowerLPG

8,500 lbCapacity

185″Lift

LPGPower

Solid pneumaticTires

NewFull manufacturer warranty

BUILT FOR THE JOB

The heaviest TLP in the yard

The EK40TLP is for yards where loads are dense and heavy: steel, stone, machinery crates and double-stacked materials. At 8,500 lb, it carries more than any other TLP model, well above the 7,000 lb EK35TLP, on a longer 70.8" wheelbase, 250-15 front tires and wider 5.9" forks. It lifts to 185" with 37.9" of free lift. A Tier 4 EPA-compliant Kubota or PSI 2.4L propane engine meets CARB regulations. Cascade side shift and a pre-plumbed Shimadzu 4-way valve are standard, so it is ready for an attachment on heavy, awkward loads.

See full specifications

WHY THE EK40TLP

ENGINEERED WHERE IT COUNTS.

8,500 lb, 185" Lift

Rated for 8,500 lb at a 24" load center with a 185" lift height and 37.9" of free lift. Forks measure 42.1 x 5.9 x 1.9 in for dense loads that would overwhelm a 5,000 or 6,000 lb truck.

Kubota or PSI 2.4L Engine

A Tier 4 EPA-compliant Kubota or PSI 2.4L engine, rated 63 HP at 2,700 rpm, runs on liquid propane and meets CARB regulations. An optimized hydraulic system is designed for lower fuel consumption.

Side Shift, 4-Way Valve

Cascade side shift lets the operator line up loads without repositioning. A pre-plumbed Shimadzu 4-way valve adds a fourth hydraulic function, ready for an attachment such as a fork positioner.

Suspended Cab, Damped Mast

A heightened, arc-shaped overhead guard enlarges the operator space. A fully suspended cab, semi-suspension seat and electro-hydraulic direction changing reduce fatigue, and a lowering damping device cuts mast shock and noise.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Steel and pipe yards

Move heavy bundles of steel, pipe and structural members across rough outdoor storage yards.

Stone and masonry

Handle crated stone, pallets of block and heavy masonry products on uneven outdoor surfaces.

Machinery dealers

Load and unload heavy equipment crates and components on trucks in outdoor dealer and service yards.

Precast concrete

Move heavy precast products and forms around outdoor production yards on solid pneumatic tires.

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

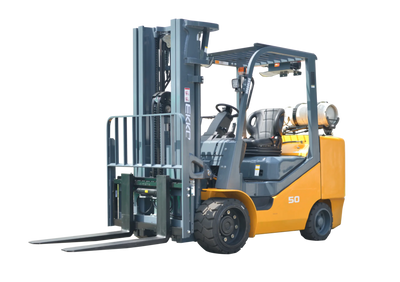

	This itemEK40TLP$43,889.05	EK50LP$59,849.05	EK35TLP$35,909.05	EK30SLP$31,919.05
Capacity	8,500 lb	10,000 lb	7,000 lb	6,000 lb
Lift	185″	185″	185″	189″
Power	LPG	LPG	LPG	LPG
Tires	Solid pneumatic	Cushion	Solid pneumatic	Cushion
Shipping	Free	Free	Free	Free
	You're viewing this	View details	View details	View details

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EK40TLP.

Still unsure? Call (844) 455-4327 or email support@equipmentnation.com. Real people, Mon–Fri.

How does the EK40TLP compare with the EK35TLP?

Both lift to 185" with 37.9" of free lift on solid pneumatic tires, with the same engine options, side shift and 4-way valve. The EK40TLP is rated for 8,500 lb versus 7,000 lb, on a 70.8" wheelbase and 52.9" width. Choose it when regular loads approach or exceed 7,000 lb.

What engine does the EK40TLP use?

It uses a Kubota or PSI 2.4L engine running on liquid propane, rated 63 HP at 2,700 rpm. The engine is Tier 4 EPA compliant and meets CARB regulations, and the optimized hydraulic system is designed for lower fuel consumption. Propane tanks swap quickly between shifts.

Can I add attachments to the EK40TLP?

Yes. Cascade side shift is standard, and a Shimadzu 4-way valve comes pre-plumbed, which gives you a fourth hydraulic function for an attachment. Call (888) 378-6244 to discuss clamps, fork positioners or other options for your loads before you order.

Where does the EK40TLP work best?

Its solid pneumatic tires and propane engine are built for outdoor yards, gravel, asphalt and uneven concrete, and the tires resist punctures from debris. For heavier loads on smooth surfaces, ask about the 10,000 lb EK50LP on pattern cushion tires. We can help you compare.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $150). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.

CUSTOMER REVIEWS

OWNERS ON THE EK40TLP.

No reviews yet. Customer reviews will appear here as they come in.

Questions before you buy? Call (844) 455-4327.

Own the EK40TLP? Be the first to review it.

How does it handle your loads and lift heights?
How does the battery hold up over a full shift?
How was ordering, delivery and setup?
