EKKO · EOP22 Series

About the EOP22 Series

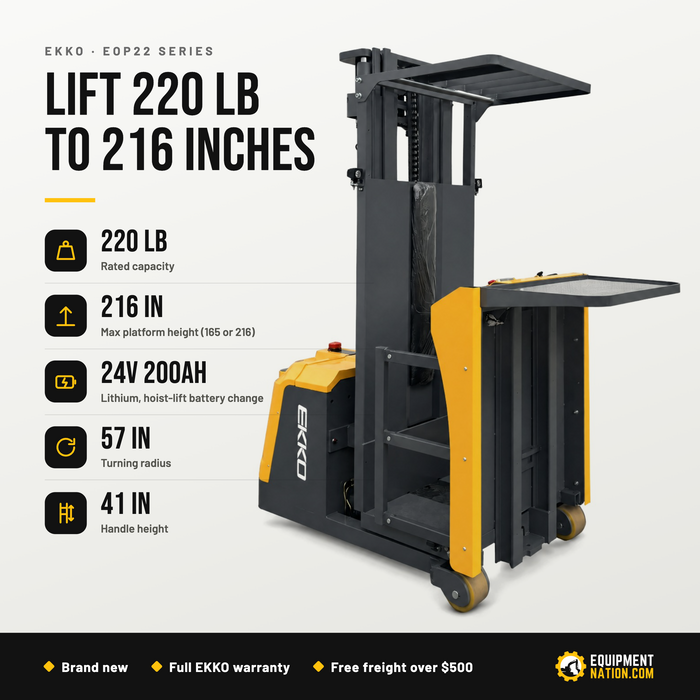

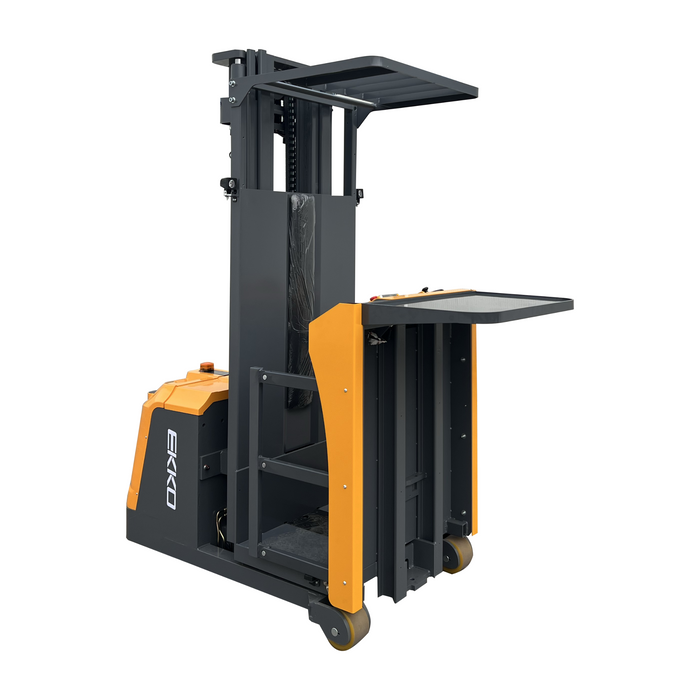

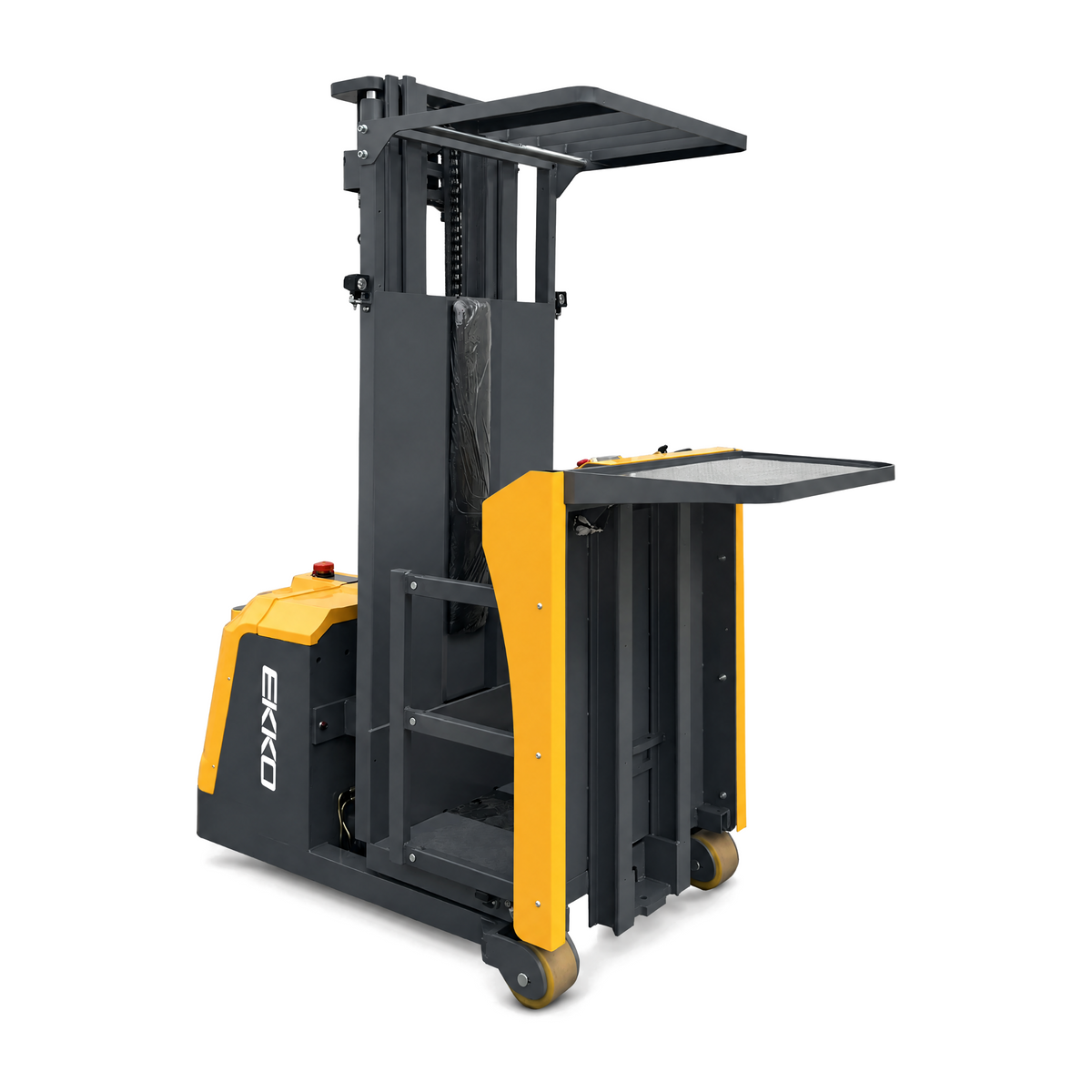

The EKKO EOP22 Series is a stand-on lithium order picker for item and carton picking. The operator rides a 33" wide platform up to 165" or 216" and brings up to 220 lb of goods down from upper shelving, with no ladders or rolling stairs.

A 24V/200Ah lithium battery powers a 1.5 kW AC drive motor and 3 kW lift motor, with a Curtis controller, electric power steering, a 76" overhead guard and a 57" turning radius.

From the manufacturer

The EKKO EOP22 Series Order Picker is designed with one sole purpose: to efficiently pick your orders from racking and storage facilities, manufacturing floors and warehouses.

Constructed with high-quality steel and durable components, it is built to withstand heavy usage, impacts and directional changes, delivering dependable, consistent results in industrial environments.

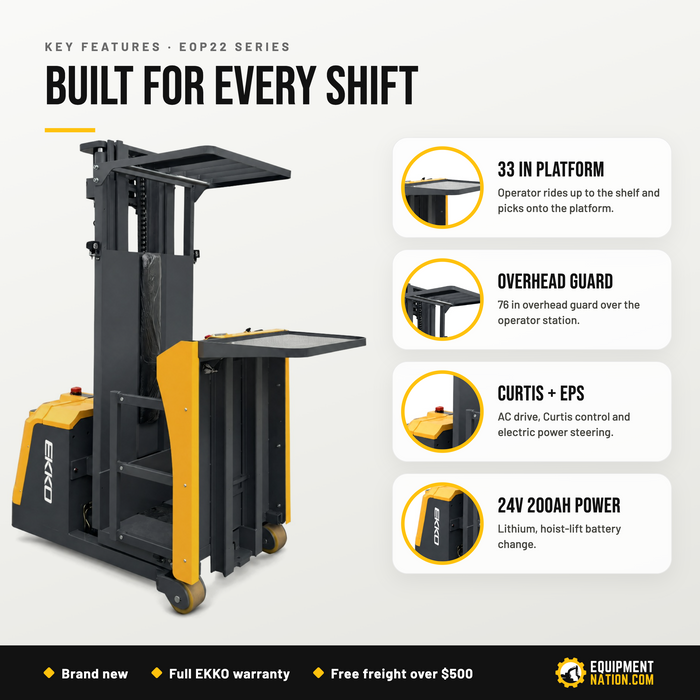

Highlights

220 lb rated capacity at a 16" load center
Maximum platform height of 165" or 216"
33" wide operator platform
24V/200Ah lithium battery with hoist-lift battery change
1.5 kW AC drive motor and 3 kW lift motor
Curtis controller and electric power steering (EPS)
76" overhead guard height; 98" overall length
57" turning radius
Electromagnetic brake and polyurethane wheels
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Rated capacity	220 lb
Load center	16 in
Max platform height	165 / 216 in
Platform width	33 in

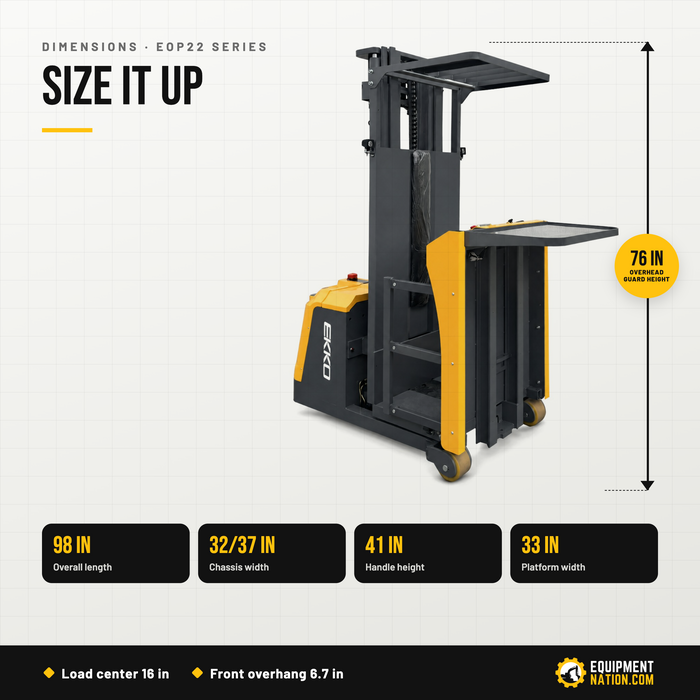

Dimensions

Overall length	98 in
Chassis width	32 / 37 in
Overhead guard height	76 in
Handle height	41 in
Cabin ground clearance	87 in
Ground clearance at wheelbase center	3 in
Front overhang	6.7 in
Turning radius	57 in

Power & drive

Battery	24V / 200Ah lithium
Battery change	Hoist lift
Drive motor	1.5 kW, AC control
Lift motor	3 kW
Travel speed (4 gears)	3.10 / 1.55 / 0.75 / 0.37 mph
Max gradeability (loaded/unloaded)	0%
Steering	Electric power steering
Brake	Electromagnetic
Controller	Curtis

General

Model	EOP22-165Li / EOP22-216Li
Operation	Stand-on
Wheels	Polyurethane (drive and load)
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $100. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EOP22 Series:

3 yearsFrame, mast and forks
1 yearTransmission, drive and lift motors, controllers, charger, hydraulic pump, sensors
Up to 5 yearsLithium battery on EKKO's designated lithium models (1 year on other batteries)
6 monthsLabor on specified models, with EKKO's prior approval
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (888) 378-6244 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(888) 378-6244 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (888) 378-6244 or email support@equipmentnation.com.

LITHIUM ITEM-PICKING ORDER PICKER · EOP22 Series

ITEM PICKING UP TO 216"

The EKKO EOP22 Series lithium order picker carries 220 lb on a 33" wide platform, with maximum platform heights of 165" or 216" and a 24V/200Ah lithium battery.

Capacity220 lbPlatform height165–216″BatteryLithium 24V/200Ah

220 lbCapacity

165–216″Platform height

Lithium 24V/200AhBattery

57″Turning radius

NewFull manufacturer warranty

BUILT FOR THE JOB

For Cartons, Not Pallets

The EOP22 Series is built for item and carton picking, where the operator rides up to the shelf and brings goods down on the platform instead of on forks. It carries 220 lb on a 33" wide platform, with maximum platform heights of 165" or 216". The operator stands under a 76" overhead guard, and a 1.5 kW AC drive motor, 3 kW lift motor, Curtis controller and electric power steering run on a 24V/200Ah lithium battery. A 98" length and 57" turning radius keep it nimble in shelving aisles. For picking full pallets, step up to the 1,500 lb EOP150 Series.

See full specifications

WHY THE EOP22 SERIES

ENGINEERED WHERE IT COUNTS.

220 lb, Two Heights

Rated for 220 lb at a 16" load center, with maximum platform heights of 165" or 216". Enough for cartons, totes and small parts picked from upper shelving.

24V/200Ah Lithium Power

A 24V/200Ah lithium battery runs a 1.5 kW AC drive motor and a 3 kW lift motor. The battery changes by hoist lift, and lithium means no battery watering routine.

Compact Chassis

A 98" overall length, 32"/37" chassis width and 57" turning radius let the EOP22 move through shelving aisles and around end caps with ease.

Steady, Controlled Travel

Four travel speeds from 0.37 to 3.10 mph, electric power steering, a Curtis controller and an electromagnetic brake keep moves precise. Polyurethane wheels protect finished floors.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

E-Commerce Fulfillment

Pick individual items and cartons from tall shelving in fulfillment centers without ladders or rolling stairs.

Parts Counters

Retrieve parts and small components from high storeroom shelving in dealerships and maintenance departments.

Retail Back Rooms

Reach high back-stock in retail stockrooms and bring cartons down safely on the platform.

Records Storage

Pull boxes and files from tall archive shelving in records centers and document storage rooms.

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EOP22 SERIES.

Still unsure? Call (888) 378-6244 or email support@equipmentnation.com. Real people, Mon–Fri.

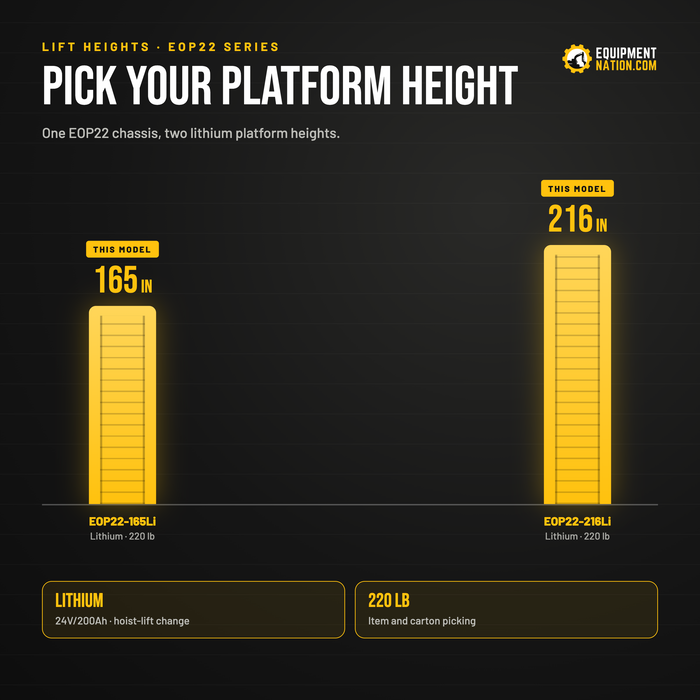

Which heights does the EOP22 Series come in?

Two: the EOP22-165Li and EOP22-216Li, with maximum platform heights of 165" and 216". Both carry 220 lb and run on a 24V/200Ah lithium battery. Call (888) 378-6244 with your top shelf height and we will confirm which one fits.

What can the EOP22 carry?

Rated capacity is 220 lb at a 16" load center on a 33" wide platform. It is made for cartons, totes and small parts, not full pallets. For pallet-level picking, the EOP150 Series is rated for 1,500 lb.

How much room does the EOP22 need?

The EOP22 is 98" long with a 32"/37" chassis width and a 57" turning radius. The overhead guard stands 76" high and the handle 41". Measure your aisles and doorways, or call (888) 378-6244 and we will check the fit.

Can the EOP22 drive on ramps?

No. EKKO rates maximum gradeability at 0% loaded and unloaded, so the EOP22 is meant for level indoor floors. Keep picking routes off ramps and dock plates.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $100). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.
