EKKO EOP70 Order Picker 2200lb. Capacity, 196" Lift

EKKOModel EOP70Brand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $1,649.95

$32,999.00

$32,999.00 - $32,999.00

$32,999.00

$31,349.05

$31,349.05 - $31,349.05

$31,349.05

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EOP70

About the EOP70

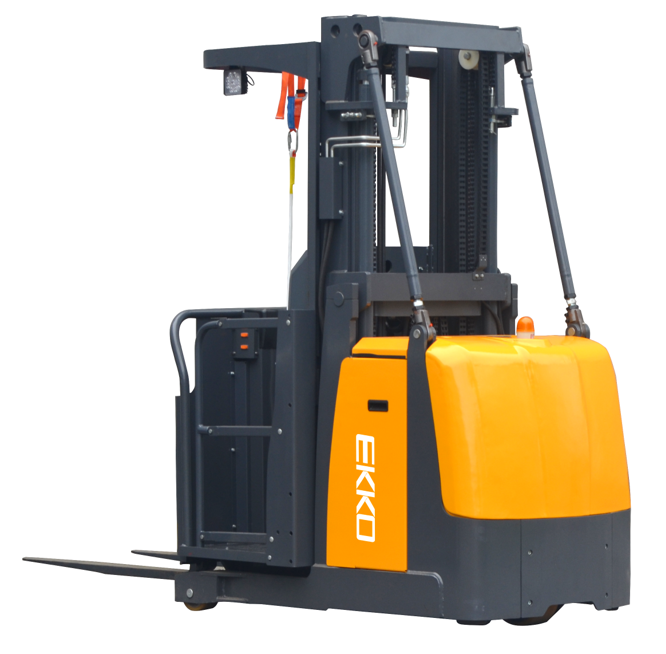

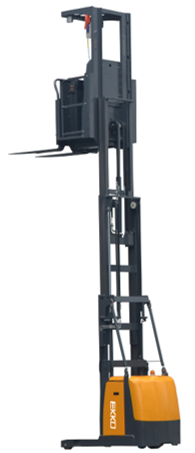

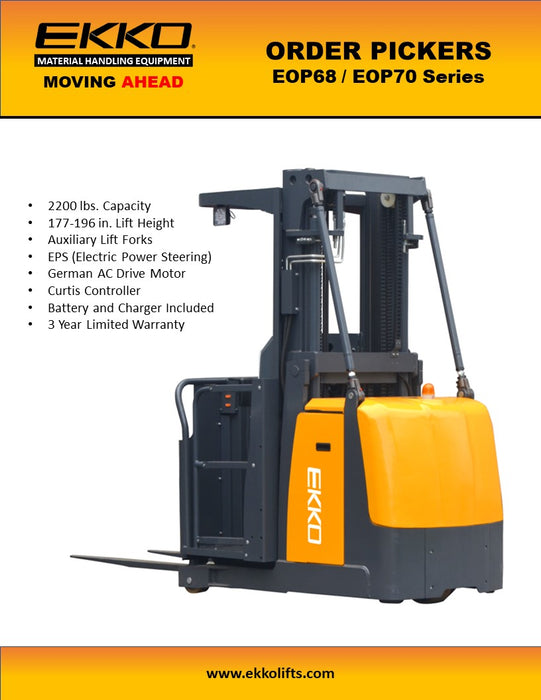

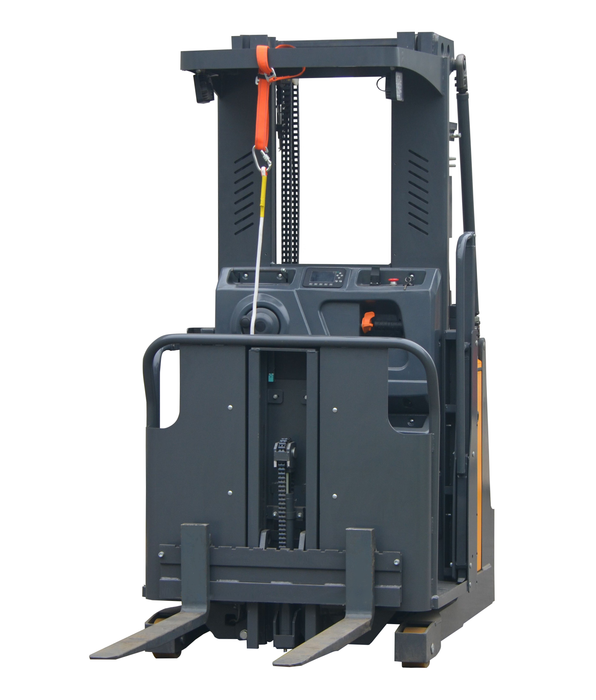

The EKKO EOP70 is an electric mid-level order picker built to pick orders from racking at height. The operator stands on the platform and rides up with the load: the triple mast lifts 2,200 lb to 196" (16.33 ft), and an auxiliary lift adds 30.71" for 227" of total lift.

Adjustable forks and an auxiliary fork hold the order pallet, while a German AC drive motor, Curtis controller and electronic power steering make travel between pick faces smooth. The 24V/350Ah battery and 24V/50A charger are included.

From the manufacturer

The EKKO EOP70 Electric Mid-Level Order Picker is designed for one purpose: picking your orders from racking and storage rooms, manufacturing floors and warehouses.

It is made from high-quality steel and components with durable drives built to withstand daily use, impacts and directional changes, and every unit is robotically welded.

Highlights

2,200 lb capacity at a 19.68" load center
196" lift height on a triple mast; 227" total with auxiliary lift
206.87" platform lifting height and 258" picking height
Adjustable forks plus an auxiliary fork
German AC drive motor (3 kW) and 6 kW lift motor
Curtis controller and electronic power steering (EPS)
24V/350Ah battery and 24V/50A charger included
61.81" turning radius; 39.37" overall width
Polyurethane wheels and electromagnetic brake
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Load capacity	2,200 lb
Load center	19.68 in
Lift height	196 in
Additional (auxiliary) lift	30.71 in
Total lift height	227 in
Platform lifting height	206.87 in
Picking height	258 in
Mast	Triple

Dimensions

Lowered mast height	93.11 in
Extended mast height	285 in
Overhead guard (cabin) height	89.48 in
Platform step height	10.67 in
Overall length	111.41 in
Body length	69.29 in
Overall width	39.37 in
Wheelbase	53.46 in
Track width	37.8 in
Turning radius	61.81 in
Aisle width, 39.37 × 47.24 in pallet crossways	122.24 in
Aisle width, 31.5 × 47.24 in pallet lengthways	126.77 in
Min. ground clearance	1.97 in

Power & drive

Battery	24V / 350Ah
Charger	24V / 50A
Drive motor	3 kW German AC
Lift motor	6 kW
Controller	Curtis
Steering	Electronic power steering (EPS)
Travel speed	5 mph (8 km/h)
Gradeability (laden/unladen)	3% / 6%
Brake	Electromagnetic

Forks & chassis

Fork size (T × W × L)	1.37 × 3.93 × 42.13 in
Outside fork width	34.33 in
Fork carriage width	35.83 in
Lowered fork height	1.97 in
Forks	Adjustable, plus auxiliary fork
Wheels	Polyurethane; drive 9.84 × 5 in, load 5.9 × 3.23 in

General

Model	EOP70
Operation	Stand-on
Noise level	≤75 dB(A)
Service weight (with battery)	6,600 lb
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $150. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EOP70:

3 yearsFrame, mast and forks
1 yearTransmission, drive and lift motors, controllers, charger, hydraulic pump, sensors
Up to 5 yearsLithium battery on EKKO's designated lithium models (1 year on other batteries)
6 monthsLabor on specified models, with EKKO's prior approval
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (844) 455-4327 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(844) 455-4327 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (844) 455-4327 or email support@equipmentnation.com.

ELECTRIC MID-LEVEL ORDER PICKER · EOP70

PICK AT 196" WITH 2,200 LB

The EKKO EOP70 electric mid-level order picker lifts 2,200 lb to 196" on a triple mast, with an auxiliary lift to 227", EPS steering, a German AC drive motor and a 24V/350Ah battery.

Capacity2,200 lbLift196″Battery24V/350Ah

2,200 lbCapacity

196″Lift

24V/350AhBattery

61.81″Turning radius

NewFull manufacturer warranty

BUILT FOR THE JOB

Built Only to Pick Orders

The EOP70 is built for one job: picking orders from racking at height. It suits distribution centers, parts warehouses and manufacturing stores where operators build orders from multiple locations. The operator stands on the platform and rides up with the load; the triple mast lifts 2,200 lb to 196", and an auxiliary lift adds 30.71" for a total of 227". That is enough for a pallet of picked goods, far beyond the 440 lb EOPS20. Adjustable forks and an auxiliary fork hold the order pallet. A German AC drive motor, Curtis controller and EPS steering make travel between pick faces smooth, and a 24V/350Ah battery and 24V/50A charger are included.

See full specifications

WHY THE EOP70

ENGINEERED WHERE IT COUNTS.

2,200 lb to 196"

The triple mast lifts 2,200 lb at a 19.68" load center to 196", and the auxiliary lift adds 30.71" for 227" total. Adjustable forks and an auxiliary fork hold the pallet the operator is building.

24V/350Ah Battery Included

The included 24V/350Ah battery and 24V/50A charger power a 3 kW German AC drive motor and 6 kW lift motor through a Curtis Instrument controller for smooth travel between pick faces.

Electronic Power Steering

Electronic power steering keeps steering light as operators move from aisle to aisle all day. Ergonomic handles and controls reduce fatigue during repetitive picking shifts.

Durable Picking Platform

Polyurethane wheels roll quietly on warehouse floors. Robotically welded steel construction and durable drives are built to handle frequent use, impacts and constant direction changes.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Case Picking

Build mixed-case pallets from multiple racking levels up to 196" in distribution centers and wholesale warehouses.

Parts Distribution

Pick parts and components from upper rack locations and build orders on the forks for shipping.

Retail Replenishment

Build store replenishment orders from high storage locations in busy regional retail distribution centers each day.

Manufacturing Stores

Kit components from tall storeroom racking and deliver complete kits to production lines on schedule.

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

	This itemEOP70$31,349.05	EOPS20 Series$6,079.05
Capacity	2,200 lb	440 lb
Lift	196″	130–216″
Battery	24V/350Ah	Lead-acid 12V/120Ah
Turning radius	61.81″	—
Shipping	Free	Free
	You're viewing this	View details

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EOP70.

Still unsure? Call (844) 455-4327 or email support@equipmentnation.com. Real people, Mon–Fri.

How is the EOP70 different from the EOPS20?

The EOP70 is a fully electric mid-level order picker rated for 2,200 lb at 196". It uses a triple mast, EPS steering, a German AC drive motor and a 24V/350Ah battery. The EOPS20 is a semi-electric picker rated for 440 lb, with heights from 130" to 216".

How high can the EOP70 operator pick?

EKKO lists a 196" lifting height (227" total with the auxiliary lift), a 206.87" platform lifting height and a 258" picking height. Operators should ride with a harness and follow your site's fall-protection rules. Send your top pick-face height to (888) 378-6244 and we will confirm the fit.

What is the EOP70's auxiliary fork for?

The auxiliary fork, along with the adjustable forks, helps hold the pallet or container the operator builds orders onto. That lets pickers stack goods directly onto the order as they move between rack locations, instead of making extra trips. Capacity is 2,200 lb.

What battery and charger come with the EOP70?

It includes a 24V/350Ah battery and a 24V/50A charger. They power a 3 kW German AC drive motor and a 6 kW lift motor through a Curtis Instrument controller. Service weight with the battery is 6,600 lb, so check floor and elevator ratings along your route.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $150). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.
