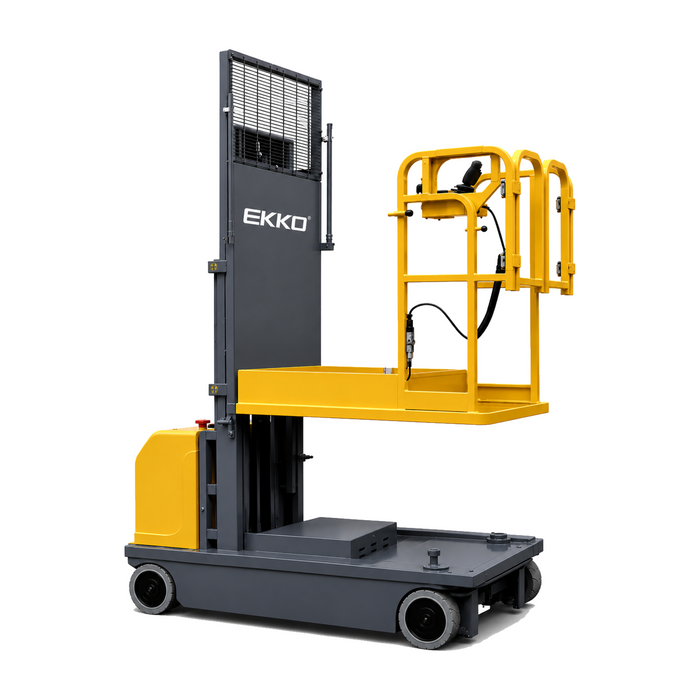

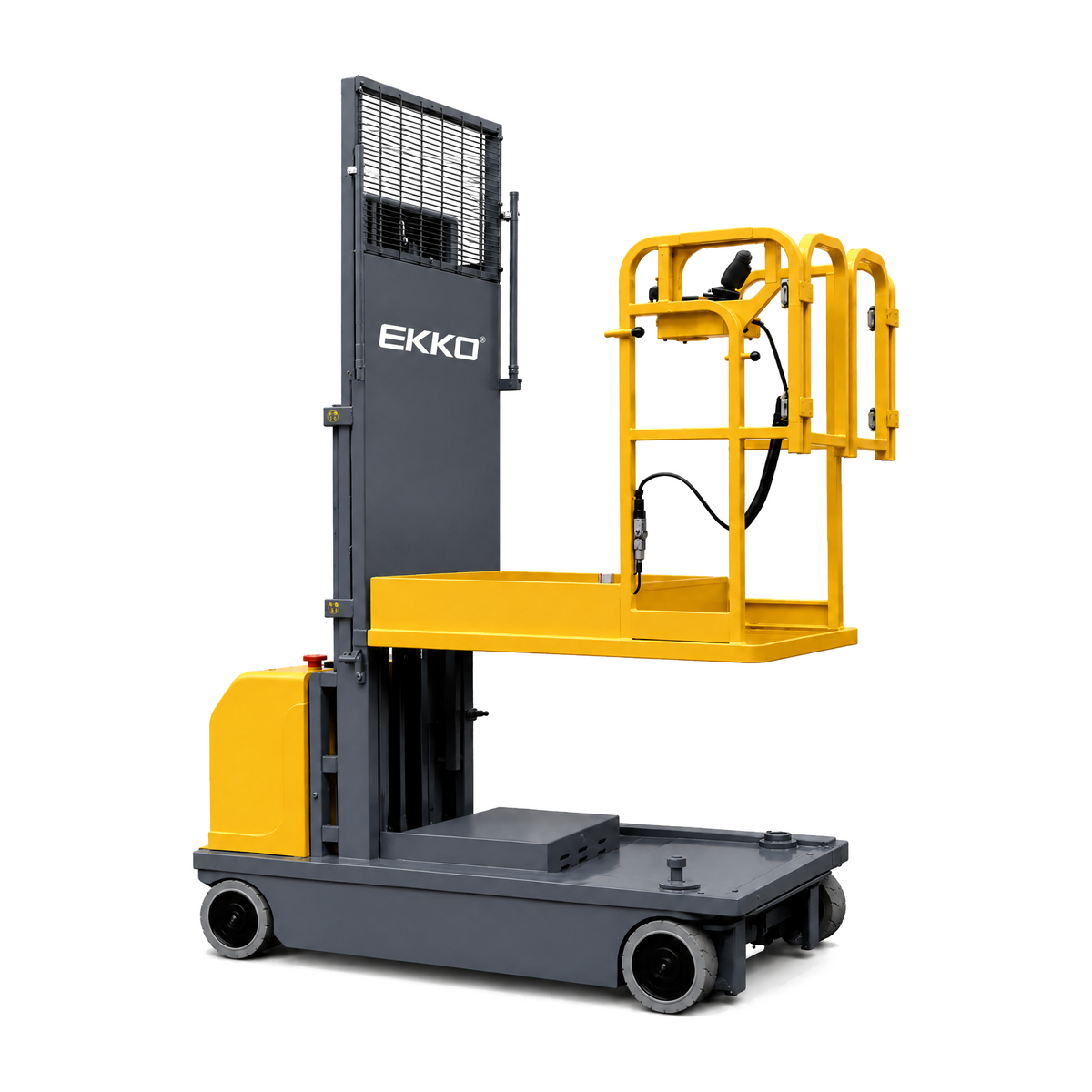

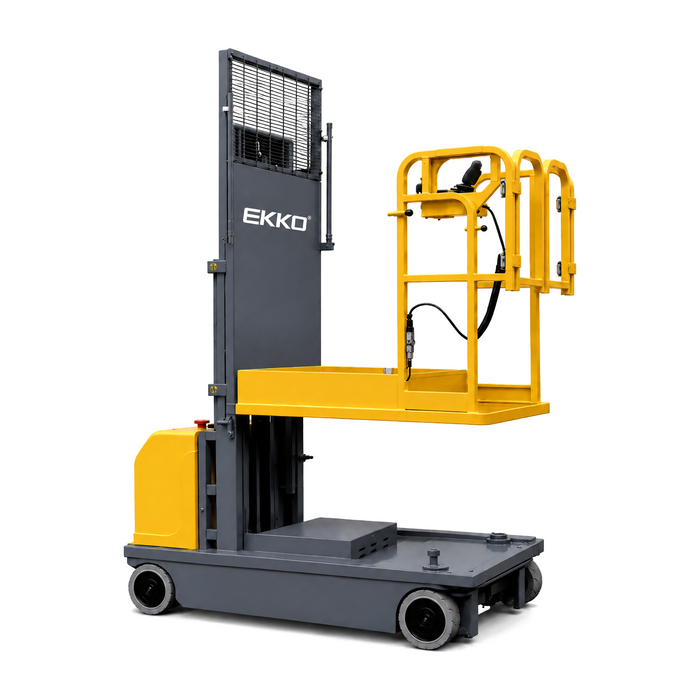

EKKO EOPF30 Series Full Electric Order Picker 660lb

EKKOModel EOPF30 SeriesBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $649.95

$11,999.00

$11,999.00 - $12,999.00

$11,999.00

$11,399.05

$11,399.05 - $12,349.05

$11,399.05

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Quantity

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EOPF30 Series

About the EOPF30 Series

The EKKO EOPF30 Series is a compact, full electric order picker for picking and stocking in narrow aisles. The operator stands on a 24" × 28" platform behind a self-closing gate and raises up to 660 lb to 118" or 177", from a chassis only 64" long and 30" wide.

Dual drive motors, hydraulic power steering, proportional lift control and automatic braking keep moves smooth, and a 24V/100Ah lead-acid battery with an onboard 24V/15A charger keeps charging simple.

From the manufacturer

The EKKO EOPF30 Series Order Picker is designed with one sole purpose: to efficiently handle order picking and stocking operations across warehouses, manufacturing floors and distribution centers.

Built with high-quality steel and durable components, it is engineered to withstand heavy usage, impacts and directional changes while maintaining smooth lift performance and precise maneuverability. Hydraulic power steering makes control effortless in narrow aisles and high-density storage.

Highlights

660 lb platform capacity
24" × 28" platform with self-closing gate
Dual drive motors and hydraulic power steering
Proportional lift control and automatic braking
Tilt alarm with motion cut-out and emergency lowering
Solid non-marking tires
24V/100Ah lead-acid battery with onboard 24V/15A charger and charge indicator
Compact 64" × 30" chassis
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Platform capacity	660 lb
Raised height	118 / 177 in
Platform size	24 × 28 in

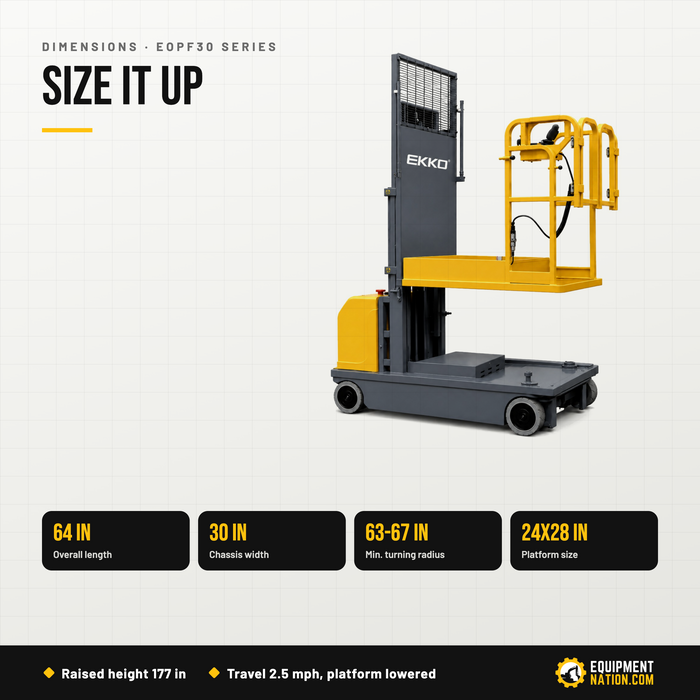

Dimensions

Overall length	64 in
Chassis width	30 in
Min. turning radius	63 / 67 in

Power & drive

Battery	24V / 100Ah lead-acid
Charger	24V / 15A onboard
Drive motors	Dual, 0.4 kW
Lift motor	1.2 kW
Travel speed, platform lowered	2.5 mph
Steering	Hydraulic power steering

Safety

Braking	Automatic braking system
Lift control	Proportional
Emergency lowering	Yes
Gate	Self-closing
Tilt alarm	Yes, with motion cut-out
Battery charge indicator	Yes
Tires	Solid, non-marking

General

Model	EOPF30-118 / EOPF30-177
Operation	Stand-on, full powered
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $100. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EOPF30 Series:

3 yearsFrame, mast and forks
1 yearTransmission, drive and lift motors, controllers, charger, hydraulic pump, sensors
Up to 5 yearsLithium battery on EKKO's designated lithium models (1 year on other batteries)
6 monthsLabor on specified models, with EKKO's prior approval
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (888) 378-6244 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(888) 378-6244 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (888) 378-6244 or email support@equipmentnation.com.

FULL ELECTRIC ORDER PICKER · EOPF30 Series

COMPACT PICKING AT 118" OR 177"

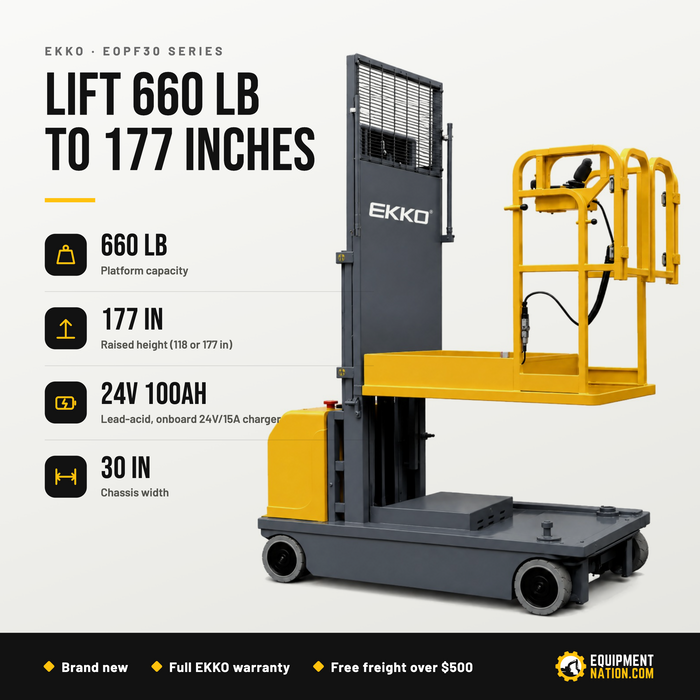

The EKKO EOPF30 Series is a full electric order picker with a 660 lb, 24" × 28" platform, raised heights of 118" or 177" and hydraulic power steering.

Capacity660 lbHeight118–177″BatteryLead-acid 24V/100Ah

660 lbCapacity

118–177″Height

Lead-acid 24V/100AhBattery

30″Width

NewFull manufacturer warranty

BUILT FOR THE JOB

Small Footprint, Safe Height

The EOPF30 Series is built for order picking and stocking where a full-size truck is too big. The chassis is just 64" long and 30" wide, with a minimum turning radius of 63" or 67", so it drives between shelving and around end caps. The operator stands on a 24" × 28" platform behind a self-closing gate and raises up to 660 lb to 118" or 177". Dual drive motors, hydraulic power steering, proportional lift control and automatic braking keep moves smooth, and a tilt alarm with motion cut-out and emergency lowering add protection. A 24V/100Ah battery with an onboard charger keeps charging simple.

See full specifications

WHY THE EOPF30 SERIES

ENGINEERED WHERE IT COUNTS.

660 lb Platform

The 24" × 28" platform carries 660 lb and raises to 118" or 177" depending on model. Proportional lift control places the operator precisely at the shelf.

Onboard 24V/15A Charger

A 24V/100Ah lead-acid battery powers dual 0.4 kW drive motors and a 1.2 kW lift motor. The onboard 24V/15A charger and charge indicator make top-ups simple.

64" × 30" Chassis

A 64" length, 30" width and minimum turning radius of 63" (118) or 67" (177) let it work narrow aisles and crowded stockrooms. Travel speed is 2.5 mph with the platform lowered.

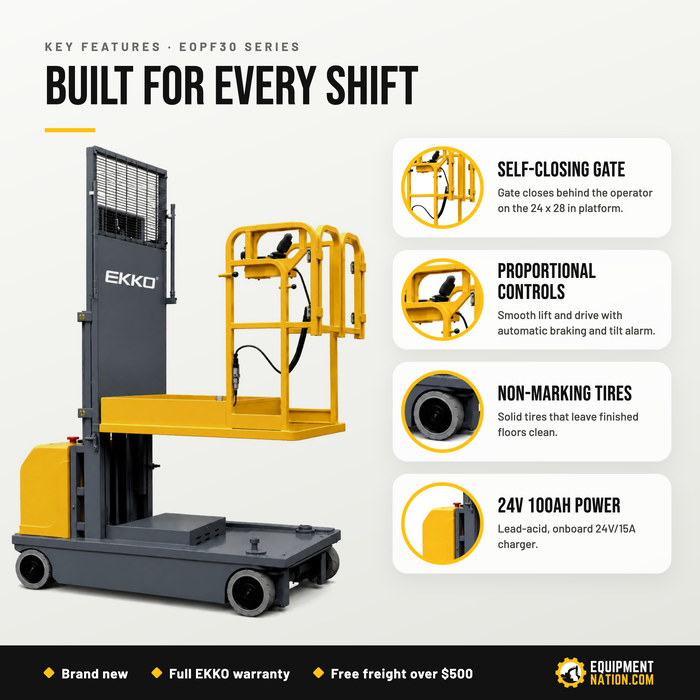

Layered Safety

A self-closing gate, tilt alarm with motion cut-out, automatic braking and an emergency lowering system protect the operator. Solid non-marking tires keep finished floors clean.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Retail Stocking

Restock high shelving in stores and stockrooms where a larger order picker cannot fit through the aisles.

Parts Rooms

Pick parts from tall shelving in dealerships, maintenance stores and service departments.

E-Commerce Shelving

Pick items and cartons from upper shelving bays in small fulfillment operations without ladders.

Facility Maintenance

Reach overhead storage and fixtures in warehouses and plants from a gated, powered platform.

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EOPF30 SERIES.

Still unsure? Call (888) 378-6244 or email support@equipmentnation.com. Real people, Mon–Fri.

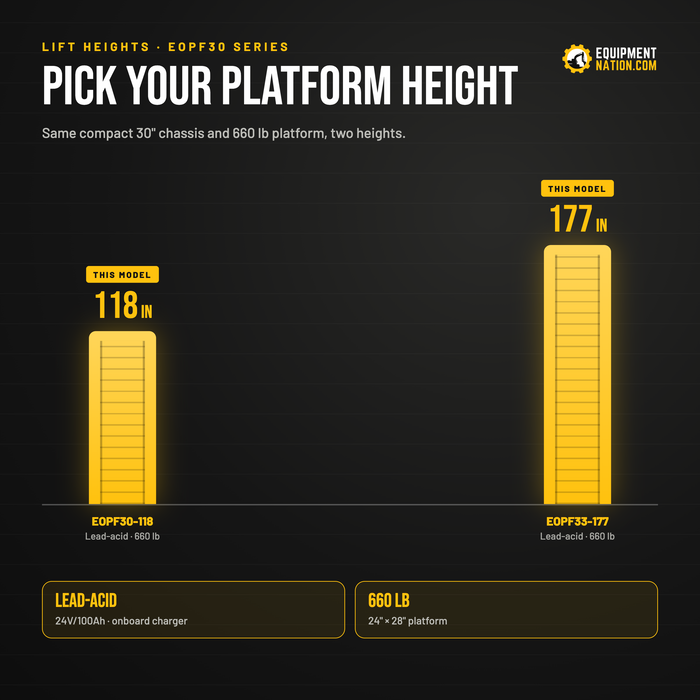

Which heights does the EOPF30 Series come in?

Two raised heights: 118" and 177". Both have a 660 lb, 24" × 28" platform and a 64" × 30" chassis. The 118" model turns in 63" and the 177" model in 67". Call (888) 378-6244 with your top shelf height and we will confirm the right one.

How is the EOPF30 charged?

It has an onboard 24V/15A charger for its 24V/100Ah lead-acid battery, plus a battery charge indicator, so there is no separate charging station to buy or mount. Questions about charging at your site? Call (888) 378-6244.

What safety features does the EOPF30 have?

A self-closing gate, tilt alarm with motion cut-out, automatic braking, proportional lift control and an emergency lowering system. Operators should follow your site's work-at-height rules.

How fast does the EOPF30 travel?

EKKO lists a travel speed of 2.5 mph with the platform lowered. Dual drive motors and hydraulic power steering keep handling light in narrow aisles. Questions about your layout? Call (888) 378-6244.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $100). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.

CUSTOMER REVIEWS

OWNERS ON THE EOPF30 SERIES.

No reviews yet. Customer reviews will appear here as they come in.

Questions before you buy? Call (888) 378-6244.

Own the EOPF30 Series? Be the first to review it.

How does it handle your loads and lift heights?
How does the battery hold up over a full shift?
How was ordering, delivery and setup?
