EKKO EOPH15 Series Full Electric Order Picker 330lb

EKKOModel EOPH15 SeriesBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $899.95

$14,999.00

$14,999.00 - $17,999.00

$14,999.00

$14,249.05

$14,249.05 - $17,099.05

$14,249.05

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Quantity

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EOPH15 Series

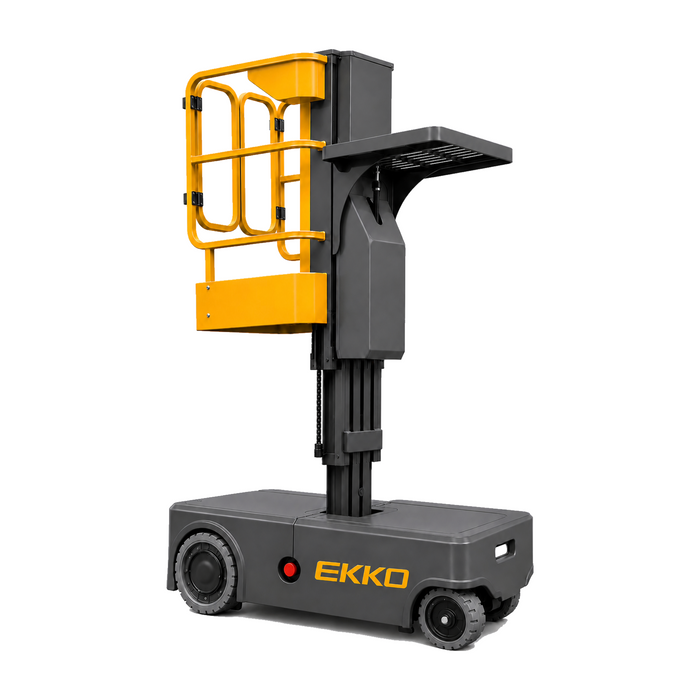

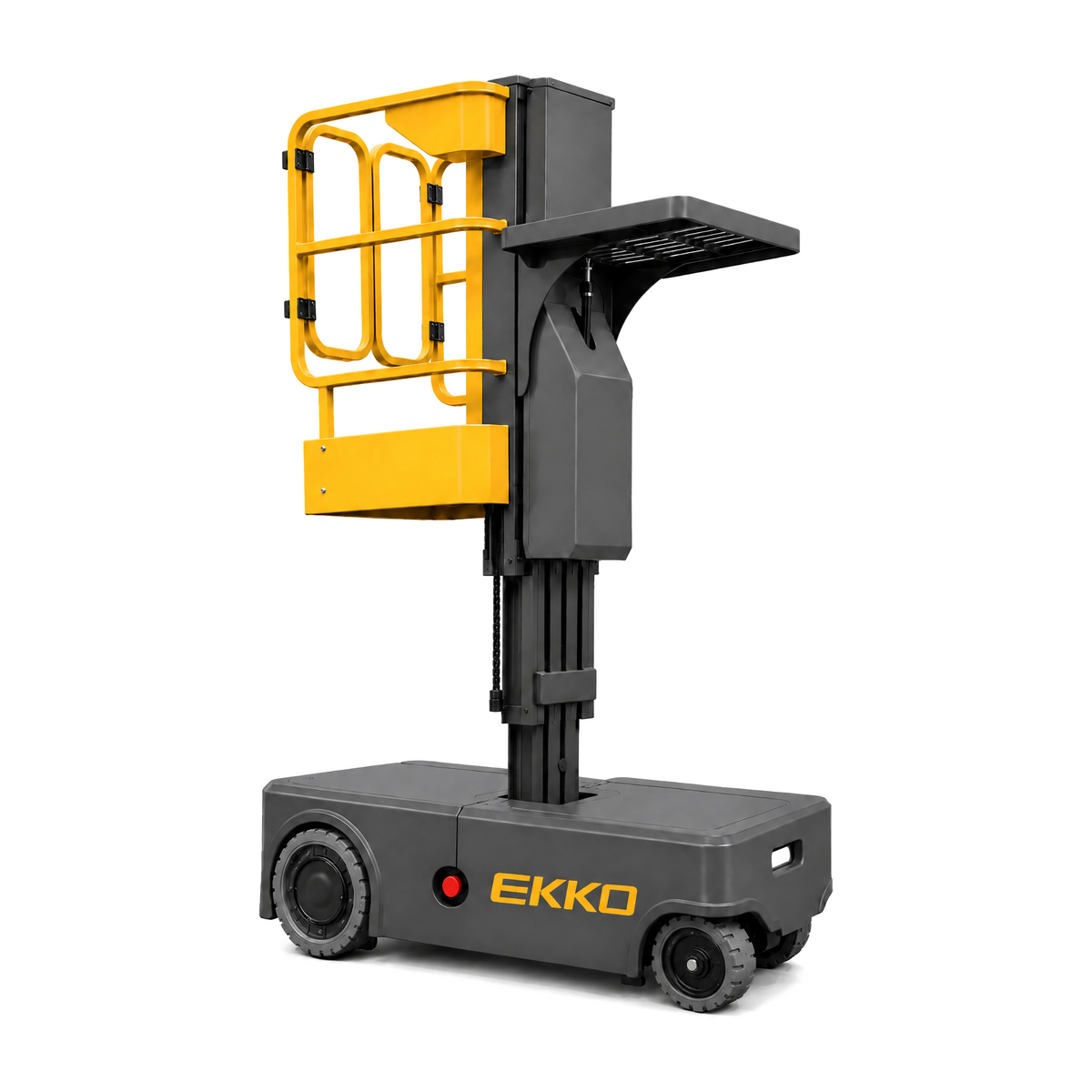

About the EOPH15 Series

The EKKO EOPH15 Series is a full electric order picker for safe, precise picking in warehouses, distribution centers and retail. The operator stands on a 27" × 28" platform with a self-locking gate and rises to 118", 157" or 196", with a 22" × 29" extension deck for picked goods and 330 lb of capacity.

Proportional lift and drive control, load sensing and a tilt sensor with alarm keep work at height controlled, and a 24V/100Ah lead-acid battery with an onboard 24V/15A charger keeps charging simple.

From the manufacturer

The EKKO EOPH15 Series Electric Order Picker is designed for safe, efficient and precise order picking across warehouses, distribution centers and retail environments.

With its compact footprint, smooth AC drive system and sturdy steel construction, it delivers maneuverability and reliability, built for dependable operation in demanding industrial settings.

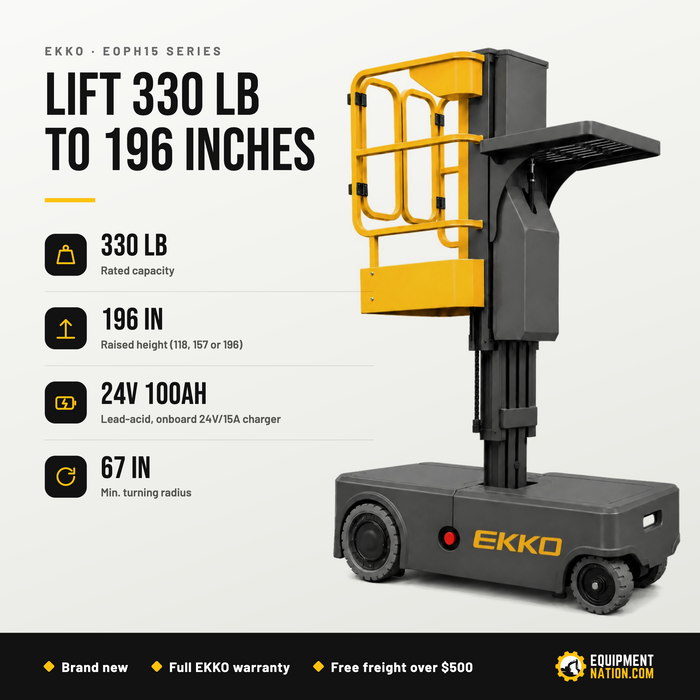

Highlights

330 lb capacity
Raised heights of 118", 157" or 196"
27" × 28" platform plus 22" × 29" extension deck
Proportional lift and drive control
Load sensing, tilt sensor with alarm and fault diagnosis
Platform self-lock gate, emergency stop and emergency lowering
Non-marking tires
24V/100Ah lead-acid battery with onboard 24V/15A charger
67" minimum turning radius; 30" chassis width
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Capacity	330 lb
Raised height	118 / 157 / 196 in
Platform size	27 × 28 in
Extension deck size	22 × 29 in

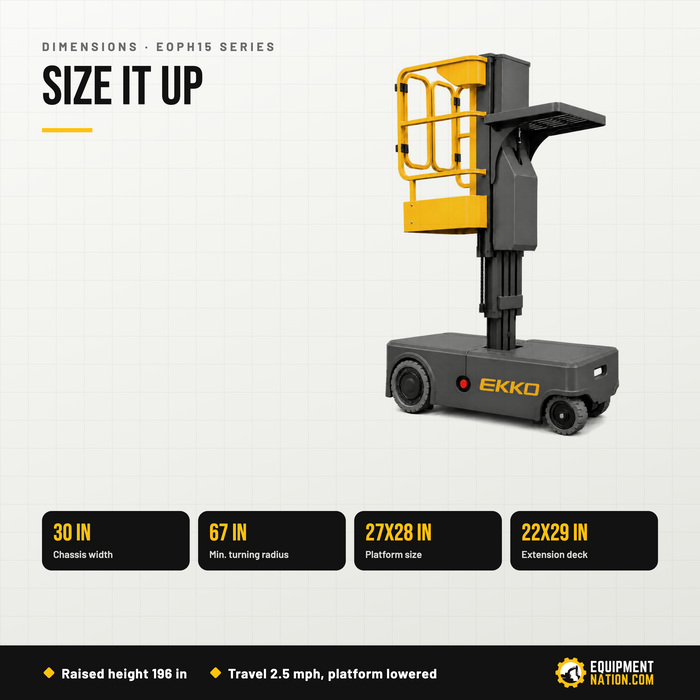

Dimensions

Chassis width	30 in
Min. turning radius	67 in

Power & drive

Battery	24V / 100Ah lead-acid
Charger	24V / 15A onboard
Drive motor	24V / 0.5 HP
Lift motor	24V / 1.0 HP
Travel speed, platform lowered	2.5 mph
Control	Proportional lift and drive

Safety

Load sensing	Yes
Tilt sensor	Yes, with alarm
Fault diagnosis	Yes
Gate	Platform self-lock
Emergency stop	Yes
Emergency lowering	Yes
Tires	Non-marking

General

Model	EOPH15-118 / EOPH15-157 / EOPH15-196
Operation	Stand-on, full powered
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $100. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EOPH15 Series:

3 yearsFrame, mast and forks
1 yearTransmission, drive and lift motors, controllers, charger, hydraulic pump, sensors
Up to 5 yearsLithium battery on EKKO's designated lithium models (1 year on other batteries)
6 monthsLabor on specified models, with EKKO's prior approval
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (888) 378-6244 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(888) 378-6244 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (888) 378-6244 or email support@equipmentnation.com.

FULL ELECTRIC ORDER PICKER · EOPH15 Series

PICK TO 196" WITH ROOM TO STAGE

The EKKO EOPH15 Series full electric order picker carries 330 lb with raised heights of 118", 157" or 196", a 27" × 28" platform and a 22" × 29" extension deck.

Capacity330 lbHeight118–196″BatteryLead-acid 24V/100Ah

330 lbCapacity

118–196″Height

Lead-acid 24V/100AhBattery

67″Turning radius

NewFull manufacturer warranty

BUILT FOR THE JOB

A Platform and a Place for Goods

The EOPH15 Series is built for safe, precise order picking in warehouses, distribution centers and retail. The operator stands on a 27" × 28" platform with a self-locking gate, and a 22" × 29" extension deck gives picked goods their own space. Choose 118", 157" or 196" of raised height to match your shelving. Proportional lift and drive control, load sensing, a tilt sensor with alarm, fault diagnosis and an emergency stop keep work at height controlled. The chassis is 30" wide with a 67" minimum turning radius, and a 24V/100Ah battery with an onboard 24V/15A charger keeps charging simple.

See full specifications

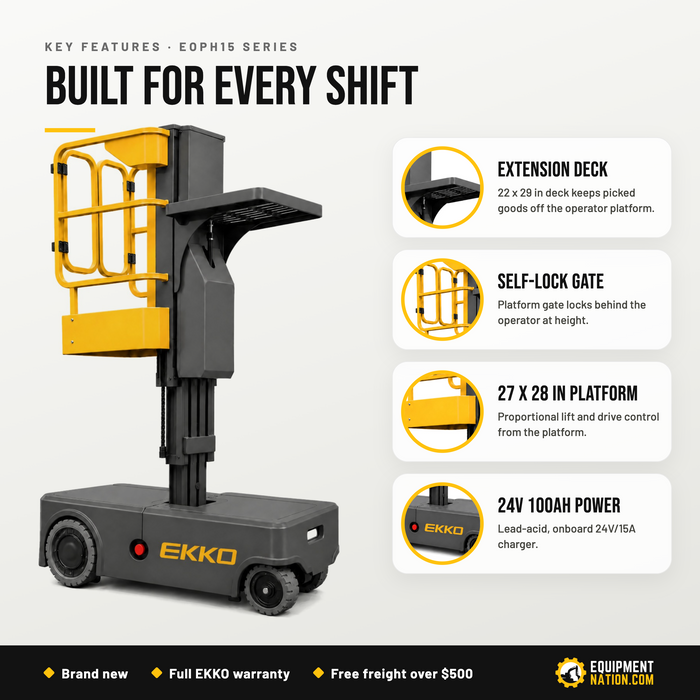

WHY THE EOPH15 SERIES

ENGINEERED WHERE IT COUNTS.

330 lb, Three Heights

Rated for 330 lb, with raised heights of 118", 157" or 196". Proportional lift control places the operator precisely at the pick face.

Platform Plus Extension Deck

A 27" × 28" operator platform and a 22" × 29" extension deck keep the operator and the picked goods in separate spaces, so orders build neatly as you go.

Onboard Charging

A 24V/100Ah lead-acid battery powers a 0.5 HP drive motor and 1.0 HP lift motor. The onboard 24V/15A charger means no separate charging station.

Sensors and Safeguards

Load sensing, a tilt sensor with alarm, fault diagnosis, a self-locking platform gate, emergency stop and emergency lowering protect the operator at height. Non-marking tires protect floors.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Retail Distribution

Pick store orders from upper shelving in regional distribution centers and stage them on the extension deck.

E-Commerce Picking

Pick items and cartons from tall shelving bays in fulfillment operations without ladders.

Parts Warehouses

Retrieve parts and components from high storeroom shelving in dealerships and industrial supply.

Stockroom Restocking

Carry cartons up on the extension deck and restock high back-room shelving in retail stores.

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EOPH15 SERIES.

Still unsure? Call (888) 378-6244 or email support@equipmentnation.com. Real people, Mon–Fri.

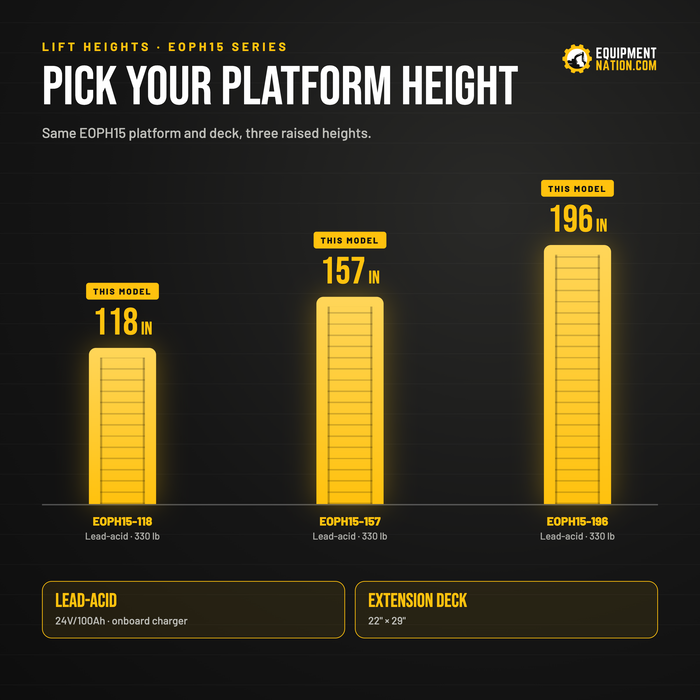

Which heights does the EOPH15 Series come in?

Three raised heights: 118" (EOPH15-118), 157" (EOPH15-157) and 196" (EOPH15-196). All carry 330 lb with the same platform, extension deck and 67" minimum turning radius. Call (888) 378-6244 with your top shelf height and we will confirm the right one.

What is the extension deck for?

The 22" × 29" extension deck sits alongside the 27" × 28" operator platform, giving picked cartons and totes their own space. The operator can pick and stage goods at height without crowding the standing area. Total capacity is 330 lb.

What safety features does the EOPH15 have?

Load sensing, a tilt sensor with alarm, fault diagnosis, a self-locking platform gate, an emergency stop button and an emergency lowering system. Operators should follow your site's work-at-height rules.

How is the EOPH15 charged?

It has an onboard 24V/15A charger for its 24V/100Ah lead-acid battery, so there is no separate charging station to buy or mount. Travel speed is 2.5 mph with the platform lowered. Questions about your site? Call (888) 378-6244.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $100). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.
