EKKO EB14C-98Li Electric Walkie Stacker – 3,000 lb Capacity, 98" Lift, 75.2" Mast, Adjustable Forks, 24V Lithium Battery

EKKOModel EB14C-98LiBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $294.40

$5,888.00

$5,888.00 - $5,888.00

$5,888.00

$5,593.60

$5,593.60 - $5,593.60

$5,593.60

Configure your EB14C

Compare models

Lift height: 98″

98″ Selected 118″ +$294.50 138″ +$736.25 145″ +$1,472.50

Battery: Lithium 24V

Lead-acid 24V 118″ only Lithium 24V Selected

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EB14C-98Li

About the EB14C-98Li

The EKKO EB14C-98Li lithium walkie stacker carries the EB14C family's 3,000 lb capacity in its most compact package. A 75.2" lowered mast gets it through low openings, and a 98" lift covers dock staging and lower beam levels.

Powered by a 24V/50Ah lithium battery with an internal 24V/20A charger, this electric straddle stacker provides smooth travel and lift. A dual damping drive system improves handling and operator comfort.

From the manufacturer

The EKKO EB14C-98Li Lithium Straddle Stacker is designed to combine the versatility of a forklift, reach truck and walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high-quality steel and components with durable drives built for daily use, impacts and directional changes. A dual damping drive system enhances handling performance, operating efficiency and operator comfort.

Highlights

Load capacity 3,000 lbs with a 20" load center
98" maximum lift height for dock staging and lower rack levels
Adjustable forks 8.7"–32.1" for different pallet sizes
Adjustable legs 35.4"–51.2" for added stability
75.2" lowered mast height
Curtis controller and dual damping drive for smooth handling
24V/50Ah lithium battery with internal 24V/20A charger
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Load capacity	3,000 lb
Max lift height	98 in
Load center	20 in

Dimensions

Turning radius	57.5 in
Overall length	73.7 in
Max overall width	61 in
Extended mast height	127.6 in
Lowered mast height	75.2 in

Power & drive

Battery	24V / 50Ah Lithium
Charger	24V / 20A
Controller	Curtis
Lift motor	2.2 kW
Drive motor	DC drive motor

Forks & chassis

Fork length	45.3 in
Single fork width	4 in
Adjustable fork width	8.7–32.1 in
Lowered fork height	2.6 in
Adjustable leg width	35.4–51.2 in
Wheels	Polyurethane

General

Model	EB14C-98Li
Service weight	1,410 lb
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $150. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EB14C-98Li:

3 yearsFrame, mast and forks
1 yearDrive and lift motors, controller, hydraulics, charger and battery (lithium or lead-acid)
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (844) 455-4327 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(844) 455-4327 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (844) 455-4327 or email support@equipmentnation.com.

COMPACT LITHIUM WALKIE STACKER · EB14C-98Li

3,000 LB CAPACITY, 75-INCH MAST

The EKKO EB14C-98Li lifts 3,000 lb to 98" with a compact 75.2" lowered mast and a 24V/50Ah lithium battery.

Capacity3,000 lbLift98″BatteryLithium 24V

3,000 lbCapacity

98″Lift

Lithium 24VBattery

NewFull manufacturer warranty

BUILT FOR THE JOB

Heavy capacity, low profile

The EB14C-98Li is the most compact EB14C. It carries the family's 3,000 lb capacity but stands just 75.2" with the mast lowered, 127.6" fully raised, so it moves through low openings and works in rooms where taller stackers cannot. A 98" lift covers ground-to-rack transfers, truck-side staging and lower beam levels. The 24V/50Ah lithium battery with built-in 24V/20A charger keeps maintenance low, and the dual damping system smooths travel on warehouse floors. It is the pick for facilities that move heavy pallets but stack low and need to get through standard doors.

See full specifications

WHY THE EB14C-98LI

ENGINEERED WHERE IT COUNTS.

3,000 lb to 98"

Rated for 3,000 lb at a 20" load center, with a maximum lift height of 98". A practical height for dock staging, truck-side work and lower rack levels. Fully raised, the mast extends to 127.6".

24V Lithium Power

A 24V/50Ah lithium battery runs both drive and lift. The 24V/20A charger is built in, so there is no separate charging station to buy, mount or wire.

Adjustable Forks and Legs

Forks adjust from 8.7" to 32.1" and straddle legs from 35.4" to 51.2", so one machine handles mixed pallet sizes. A 57.5" turning radius and 73.7" overall length keep it nimble in narrow aisles.

Controls Built for Shifts

A Curtis controller and dual damping drive system smooth out travel and cut vibration over long shifts. Polyurethane wheels roll quietly and protect finished floors.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Low-clearance buildings

A 75.2" lowered mast suits older buildings and rooms with low doorways or limited overhead space.

Dense, heavy pallets

Move loads up to 3,000 lb, such as beverage, hardware or paper stock, without stepping up to a rider truck.

Truck loading

Load and unload trucks at the dock, then stage pallets on the floor or stack them for later put-away.

Food and beverage

Stack palletized cases in dry storage and back-of-house areas for food and beverage distributors and processors.

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

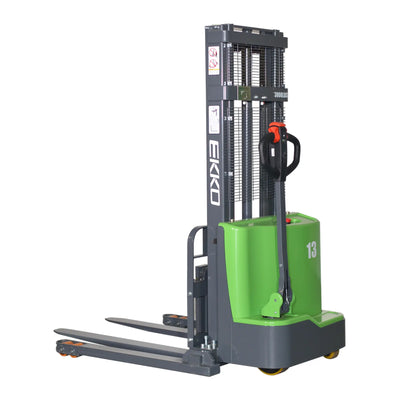

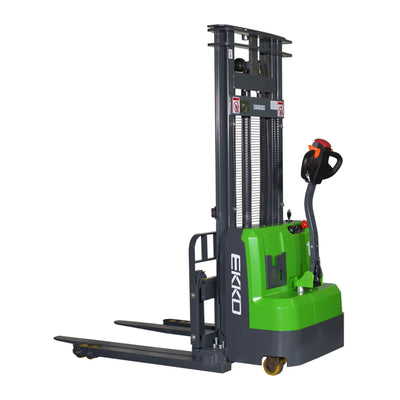

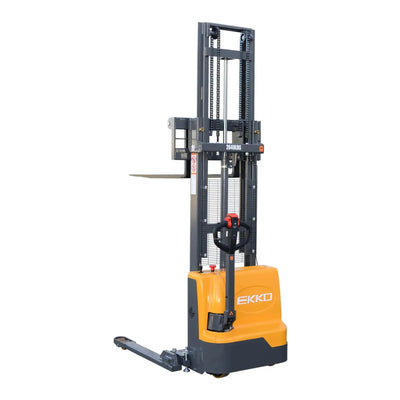

	This itemEB14C-98Li$5,593.60	EB14CS-118Li$7,360.60	EB12EA$8,126.30	EB13C-98Li$5,593.60
Capacity	3,000 lb	3,000 lb	3,000 lb	2,800 lb
Lift	98″	118″	145.67″	98″
Battery	Lithium 24V	Lithium 24V	Lead-acid 24V	Lithium 24V
Side shift	No	Yes	No	No
Shipping	Free	Free	Free	Free
	You're viewing this	View details	View details	View details

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EB14C-98LI.

Still unsure? Call (844) 455-4327 or email support@equipmentnation.com. Real people, Mon–Fri.

Will the EB14C-98Li fit through a standard doorway?

In most cases, yes. The EB14C-98Li has a lowered mast height of 75.2", which sits under a typical 80" door opening. At full lift the mast extends to 127.6", so check ceiling, light and sprinkler clearance at the top of the lift. If your openings are shorter, call (888) 378-6244 and we will check the fit before you order.

What pallet sizes does the EB14C-98Li handle?

The forks adjust from 8.7" to 32.1" overall width with 45.3" fork length, and the straddle legs adjust from 35.4" to 51.2". Set the legs to clear the pallet and the forks to its entry openings, and the EB14C-98Li handles a wide range of pallets and skids. Capacity is 3,000 lb at a 20" load center. Unsure about an odd size? Call (888) 378-6244.

How is the EB14C-98Li charged?

The EB14C-98Li carries its charger on board: a 24V/20A unit matched to its 24V/50Ah lithium battery. Park the machine, plug it in and charge; there is no separate charger station to buy or mount. Lithium also means no battery watering routine.

How does the EB14C-98Li compare with the EB13C-98Li?

Both lift to 98" with a 75.2" lowered mast and a 24V/50Ah lithium battery with a 24V/20A charger. The EB14C-98Li is rated for 3,000 lb at a 20" load center, versus 2,800 lb at 24" for the EB13C-98Li, and adds a dual damping drive. Choose the EB14C-98Li if your pallets run heavier.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $150). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.

CUSTOMER REVIEWS

OWNERS ON THE EB14C-98LI.

No reviews yet. Customer reviews will appear here as they come in.

Questions before you buy? Call (844) 455-4327.

Own the EB14C-98Li? Be the first to review it.

How does it handle your loads and lift heights?
How does the battery hold up over a full shift?
How was ordering, delivery and setup?
