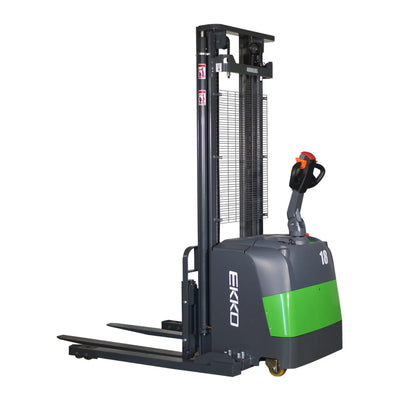

EKKO EB18C-138Li Electric Walkie Stacker – 4,000 lb Capacity, 138" Lift, 24V Lithium Battery

EKKOModel EB18C-138LiBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $623.90

$12,478.00

$12,478.00 - $12,478.00

$12,478.00

$11,854.10

$11,854.10 - $11,854.10

$11,854.10

Configure your EB18C

Compare models

Lift height: 138″

118″ −$304 138″ Selected 145″ +$304

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EB18C-138Li

About the EB18C-138Li

The EKKO EB18C-138Li electric walkie stacker delivers dependable lift performance for narrow aisles and busy docks. With a 4,000 lb capacity, 138 in lift height, and a compact chassis, it provides stable handling for staging pallets, replenishing pick locations, and positioning loads at mid-bay racking. A Curtis controller paired with a 24V AC drive and 24V lift motor offers smooth, precise control.

Adjustable forks and straddle legs accommodate mixed pallet styles, while polyurethane wheels and ergonomic controls support confident, low‑maintenance operation across long shifts. Built with high‑quality steel and robotic welding, this stacker is engineered for reliability in demanding warehouse workflows.

From the manufacturer

The EKKO EB18C-138Li Lithium Straddle Stacker provides a versatile and efficient material handling solution, combining the capabilities of a forklift, reach truck, and walkie stacker. This adaptable machine is ideal for a wide range of applications, from loading and unloading trucks and managing busy loading docks to optimizing stockroom organization and streamlining warehouse operations. The straddle leg design enhances stability and allows for operation in narrow aisles.

Built with high-quality steel components and a durable drive system, the EB18C-138Li is engineered for reliable performance in demanding environments. Its robust construction confidently handles diverse terrains, frequent use, impacts, and directional changes.

Charge the battery at least once a month, even when the unit is not in use.

Highlights

4,000 lb load capacity with a 24" load center
138 in maximum lift height for efficient rack access
Adjustable fork width (8.7" – 32") and leg width (39.76" – 55.55")
Curtis controller with 24V AC drive and 24V lift motor for smooth control
45.3" forks and tight turning radius for narrow‑aisle maneuvering
Polyurethane wheels and ergonomic handle for operator comfort
3-year limited manufacturer’s warranty for peace of mind

Specifications

Capacity & lift

Load capacity	4,000 lb
Max lift height	138 in
Load center	24 in

Dimensions

Lowered mast height	89.17 in
Extended mast height	166.93 in
Overall length	76.18 in
Max overall width	61 in
Turning radius	62.83 in

Power & drive

Battery	24V / 90Ah Lithium
Charger	24V / 30A
Lift motor	3,000 W
Drive motor	750 W

Forks & chassis

Fork length	45.3 in
Single fork width	3.94 in
Adjustable fork width	8.7–32 in
Lowered fork height	2.56 in
Adjustable leg width	39.76–55.55 in

General

Model	EB18C-138Li
Service weight	2,360 lb

Manuals & downloads

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $150. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EB18C-138Li:

3 yearsFrame, mast and forks
1 yearDrive and lift motors, controller, hydraulics, charger and battery (lithium or lead-acid)
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (844) 455-4327 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(844) 455-4327 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (844) 455-4327 or email support@equipmentnation.com.

MID-HEIGHT HEAVY LITHIUM STACKER · EB18C-138Li

EB18C: 4,000 LB, 138 INCHES

The EKKO EB18C-138Li lifts 4,000 lb to 138", the middle reach in the EB18C family, on a 24V/90Ah lithium battery.

Capacity4,000 lbLift138″BatteryLithium 24V

4,000 lbCapacity

138″Lift

Lithium 24VBattery

NewFull manufacturer warranty

BUILT FOR THE JOB

Extra reach, same heavy capacity

The EB18C-138Li lifts 4,000 lb to 138", 20 inches above the EB18C-118Li. The lowered mast measures 89.17" and extends to 166.93" at full lift. A Curtis controller paired with a 24V AC drive and 3000W lift motor gives smooth, precise control when placing heavy loads at mid and upper rack positions. The 24V/90Ah lithium battery supports low-maintenance operation, and adjustable forks from 8.7" to 32" and straddle legs from 39.76" to 55.55" accommodate mixed pallet styles. Service weight is 2,360 lb.

See full specifications

WHY THE EB18C-138LI

ENGINEERED WHERE IT COUNTS.

4,000 lb to 138"

Rated for 4,000 lb at a 24" load center, with a maximum lift height of 138". Aimed at mid and upper racking where a 118-inch mast comes up short. Fully raised, the mast extends to 166.93".

24V Lithium Power

A 24V/90Ah lithium battery runs both drive and lift. A matched 24V/30A charger is included, and lithium chemistry means no battery watering routine.

Adjustable Forks and Legs

Forks adjust from 8.7" to 32" and straddle legs from 39.76" to 55.55", so one machine handles mixed pallet sizes. A 62.83" turning radius and 76.18" overall length keep it nimble in narrow aisles.

Controls Built for Shifts

A Curtis controller runs a 24V AC drive and 3000W lift motor for smooth, precise control. Polyurethane wheels, an ergonomic handle and robotically welded steel frame handle long shifts.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Mid to high-bay storage

Reach rack positions up to 138" while the operator stays on the floor at the tiller.

Dense, heavy pallets

Move loads up to 4,000 lb, such as beverage, hardware or paper stock, without stepping up to a rider truck.

Wholesale supply

Stack case-packed pallets for distributors and suppliers moving mixed SKUs through a compact indoor warehouse.

Distribution centers

Replenish pick faces and shuttle full pallets between staging lanes and storage in busy indoor facilities.

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

	This itemEB18C-138Li$11,854.10	EB18E$11,854.10	EB16EAS-189Li$18,238.10	EB20CS-177Li$17,508.50
Capacity	4,000 lb	4,000 lb	4,400 lb	4,400 lb
Lift	138″	138″	189″	177″
Battery	Lithium 24V	Lead-acid 24V	Lithium 24V	Lithium 24V
Side shift	No	No	Yes	Yes
Shipping	Free	Free	Free	Free
	You're viewing this	View details	View details	View details

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EB18C-138LI.

Still unsure? Call (844) 455-4327 or email support@equipmentnation.com. Real people, Mon–Fri.

How much overhead clearance does the EB18C-138Li need?

With the forks down, the EB18C-138Li stands 89.17" tall at the mast, taller than a typical 80-inch interior door, so plan routes through dock doors and roll-ups. At full lift the mast extends to 166.93", so check ceiling, light and sprinkler clearance at the top of the lift. Call (888) 378-6244 with your measurements and we will confirm the fit.

What pallet sizes does the EB18C-138Li handle?

The forks adjust from 8.7" to 32" overall width with 45.3" fork length, and the straddle legs adjust from 39.76" to 55.55". Set the legs to clear the pallet and the forks to its entry openings, and the EB18C-138Li handles a wide range of pallets and skids. Capacity is 4,000 lb at a 24" load center. Unsure about an odd size? Call (888) 378-6244.

How is the EB18C-138Li charged?

The EB18C-138Li runs on a 24V/90Ah lithium battery. It ships with a matched 24V/30A charger. Park it at a charging spot at the end of the shift and plug it in, and confirm your outlet type with us at (888) 378-6244 before delivery. Lithium also means no battery watering routine for your team.

Why choose the EB18C-138Li over the EB18C-118Li?

Choose the EB18C-138Li when your top rack position sits above 118". It lifts 4,000 lb twenty inches higher, to 138", with the same lithium battery, forks, legs and 62.83" turning radius. The trade-offs are a taller 89.17" lowered mast, versus 79.33", and 90 lb more service weight. If you need to reach above 138", the 145Li goes to 145".

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $150). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.
