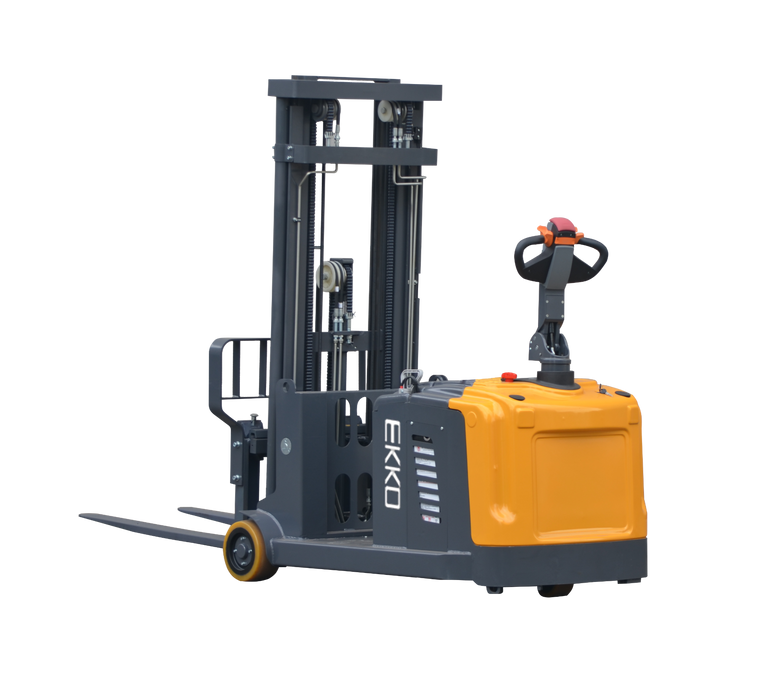

EKKO EK13S-177 Counterbalanced Walkie Stacker SIDE-SHIFTING

EKKOModel EK13S-177Brand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $959.90

$19,198.00

$19,198.00 - $19,198.00

$19,198.00

$18,238.10

$18,238.10 - $18,238.10

$18,238.10

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EK13S-177

About the EK13S-177

The EKKO EK13S-177 is a fully powered counterbalanced walkie stacker with a side-shifting carriage and a 177" lift. It is rated for 2,860 lb at a 23.6" load center and picks up pallets with no straddle legs in the way.

Its mast gives 59.84" of free lift, so the forks rise that far before the mast grows taller than its 78.74" lowered height. A Curtis controller runs the 2.5 kW AC drive, electronic power steering lightens the tiller, and a 24V/210Ah battery and charger are included.

From the manufacturer

The EKKO EK13S-177 fully powered counterbalanced walkie stacker includes side-shifting and combines the versatility of a forklift with a walkie stacker. It is suited to loading and unloading trucks, loading docks, stockrooms, manufacturing floors and warehouses.

It is made from high-quality steel and components with durable drives, built to handle daily use, impacts and frequent changes of direction.

Highlights

2,860 lb load capacity at a 23.6" load center
177" maximum lift height (14.75 ft)
Side-shifting carriage
78.74" lowered mast with 59.84" free lift
Counterbalanced design: no straddle legs, forks enter pallets directly
Adjustable forks 8.66"–28.35" overall width, 45.28" long
Mast tilt 2° forward / 5° back
Curtis controller, 2.5 kW AC drive, 2.5 kW lift motor and electronic power steering
24V/210Ah battery and charger included; electromagnetic brake
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Load capacity	2,860 lb
Max lift height	177.17 in
Load center	23.6 in
Free lift	59.84 in
Side shift	Yes
Mast tilt (forward/back)	2° / 5°
Lift speed (laden/unladen)	3.9 / 4.7 in/s
Lowering speed (laden/unladen)	5.4 / 4.7 in/s

Dimensions

Turning radius	56.89 in
Overall length	109 in
Overall width	39.29 in
Wheelbase	46.81 in
Lowered mast height	78.74 in
Extended mast height	214.53 in
Body length	62.52 in
Handle height (min/max)	43.5 / 56.69 in
Ground clearance under mast	3.54 in
Min ground clearance	3.39 in
Aisle width, 1000 × 1200 mm pallet crossways	115.95 in
Aisle width, 800 × 1200 mm pallet lengthways	120.28 in

Power & drive

Battery	24V / 210Ah
Charger	Included
Drive motor	AC, 2.5 kW
Lift motor	2.5 kW
Steering	EPS
Gradeability (laden/unladen)	6% / 8%
Travel speed (laden/unladen)	3.2 / 3.4 mph
Brake	Electromagnetic
Battery weight	460 lb
Noise level	70 dB(A)

Forks & chassis

Fork size (T/W/L)	1.38 / 3.94 / 45.28 in
Adjustable fork width	8.66–28.35 in
Tires	Polyurethane
Drive wheel (dia × width)	9.84 × 2.95 in
Load wheel (dia × width)	9.84 × 4.72 in
Fork face to front wheel	5.91 in
Front track width	34.09 in

General

Model	EK13S-177
Service weight	4,070 lb (with battery)
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $150. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EK13S-177:

3 yearsFrame, mast and forks
1 yearDrive and lift motors, controller, hydraulics, charger and battery (lithium or lead-acid)
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (844) 455-4327 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(844) 455-4327 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (844) 455-4327 or email support@equipmentnation.com.

SIDE-SHIFT COUNTERBALANCED WALKIE STACKER · EK13S-177

177 INCHES WITH SIDE SHIFT

The EKKO EK13S-177 lifts 2,860 lb to 177" with a side-shifting carriage, 59.84" of free lift and electronic power steering.

Capacity2,860 lbLift177″BatteryLead-acid 24V

2,860 lbCapacity

177″Lift

Lead-acid 24VBattery

YesSide shift

NewFull manufacturer warranty

BUILT FOR THE JOB

High reach from a low mast

The EK13S-177 is EKKO's high-reach counterbalanced walkie with side shift. It lifts 2,860 lb to 177" (14.75 ft) at a 23.6" load center, yet the mast stands only 78.74" lowered. Its 59.84" of free lift raises the forks that far before the mast gets any taller, useful under low ceilings and mezzanines. The side-shifting carriage lines up pallets at the rack without moving the machine. A Curtis controller runs a 2.5 kW AC drive, electronic power steering lightens the tiller, and a 24V/210Ah battery and charger are included.

See full specifications

WHY THE EK13S-177

ENGINEERED WHERE IT COUNTS.

2,860 lb to 177"

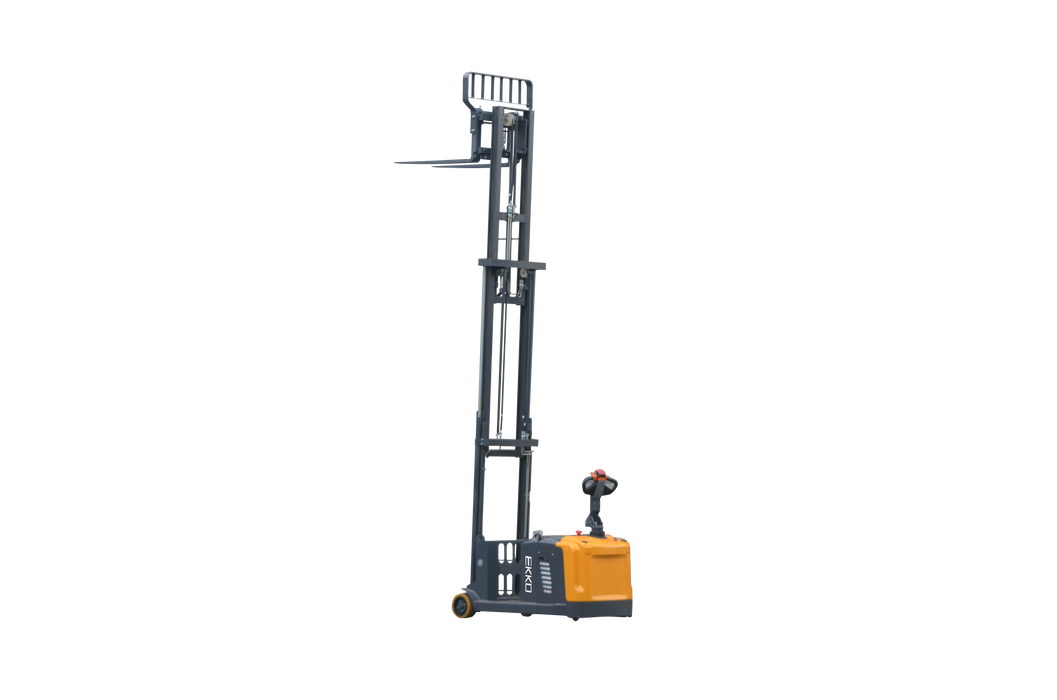

Rated for 2,860 lb at a 23.6" load center with a 177" (14.75 ft) maximum lift. Fully raised, the mast extends to 214.53", so confirm ceiling, light and sprinkler clearance at the top of the lift.

59.84" Free Lift

The forks rise 59.84" before the mast grows past its 78.74" lowered height. That helps when stacking under low ceilings, mezzanines or doorways where overall height matters.

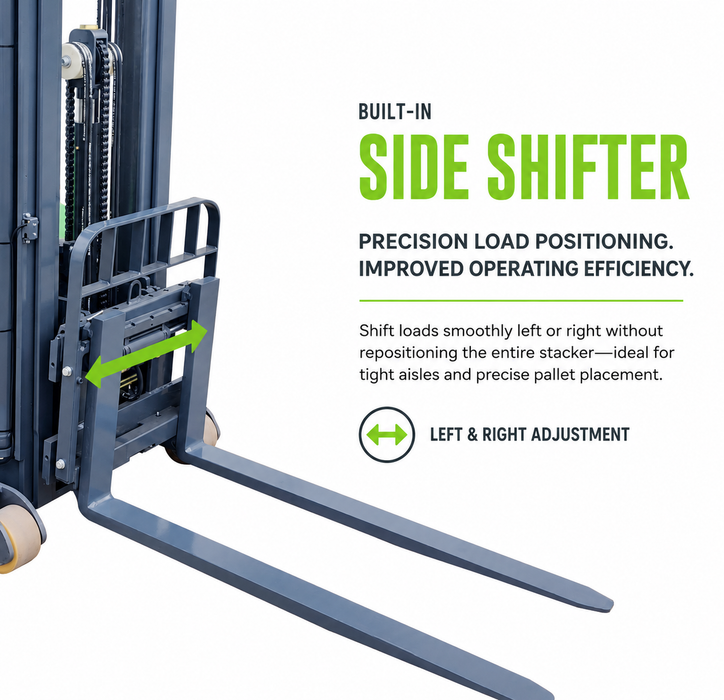

Side Shift at the Rack

The side-shifting carriage moves the forks sideways to meet the rack opening, so the operator lines up the load without repositioning. The 45.28" forks adjust from 8.66" to 28.35".

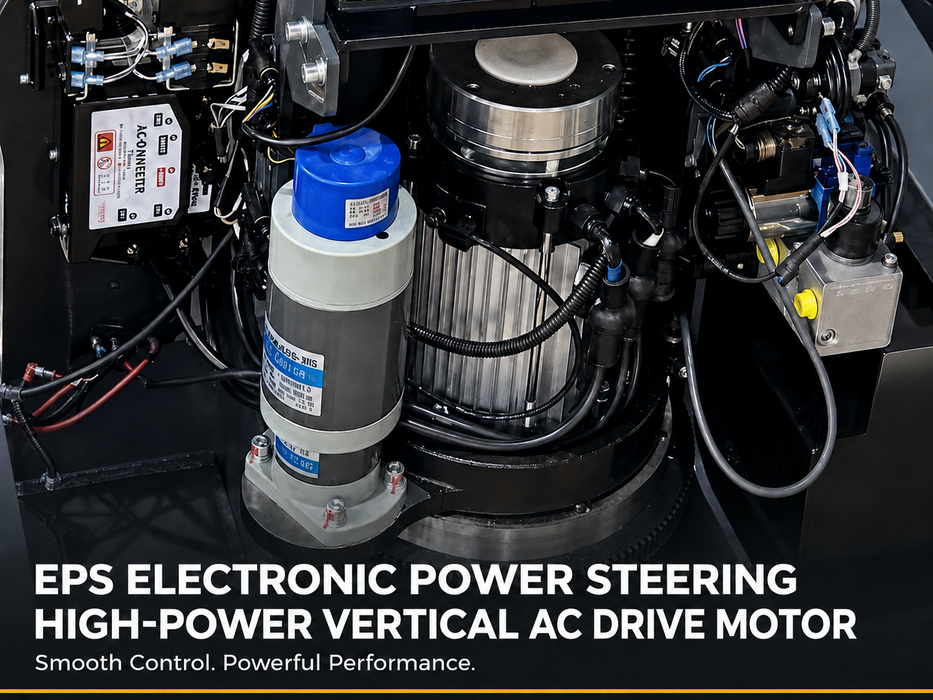

AC Drive and EPS

A Curtis controller runs a 2.5 kW AC drive motor with an electromagnetic brake, and electronic power steering lightens the tiller. The mast tilts 2° forward and 5° back to settle loads.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

High-bay racking

Reach top beams up to 177" and use side shift to center pallets without backing out and re-approaching.

Low-ceiling areas

Use 59.84" of free lift to stack under mezzanines and low ceilings before the mast gets taller.

Wide or odd loads

Handle pallets and skids too wide for straddle legs, approaching them fork-first with nothing out front.

Receiving docks

Take pallets off the dock plate, stage them by lane and put them away high with the same machine.

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

	This itemEK13S-177$18,238.10	EK14C-130$16,414.10	EK14CS-130Li$18,238.10	EK14-118/130$15,198.10
Capacity	2,860 lb	3,000 lb	3,000 lb	3,300 lb
Lift	177″	130″	130″	118″ / 130″
Battery	Lead-acid 24V	Lead-acid 24V	Lithium 24V	Lead-acid 24V
Side shift	Yes	No	Yes	No
Shipping	Free	Free	Free	Free
	You're viewing this	View details	View details	View details

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EK13S-177.

Still unsure? Call (844) 455-4327 or email support@equipmentnation.com. Real people, Mon–Fri.

What does 59.84" of free lift mean on the EK13S-177?

Free lift is how far the forks rise before the mast gets taller. On the EK13S-177 the forks can climb 59.84" while the mast stays at its 78.74" lowered height. That lets you stack under low ceilings or mezzanines. Above that point the mast extends, reaching 214.53" at the full 177" lift.

How much aisle does the EK13S-177 need?

EKKO lists a right-angle stacking aisle of 115.95" with a 1000 × 1200 mm pallet crossways and 120.28" with an 800 × 1200 mm pallet lengthways. Turning radius is 56.89" and overall length is 109". Send us your aisle widths at (888) 378-6244 and we will confirm the fit.

How fast does the EK13S-177 travel and lift?

EKKO lists travel speed of 3.2 mph laden and 3.4 mph unladen, lift speed of 3.9 in/s laden and 4.7 in/s unladen, and lowering speed of 5.4 in/s laden and 4.7 in/s unladen. Gradeability is 6% laden and 8% unladen, and it stops with an electromagnetic brake.

Is the battery included with the EK13S-177?

Yes. A 24V/210Ah battery and a charger are included. The battery weighs about 460 lb and is part of the 4,070 lb service weight. Run-time is not published, so call (888) 378-6244 with your shift pattern and pallet count and we will help you plan charging.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $150). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?
