EKKO EK14C-130 Counterbalanced Walkie Stacker 3000 lb

EKKOModel EK14C-130Brand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $863.90

$17,278.00

$17,278.00 - $17,278.00

$17,278.00

$16,414.10

$16,414.10 - $16,414.10

$16,414.10

Configure your EK14C

Compare models

Battery: Lead-acid 24V

Lead-acid 24V Selected Lithium 24V +$1,094.40

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EK14C-130

About the EK14C-130

The EKKO EK14C-130 is a fully powered counterbalanced walkie stacker rated for 3,000 lb at a 24" load center, with a 130" lift. It drives and lifts under power, and with no straddle legs out front the 42.1" forks go straight into the pallet.

A Curtis controller runs the 24V AC drive motor, electronic power steering lightens the tiller, and the mast tilts 2° forward and 5° back. Power comes from a 24V/210Ah battery with a 24V/30A charger, and the mast stands 85.6" lowered.

From the manufacturer

The EKKO EK14C-130 fully powered counterbalanced walkie stacker combines the versatility of a forklift with a walkie stacker. It is suited to loading and unloading trucks, loading docks, stockrooms, manufacturing floors and warehouses.

It is made from high-quality steel and components with durable drives, built to handle daily use, impacts and frequent changes of direction.

Highlights

3,000 lb load capacity at a 24" load center
130" maximum lift height (10.83 ft)
85.6" lowered mast height with 4" free lift
Counterbalanced design: no straddle legs, forks enter pallets directly
Adjustable forks 8.6"–26" overall width, 42.1" long
Mast tilt 2° forward / 5° back

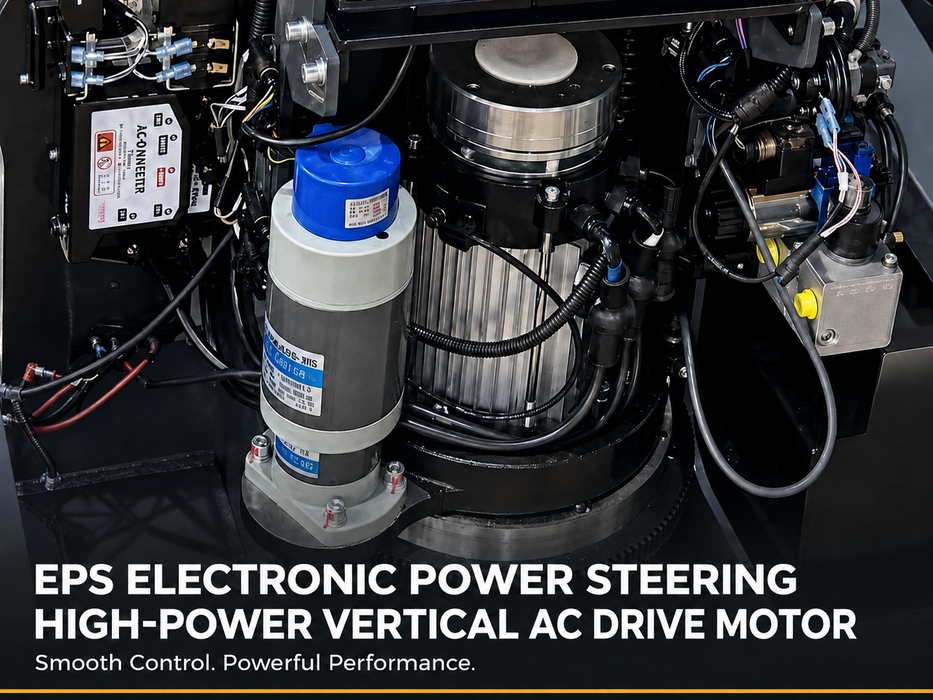

Curtis controller, 24V AC drive motor and electronic power steering
1.5 kW drive and 2.2 kW lift motors; 24V/210Ah battery with 24V/30A charger
66.3" turning radius, polyurethane wheels, steel construction with robotic welding
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Load capacity	3,000 lb
Max lift height	130 in
Load center	24 in
Free lift	4 in
Mast tilt (forward/back)	2° / 5°
Lift speed (laden/unladen)	2.95 / 3.94 in/s

Dimensions

Turning radius	66.3 in
Overall length	118 in
Overall width	39 in
Wheelbase	44.7 in
Lowered mast height	85.6 in
Extended mast height	158.66 in

Power & drive

Battery	24V / 210Ah
Charger	24V / 30A
Drive motor	24V AC, 1.5 kW
Lift motor	2.2 kW
Steering	EPS
Gradeability (laden/unladen)	6% / 10%

Forks & chassis

Fork size (T/W/L)	1.4 / 4 / 42.1 in
Adjustable fork width	8.6–26 in
Tires	Polyurethane

General

Model	EK14C-130
Service weight	4,230 lb
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $150. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EK14C-130:

3 yearsFrame, mast and forks
1 yearDrive and lift motors, controller, hydraulics, charger and battery (lithium or lead-acid)
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (844) 455-4327 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(844) 455-4327 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (844) 455-4327 or email support@equipmentnation.com.

COUNTERBALANCED WALKIE STACKER · EK14C-130

COMPACT 3,000 LB COUNTERBALANCE

The EKKO EK14C-130 lifts 3,000 lb to 130" with electronic power steering and 42.1" adjustable forks, powered by a 24V/210Ah battery.

Capacity3,000 lbLift130″BatteryLead-acid 24V

3,000 lbCapacity

130″Lift

Lead-acid 24VBattery

NewFull manufacturer warranty

BUILT FOR THE JOB

The lead-acid EK14C

The EK14C-130 is the lead-acid entry to EKKO's 3,000 lb EK14C line. It lifts 3,000 lb to 130" (10.83 ft) at a 24" load center on 42.1" forks that adjust from 8.6" to 26", shorter than the 45.3" forks on the 3,300 lb EK14. It drives and lifts under power, with a Curtis controller, a 24V AC drive motor, electronic power steering and 2° forward, 5° back mast tilt. A 24V/210Ah battery and 24V/30A charger supply the power. For lithium at the same height, see the EK14C-130Li.

See full specifications

WHY THE EK14C-130

ENGINEERED WHERE IT COUNTS.

3,000 lb to 130"

Rated for 3,000 lb at a 24" load center with a 130" (10.83 ft) maximum lift. The mast stands 85.6" lowered, extends to 158.66" at full lift and gives 4" of free lift.

24V Battery Power

A 24V/210Ah battery and 24V/30A charger feed a 1.5 kW drive motor and a 2.2 kW lift motor, managed by a Curtis controller for smooth travel and lifting.

42.1" Adjustable Forks

Forks are 42.1" long and adjust from 8.6" to 26" overall width. With a rear counterweight instead of straddle legs out front, they enter pallets directly, including loads too wide for legs.

Steering and Control

Electronic power steering reduces effort at the tiller, and the mast tilts 2° forward and 5° back to settle loads. The steel frame with robotic welding rides on polyurethane wheels.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Wide or odd loads

Handle pallets and skids too wide for straddle legs, approaching them fork-first with nothing out front in the way.

Warehouse racking

Place and retrieve pallets up to 130" in racking where a sit-down forklift is too large for the aisle.

Receiving docks

Take pallets off the dock plate, stage them by lane and put them away with the same machine.

Manufacturing floors

Feed production lines and move work-in-process pallets with powered travel and lift instead of hand pumping.

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

	This itemEK14C-130$16,414.10	EK14CS-130Li$18,238.10	EK13S-177$18,238.10	EK14-118/130$15,198.10
Capacity	3,000 lb	3,000 lb	2,860 lb	3,300 lb
Lift	130″	130″	177″	118″ / 130″
Battery	Lead-acid 24V	Lithium 24V	Lead-acid 24V	Lead-acid 24V
Side shift	No	Yes	Yes	No
Shipping	Free	Free	Free	Free
	You're viewing this	View details	View details	View details

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EK14C-130.

Still unsure? Call (844) 455-4327 or email support@equipmentnation.com. Real people, Mon–Fri.

How does the EK14C-130 compare with the EK14C-130Li?

Both lift 3,000 lb to 130" with an 85.6" lowered mast and 42.1" forks. The EK14C-130 uses a 24V/210Ah battery with a 24V/30A charger, a 1.5 kW drive motor and a 66.3" turning radius. The EK14C-130Li uses a 24V/150Ah lithium battery with a 24V/50A charger, a 2,500W AC drive and a 57" turning radius.

Should I choose the EK14C-130 or the EK14-130?

Both lift to 130". The EK14-130 is rated for 3,300 lb on 45.3" forks adjustable to 28.3", with an 84" lowered mast. The EK14C-130 is rated for 3,000 lb on 42.1" forks adjustable to 26", with an 85.6" lowered mast. Pick the EK14 for heavier loads or longer pallets.

What clearance does the EK14C-130 need?

With the mast lowered, the EK14C-130 stands 85.6" tall, above a typical 80-inch interior door, and it is 39" wide and 118" long. At full lift the mast extends to 158.66", so check ceiling, lights and sprinklers. Call (888) 378-6244 with your measurements and we will confirm the fit.

Is the EK14C-130 fully powered?

Yes. It drives and lifts under power. A Curtis controller runs the 1.5 kW AC drive motor, a 2.2 kW lift motor raises the mast, and electronic power steering lightens the tiller. The operator walks behind and steers; there is no hand pumping or pushing.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $150). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.
