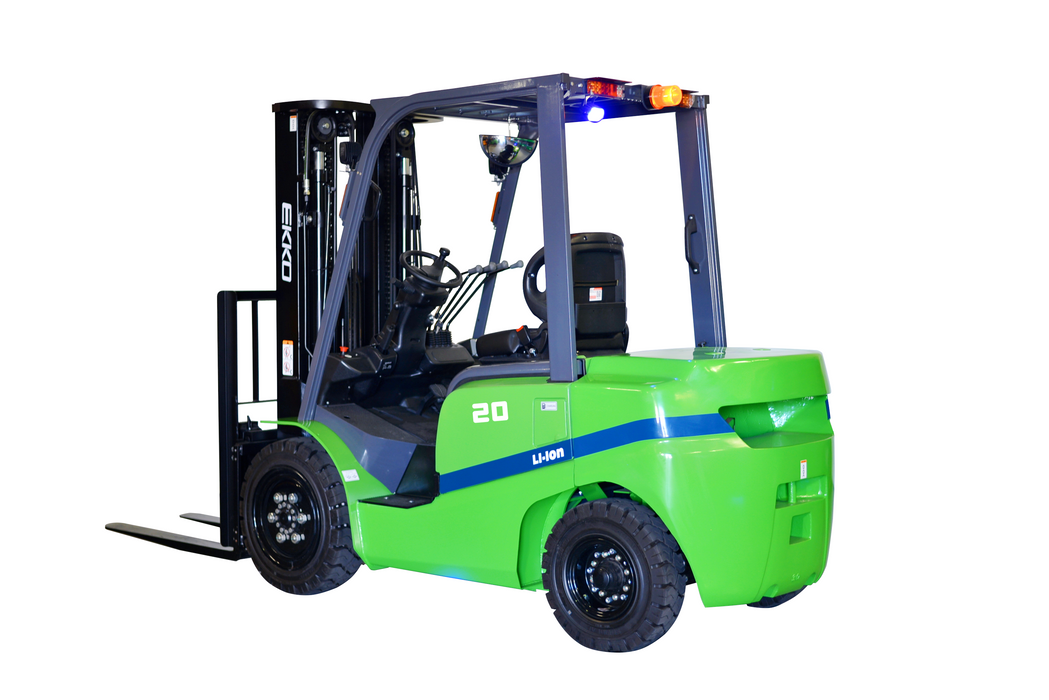

EKKO EK20GT-Li Lithium-Powered Forklift

EKKOModel EK20GT-LiBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $1,679.95

$33,599.00

$33,599.00 - $33,599.00

$33,599.00

$31,919.05

$31,919.05 - $31,919.05

$31,919.05

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EK20GT-Li

About the EK20GT-Li

Go electric indoors and out with the EKKO EK20GT-Li, a 4-wheel lithium forklift that lifts 4,000 lb to 185" with 43.7" of free lift. Solid pneumatic tires handle dock plates and paved lots, and there is no fuel to buy and no exhaust inside the building.

An 80V/205Ah lithium battery charges from a standard 480V 3-phase charger, with 220V 3-phase and 110V single-phase chargers available at extra cost. Cascade side shift and a pre-plumbed Shimadzu 4-way valve come standard.

From the manufacturer

The EKKO EK20GT-Li 4-wheel electric forklift is built for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehouses, with a focus on reliability and performance.

Constructed from high-quality steel and durable components, the EK20GT-Li has robust drives made for varied surfaces, heavy use, impacts and constant directional changes.

Highlights

Load capacity 4,000 lb at a 24" load center
185" maximum lift height with 43.7" free lift
80V/205Ah lithium battery
480V 3-phase charger standard; 220V 3-phase and 110V single-phase optional (extra cost)
Cascade side shift and pre-plumbed Shimadzu 4-way valve
Solid pneumatic tires
Mast tilt 6° forward and 6° back, 42.1" fork length
Travel speed 9.3 mph laden or unladen
Steel construction with robotic welding
3 Year Limited Warranty

Specifications

Capacity & lift

Load capacity	4,000 lb
Load center	24 in
Max lift height	185 in
Free lift	43.7 in
Mast tilt (forward/back)	6° / 6°

Dimensions

Lowered mast height	83 in
Length with forks	138.9 in
Length without forks	96.8 in
Overall width	45.2 in
Wheelbase	63.7 in
Min. outside turning radius	86.2 in
Ground clearance (at mast)	4.3 in

Power & drive

Battery	80V/205Ah lithium
Charger	480V 3-phase (standard)
Optional chargers	220V 3-phase or 110V single-phase (extra cost)
Travel speed (laden/unladen)	9.3 / 9.3 mph
Operation	Seated
Service brake	Hydraulic foot pedal

Forks & chassis

Side shift	Cascade
Auxiliary valve	Shimadzu 4-way (pre-plumbed)
Fork length	42.1 in
Tires	Solid pneumatic

General

Model	EK20GT-Li
Service weight	7,594 lb
Warranty	3 Year Limited Warranty

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $150. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EK20GT-Li:

3 yearsFrame, mast and forks
1 yearTransmission, drive and lift motors, controllers, charger, hydraulic pump, sensors
Up to 5 yearsLithium battery on EKKO's designated lithium models (1 year on other batteries)
6 monthsLabor on specified models, with EKKO's prior approval
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (844) 455-4327 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(844) 455-4327 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (844) 455-4327 or email support@equipmentnation.com.

4,000 LB 80V LITHIUM FORKLIFT · EK20GT-Li

4,000 LB LITHIUM, INDOORS AND OUT

The EKKO EK20GT-Li lifts 4,000 lb to 185" with 43.7" of free lift. It runs on an 80V/205Ah lithium battery with solid pneumatic tires and Cascade side shift.

Capacity4,000 lbLift185″PowerLithium 80V

4,000 lbCapacity

185″Lift

Lithium 80VPower

Solid pneumaticTires

NewFull manufacturer warranty

BUILT FOR THE JOB

The starting point of the GT-Li line

The EK20GT-Li is the entry model in EKKO's 80V GT-Li lithium forklift line, sized for businesses whose loads stay at or under 4,000 lb. It lifts to 185" with 43.7" of free lift, and it is the most compact GT-Li at 138.9" long with forks and 45.2" wide. The 80V/205Ah lithium battery means no fuel and no battery watering. Solid pneumatic tires cross dock plates and paved lots as well as warehouse floors. Cascade side shift and a pre-plumbed Shimadzu 4-way valve are standard, and a 480V 3-phase charger comes with 220V and 110V options.

See full specifications

WHY THE EK20GT-LI

ENGINEERED WHERE IT COUNTS.

4,000 lb, 185" Lift

Rated for 4,000 lb at a 24" load center with a 185" lift height and 43.7" of free lift. The 42.1" forks and 6-degree forward and back tilt handle dock, floor and racking work.

80V/205Ah Lithium Battery

An 80V/205Ah lithium battery powers the truck. The standard charger runs on 480V 3-phase power, and 220V 3-phase or 110V single-phase chargers are available at extra cost for facilities without 480V service.

Compact GT-Li Footprint

At 138.9" long with forks, 45.2" wide and an 86.2" outside turning radius, the EK20GT-Li is the smallest GT-Li. Solid pneumatic tires handle dock plates, rough concrete and paved yards.

Side Shift, 4-Way Valve

Cascade side shift lets operators align loads without repositioning. A pre-plumbed Shimadzu 4-way valve is ready for attachments. Ergonomic controls and robotically welded steel round out the package.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Dock and warehouse

Unload trailers, cross the dock plate and rack pallets indoors with one quiet, emission-free electric truck.

Retail distribution

Move store-bound pallets between racking, staging lanes and trailers in busy regional distribution centers.

Light manufacturing

Feed assembly lines and move finished goods to shipping without engine exhaust in the plant.

Paved storage yards

Carry pallets out to paved outdoor storage and back on solid pneumatic tires that resist flats.

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

	This itemEK20GT-Li$31,919.05	EK18AT-212Li$34,199.05	EK18RF-Li$39,899.05
Capacity	4,000 lb	4,000 lb	4,000 lb
Lift	185″	212″	216″
Power	Lithium 80V	Lithium 48V	Lithium 48V
Tires	Solid pneumatic	Solid pneumatic	Cushion
Shipping	Free	Free	Free
	You're viewing this	View details	View details

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EK20GT-LI.

Still unsure? Call (844) 455-4327 or email support@equipmentnation.com. Real people, Mon–Fri.

How does the EK20GT-Li compare with other GT-Li models?

The GT-Li line shares 80V lithium power, a 185" lift, solid pneumatic tires and Cascade side shift. The EK20GT-Li is rated for 4,000 lb with 43.7" of free lift and an 80V/205Ah battery. The EK25GT-Li, EK30GT-Li and EK35GT-Li step up to 5,000, 6,000 and 7,000 lb.

What charger does the EK20GT-Li need?

The standard charger runs on 480V 3-phase power. Optional 220V 3-phase and 110V single-phase chargers are available at extra cost for facilities without 480V service. Tell us your building's power when you call (888) 378-6244 and we will match the charger.

Can the EK20GT-Li go outside?

Yes, on suitable ground. Its solid pneumatic tires are built for dock plates, uneven concrete and paved yards, so it can move between indoor and outdoor areas. Because it is electric, it produces no exhaust when it comes back inside the building.

Will the EK20GT-Li fit through my dock doors?

With the forks down, the mast stands 83" tall, and the truck is 45.2" wide. With 43.7" of free lift, the forks can rise more than three and a half feet before the mast gets taller, which helps inside trailers. Send us your door sizes and we will confirm the fit.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $150). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.

CUSTOMER REVIEWS

OWNERS ON THE EK20GT-LI.

No reviews yet. Customer reviews will appear here as they come in.

Questions before you buy? Call (844) 455-4327.

Own the EK20GT-Li? Be the first to review it.

How does it handle your loads and lift heights?
How does the battery hold up over a full shift?
How was ordering, delivery and setup?
