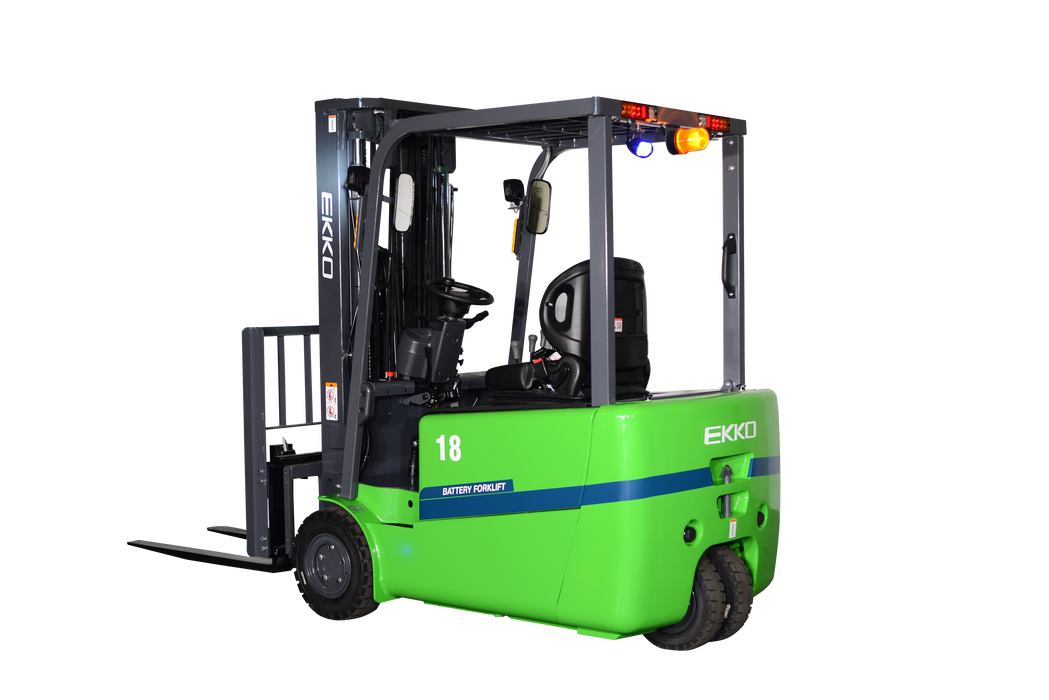

EKKO EK18AT-212Li 3-Wheel Lithium Forklift, 4,000 lb Capacity, 212" Lift Height

EKKOModel EK18AT-212LiBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $1,799.95

$35,999.00

$35,999.00 - $35,999.00

$35,999.00

$34,199.05

$34,199.05 - $34,199.05

$34,199.05

Configure your EK18AT

Compare models

Lift height: 212″

185″ −$1,900 212″ Selected

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EK18AT-212Li

About the EK18AT-212Li

Get 3-wheel agility with dock-ready tires in the EKKO EK18AT-212Li. This dual-motor lithium forklift lifts 4,000 lb to 212" with 43.7" of free lift, runs on solid pneumatic tires and turns in a 61" radius for crowded docks and tight aisles.

A 48V/202Ah lithium battery drives a 4.75 kW drive motor and a 10 kW lift motor through an InMotion controller. Cascade side shift and a pre-plumbed Shimadzu 4-way valve come standard.

From the manufacturer

The EKKO EK18AT-212Li 3-wheel lithium forklift is built for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehouses. Dual motors give it added power, stability and handling for demanding work.

Constructed from high-quality steel and durable components, the EK18AT-212Li has robust drives designed for varied surfaces, heavy use, impacts and constant directional changes.

Highlights

Load capacity 4,000 lb at a 24" load center
212" maximum lift height with 43.7" free lift
Dual-motor drive: 4.75 kW drive motor, 10 kW lift motor
48V/202Ah lithium battery included
48V/100A charger, 480V 3-phase standard (220V and 110V optional)
InMotion controller and hydraulic steering
Cascade side shift and pre-plumbed Shimadzu 4-way valve
Solid pneumatic tires
Steel construction with robotic welding
3 Year Limited Warranty

Specifications

Capacity & lift

Load capacity	4,000 lb
Load center	24 in
Max lift height	212 in
Free lift	43.7 in
Mast tilt (forward/back)	3° / 6°
Lift speed (laden/unladen)	13.8 / 20.5 in/s

Dimensions

Lowered mast height	83.1 in
Overhead guard height	77.6 in
Overall length	116.9 in
Overall width	41.5 in
Wheelbase	53.5 in
Min. turning radius	61 in
Ground clearance (under mast / minimum)	4.3 / 3.7 in

Power & drive

Battery	48V / 202Ah lithium (included)
Charger	48V / 100A, 480V 3-phase standard
Optional chargers	220V or 110V
Drive motor	4.75 kW
Lift motor	10 kW
Controller	InMotion
Travel speed (laden/unladen)	10 / 10 mph
Gradeability (laden)	20%
Service brake	Hydraulic

Forks & chassis

Side shift	Cascade

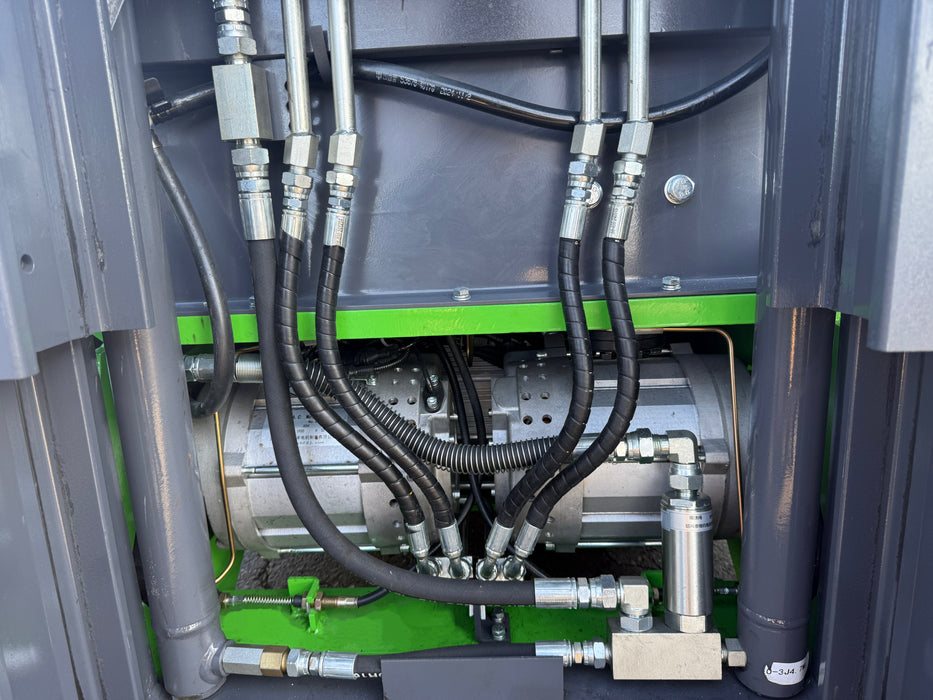

Auxiliary valve	Shimadzu 4-way (pre-plumbed)
Forks	Adjustable
Tires	Solid pneumatic
Tire size (front / rear)	200/50-10 / 140x55-9

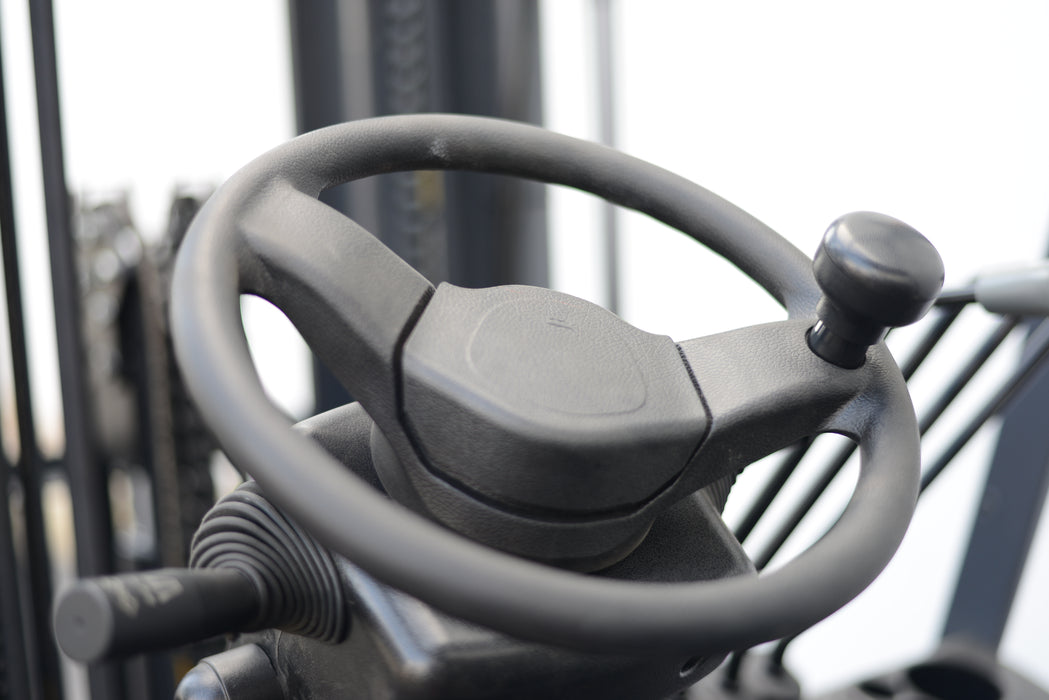

Steering	Hydraulic

General

Model	EK18AT-212Li
Service weight (with battery)	7,341 lb
Warranty	3 Year Limited Warranty

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $150. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EK18AT-212Li:

3 yearsFrame, mast and forks
1 yearTransmission, drive and lift motors, controllers, charger, hydraulic pump, sensors
Up to 5 yearsLithium battery on EKKO's designated lithium models (1 year on other batteries)
6 monthsLabor on specified models, with EKKO's prior approval
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (844) 455-4327 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(844) 455-4327 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (844) 455-4327 or email support@equipmentnation.com.

DUAL-MOTOR 3-WHEEL LITHIUM FORKLIFT · EK18AT-212Li

DUAL-MOTOR 3-WHEEL, 212" LIFT

The EKKO EK18AT-212Li is the taller dual-motor 3-wheel lithium forklift in the EK18AT family. It lifts 4,000 lb to 212" on solid pneumatic tires and runs on a 48V/202Ah battery.

Capacity4,000 lbLift212″PowerLithium 48V

4,000 lbCapacity

212″Lift

Lithium 48VPower

Solid pneumaticTires

NewFull manufacturer warranty

BUILT FOR THE JOB

Tight turns, tough tires

The EK18AT-212Li is the taller model in the EK18AT family. It is for operations that like a 3-wheel forklift's tight turning but need more capacity, height and toughness than an indoor cushion model. Dual motors, a 4.75 kW drive and a 10 kW lift motor, add power, stability and handling, and solid pneumatic tires work docks and rougher surfaces. It lifts 4,000 lb to 212", 27" more than the EK18AT-185Li, with the same 83.1" lowered mast and 43.7" of free lift. A 48V/202Ah lithium battery, InMotion controller, Cascade side shift and a pre-plumbed Shimadzu 4-way valve are standard.

See full specifications

WHY THE EK18AT-212LI

ENGINEERED WHERE IT COUNTS.

4,000 lb to 212"

Rated for 4,000 lb at a 24" load center with a 212" lift height and 43.7" of free lift. Adjustable forks and Cascade side shift help operators place pallets quickly and accurately.

48V/202Ah, Dual Motors

The included 48V/202Ah lithium battery feeds a 4.75 kW drive motor and a 10 kW lift motor through an InMotion controller. The 48V/100A charger runs on 480V 3-phase, with 220V and 110V options.

61" Turning Radius

The 3-wheel chassis turns in a 61" radius and measures 41.5" wide, with hydraulic steering. Solid pneumatic tires handle dock plates and rougher surfaces, and it is rated for a 20% grade laden.

Ready for Attachments

Cascade side shift is standard, and a pre-plumbed Shimadzu 4-way valve is ready for a fourth hydraulic function. Robotically welded steel construction supports heavy daily use.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Tight dock areas

Turn sharply in crowded dock staging areas and cross dock plates on solid pneumatic tires while loading trailers.

Higher racking

Stack pallets up to 212" in warehouses where a 4-wheel truck needs too much aisle space to turn.

Mixed surfaces

Work between the warehouse floor and adjacent paved areas without switching trucks or tire types.

Manufacturing cells

Serve production cells and tight machine layouts with a compact, dual-motor 3-wheel truck and hydraulic steering.

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

	This itemEK18AT-212Li$34,199.05	EK20GT-Li$31,919.05	EK18RF-Li$39,899.05
Capacity	4,000 lb	4,000 lb	4,000 lb
Lift	212″	185″	216″
Power	Lithium 48V	Lithium 80V	Lithium 48V
Tires	Solid pneumatic	Solid pneumatic	Cushion
Shipping	Free	Free	Free
	You're viewing this	View details	View details

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EK18AT-212LI.

Still unsure? Call (844) 455-4327 or email support@equipmentnation.com. Real people, Mon–Fri.

How does the EK18AT-212Li differ from the EK18AT-185Li?

Both are 4,000 lb dual-motor 3-wheel lithium forklifts with 48V/202Ah batteries, solid pneumatic tires, Cascade side shift and 43.7" of free lift. The EK18AT-212Li lifts to 212", while the EK18AT-185Li lifts to 185". Choose the 212Li for taller racking.

Why choose the EK18AT-212Li over the EK16A-216Li?

The EK16A-216Li lifts 3,500 lb on cushion tires and is recommended for flat indoor floors. The EK18AT-212Li lifts 4,000 lb, uses dual motors and runs on solid pneumatic tires, which suit docks and rougher surfaces. It also uses a 48V battery instead of 24V.

What chargers work with the EK18AT-212Li?

The 48V/100A charger runs on 3-phase 480V power as standard, with optional 220V and 110V chargers. The 48V/202Ah lithium battery is included. Tell us what electrical service your facility has at (888) 378-6244 and we will confirm the right charger when you order.

Does the EK18AT-212Li include side shift?

Yes. Cascade side shift is standard, and a Shimadzu 4-way valve comes pre-plumbed for an additional attachment. Adjustable forks and hydraulic steering complete the package, so operators can place loads precisely at height. The truck is built from robotically welded steel.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $150). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.

CUSTOMER REVIEWS

OWNERS ON THE EK18AT-212LI.

No reviews yet. Customer reviews will appear here as they come in.

Questions before you buy? Call (844) 455-4327.

Own the EK18AT-212Li? Be the first to review it.

How does it handle your loads and lift heights?
How does the battery hold up over a full shift?
How was ordering, delivery and setup?
