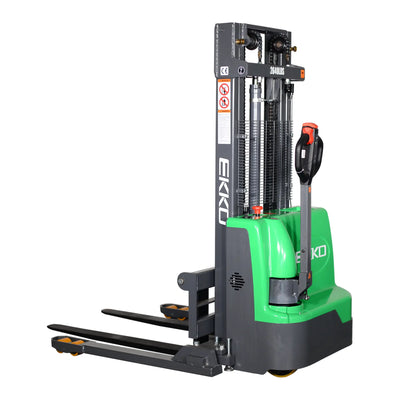

EKKO EB12E-98Li Electric Walkie Stacker – 2,640 lb Capacity, 98" Lift, 72" Mast, Adjustable Forks, 24V Lithium Battery

Name: EKKO EB12E-98Li Electric Walkie Stacker – 2,640 lb Capacity, 98" Lift, 72" Mast, Adjustable Forks, 24V Lithium Battery
Brand: EKKO
SKU: EB12E-98Li
Price: 5593.6 USD
Availability: InStock
Rating: 5.0 (2 reviews)

EKKOModel EB12E-98LiBrand new · Full warranty2 reviews

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $294.40

$5,888.00

$5,888.00 - $5,888.00

$5,888.00

$5,593.60

$5,593.60 - $5,593.60

$5,593.60

Configure your EB12E

Compare models

Lift height: 98″

98″ Selected 119.4″ Lead-acid only 138″ Lead-acid only

Battery: Lithium 24V

Lithium 24V Selected Lead-acid 24V 119.4″ only

Lift with confidence: Handle 2,640 lbs and reach 98" to improve warehouse material handling efficiency.
Ready for tight spaces: Narrow aisle warehouse design with a 72.05" lowered mast that clears standard doors.
Low-maintenance power: LiFePO4 battery with internal charger reduces downtime compared to a manual pallet jack.
Smooth, accurate control: Curtis controller and ergonomic handle keep operators in command.
Adaptable design: Adjustable forks and outrigger legs fit multiple pallet sizes for versatile stacking.
Peace of mind: 3-year limited manufacturer’s warranty for peace of mind.

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EB12E-98Li

About the EB12E-98Li

EKKO EB12E-98Li Electric Walkie Straddle Stacker

EKKO EB12E-98Li is an electric pallet stacker engineered for confident handling in tight warehouse operations. With a 2,640 lb capacity and 98" lift height, it delivers the performance of a forklift with the agility of a walkie stacker for smooth warehouse material handling. The compact 72" lowered mast clears standard doors, making this narrow aisle pallet stacker ideal for busy facilities.

High-capacity lifting: Move up to 2,640 lbs to a 98" lift height for reliable throughput in warehouse environments.
Compact maneuverability: Narrow aisle warehouse capability with a 72.05" lowered mast for easy clearance through doors.
Flexible pallet fit: Adjustable forks (8.27"–33.47") and outrigger legs (45.7"–59.1") support different pallet sizes.
Power you can trust: LiFePO4 24V/50Ah battery with internal charger reduces downtime compared to a manual pallet jack.
Operator-friendly control: Curtis controller and ergonomic handle ensure precise movement in confined spaces.
Durable design: Steel frame with robotic welding makes this straddle stacker built for heavy-duty use.
Peace of mind: 3-year limited manufacturer’s warranty for peace of mind.

Key Features

Load capacity: 2,640 lbs · Lift height: 98.42" · Load center: 24"
Lowered mast height: 72.05" · Extended mast height: 119.96"
Fork length: 45.28" · Fork width (adj): 8.27"–33.47"
Leg width (adj): 45.7"–59.1" · Turning radius: 52.6"
Travel speed (laden/unladen): 4.0 / 4.2 km/h
Lift speed (laden/unladen): 92 / 136 mm/s · Lowering speed (laden/unladen): 112 / 98 mm/s
Motors: 2.2 kW lift · 0.75 kW drive · Controller: Curtis DC
Battery: 24V/50Ah LiFePO4 · Weight: 1,300 lbs
Noise level: 69 dB · Brake: Electromagnetic
Reminder: Charge the unit once a month even when not in use
3-year limited manufacturer’s warranty for peace of mind

From The Manufacturer

The EKKO EB12E-98Li LITHIUM IRON PHOSPHATE Electric Straddle Stacker is designed with versatility in mind, combining the functions of a forklift, reach truck, and walkie stacker. The stacker features a 72” lowered mast, allowing it to easily pass through standard doorways, making it ideal for loading and unloading trucks, stockrooms, and warehouse operations.

Built with high-quality steel and durable components, the EB12E-98Li is designed to withstand demanding operations and tough environments, ensuring reliable performance in various applications.

Brand

Specifications

Model	EB12E-98Li
Power Type	Electric Walkie
Service Weight	1,300 lbs
Noise Level at Operator’s Ear	69 dB
Load Capacity	2,640 lbs @ 24" load center
Max Lift Height	98.42”
Mast Height (Lowered)	72.05”
Extended Mast Height	119.96”
Fork Length	45.28”
Adjustable Fork Width	8.3” - 33.5”
Adjustable Outriggers	45.7” - 59.1”
Turning Radius	52.6”
Lift Speed	5.35 in/sec empty, 3.6 in/sec loaded
Lowering Speed	3.85 in/sec empty, 4.4 in/sec loaded
Travel Speed	3.3 mph empty, 3.0 mph loaded
Max Climbing Ability	6% loaded / 8% unloaded
Battery Type	Lithium Iron Phosphate (LiFePO4)
Battery Voltage / Capacity	24V / 50Ah
Charger	24V/15A Automatic (110VAC plug-in)
Lift Motor	24V / 2200W
Drive Motor	24V / 750W
Controller	24V Curtis Instrument
Drive Wheels	9” x 3” Polyurethane
Load Wheels	(2) 4” x 3” per outrigger
Fork Height (Lowered)	2.56”
Ground Clearance	0.95”
Overall Length	71”
Length to Fork Face	23.82”

Documentation

Operation Manual

Service Manual

Parts Manual

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $100. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EB12E-98Li:

3 yearsFrame, mast and forks
1 yearDrive and lift motors, controller, hydraulics, charger and battery (lithium or lead-acid)
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (888) 378-6244 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(888) 378-6244 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (888) 378-6244 or email support@equipmentnation.com.

EKKO WALKIE STACKERS · EB12E-98Li

LIFT HIGHER. SPEND LESS.

Forklift-height stacking in a narrow, walk-behind machine. Fits tight aisles, doorways and small warehouses.

Capacity2,640 lbLift98″BatteryLithium 24V

2,640 lbCapacity

98″Lift

Lithium 24VBattery

NewFull manufacturer warranty

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

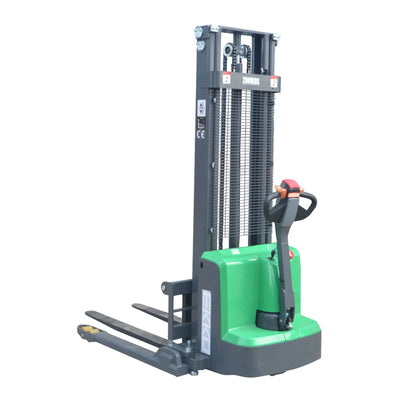

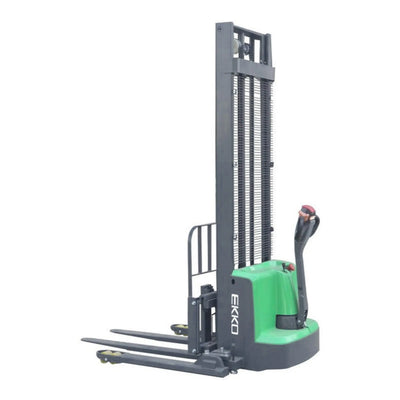

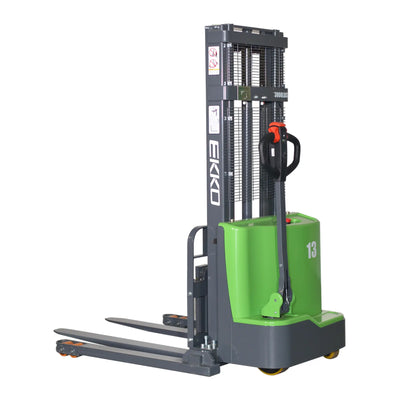

	This itemEB12E-98Li$5,593.60	EB13ES-145Li$8,479.70	EB13C-98Li$5,299.10	EB13E-138Li$6,329.85
Capacity	2,640 lb	2,640 lb	2,800 lb	2,800 lb
Lift	98″	145″	98″	138″
Battery	Lithium 24V	Lithium 24V	Lithium 24V	Lithium 24V
Side shift	No	Yes	No	No
Shipping	Free	Free	Free	Free
	You're viewing this	View details	View details	View details
