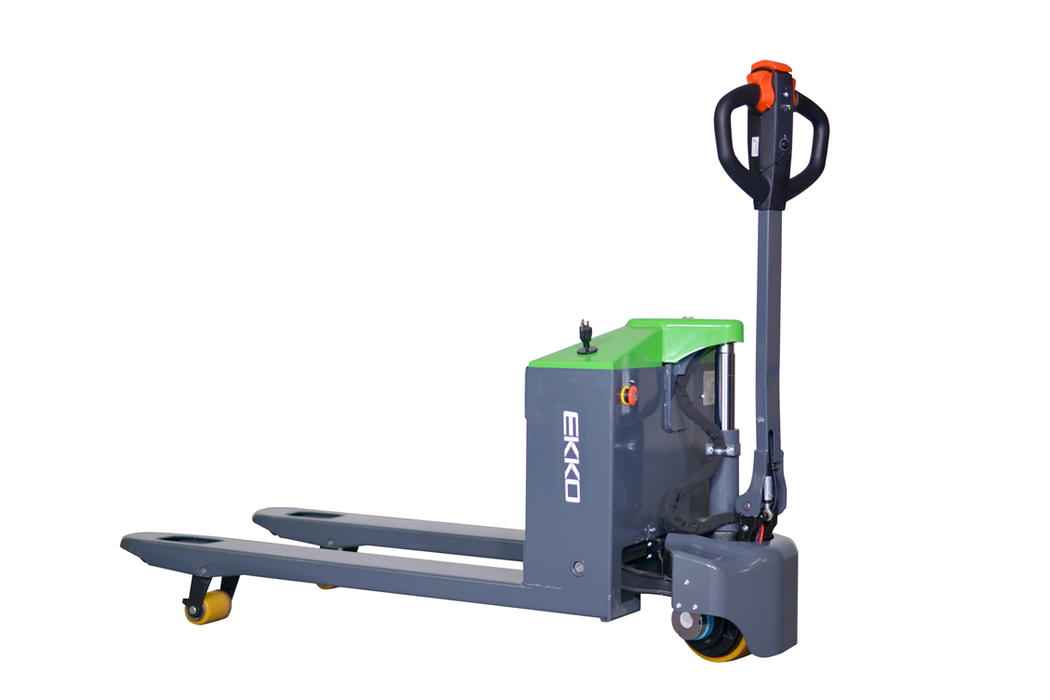

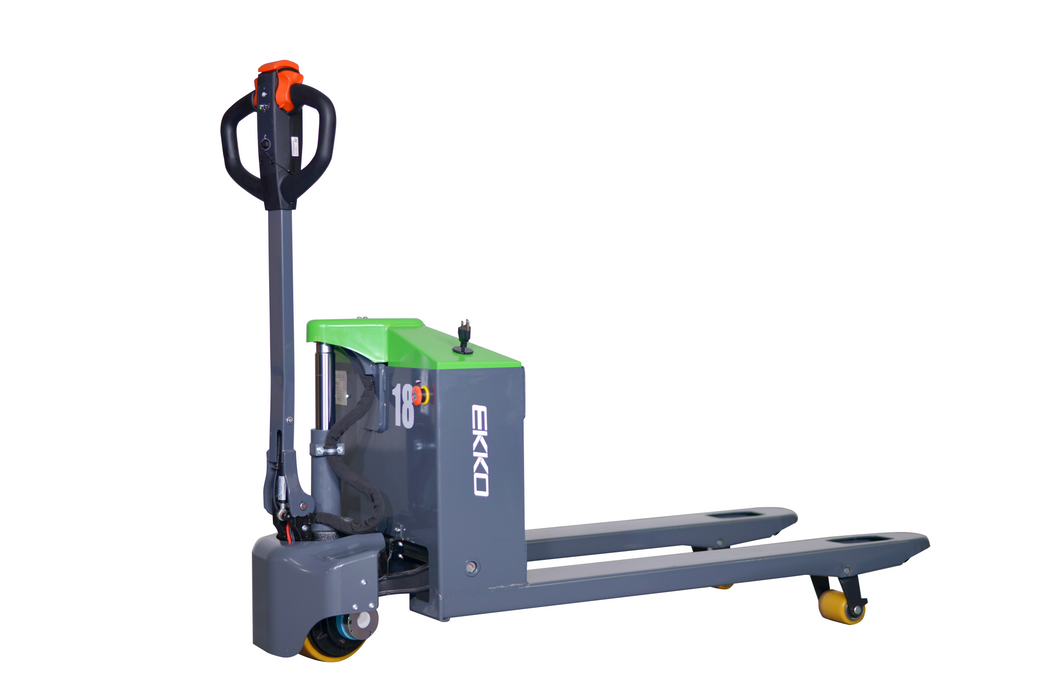

EKKO EP20JLi Full Electric Pallet Jack 4400 lb Capacity

EKKOModel EP20JLiBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $161.41

$3,228.30

$3,228.30 - $3,228.30

$3,228.30

$3,066.89

$3,066.89 - $3,066.89

$3,066.89

Configure your EP20JLi

Compare models

Lift height: 7.8″

7.48″ +$161.50 7.8″ Selected

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EP20JLi

About the EP20JLi

The EKKO EP20JLi is a 4,400 lb lithium walkie pallet jack on standard 27" x 45" forks. A 48V/20Ah LiFePO4 battery and 1.0 kW drive motor give it the most capacity in the JLi range, in the same compact 61.81" chassis.

Forks lower to 2.95" and raise to 7.8", and a 53.7" turning radius with pinwheel capability keeps heavy pallets moving in trailers and tight aisles.

From the manufacturer

The EKKO EP20JLi Lithium Iron Phosphate Electric Walkie Pallet Jack is designed with the versatility of a pallet jack and full power lifting and driving. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high-quality steel and components with durable drives, it is built to handle varied floors, heavy use, impacts and frequent direction changes with confidence.

Highlights

4,400 lb load capacity at a 23.6" load center

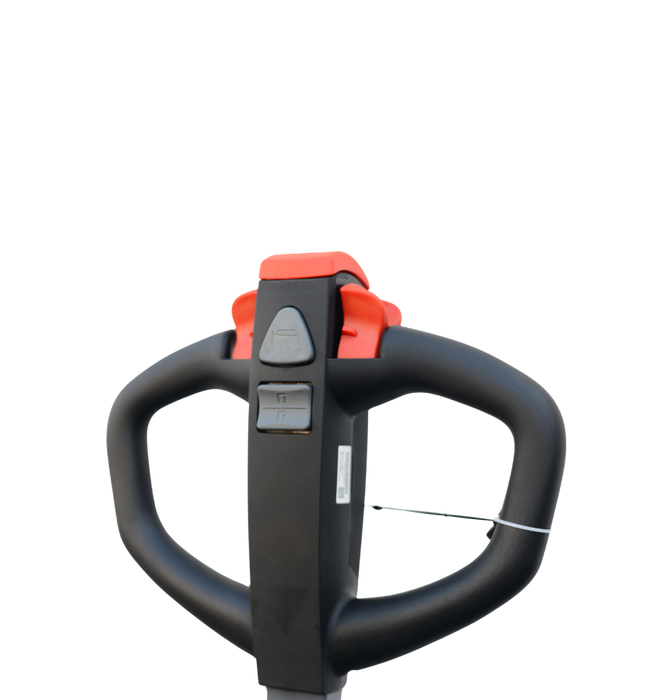

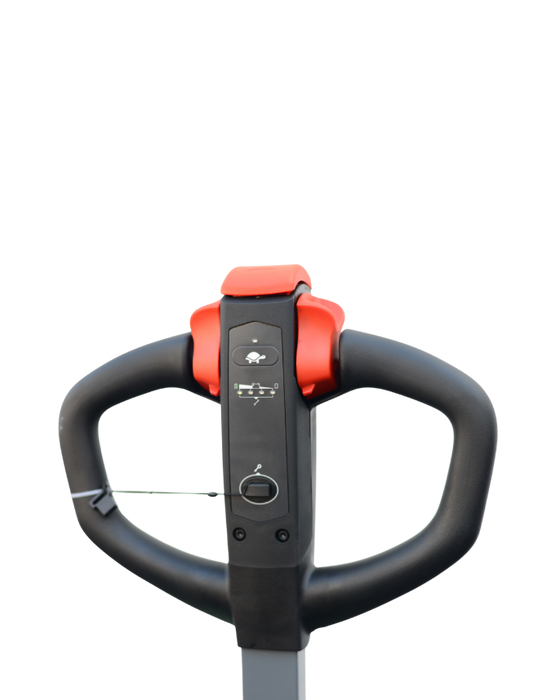

Full power drive and lift from ergonomic handle controls
48V/20Ah lithium iron phosphate (LiFePO4) battery, charger included
27" x 45" forks; 7.8" raised and 2.95" lowered height
Pinwheel capability and a 53.7" turning radius for trailers and tight aisles
Electromagnetic brake; travel speed 2.6 / 2.8 mph loaded/unloaded
Polyurethane wheels and robotically welded steel construction
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Load capacity	4,400 lb
Load center	23.6 in
Max lift height	7.8 in
Lowered fork height	2.95 in

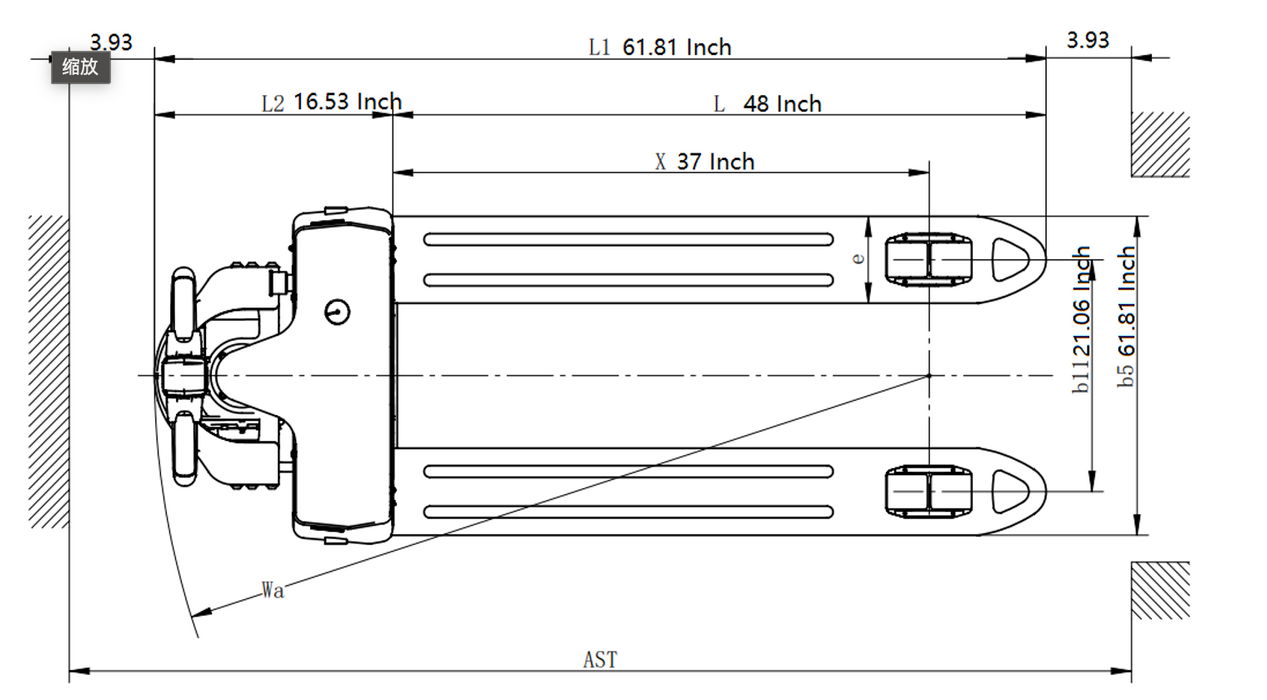

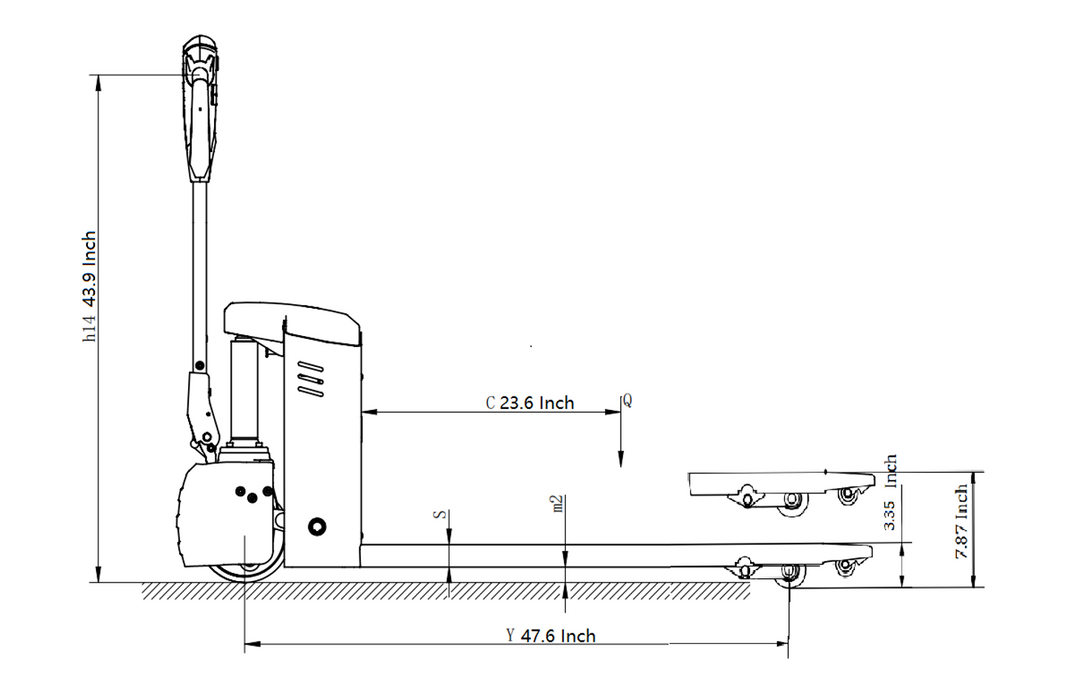

Dimensions

Overall length	61.81 in
Overall width	27 in
Wheelbase	47.6 in
Turning radius	53.7 in
Handle height, operating	30.5–43.9 in
Min. ground clearance	1.38 in

Power & drive

Battery	48V / 20Ah Lithium (LiFePO4)
Battery weight	26.4 lb
Charger	Included
Drive motor	1.0 kW
Lift motor	0.8 kW
Travel speed, loaded / unloaded	2.6 / 2.8 mph
Gradeability, loaded / unloaded	5% / 10%
Brake	Electromagnetic
Drive control	DC
Noise level	≤70 dB(A)

Forks & chassis

Fork length	45 in
Overall fork width	27 in
Single fork width	5.9 in
Fork thickness	1.97 in
Drive wheel	Ø8.26 × 2.75 in
Load wheels	Ø3.15 × 2.36 in
Wheel material	Polyurethane
Pinwheel capability	Yes

General

Model	EP20JLi
Operation	Walkie, powered drive and lift
Service weight	326 lb
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $150. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EP20JLi:

3 yearsFrame, mast and forks
1 yearDrive and lift motors, controller, hydraulics, charger and battery (lithium or lead-acid)
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (844) 455-4327 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(844) 455-4327 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (844) 455-4327 or email support@equipmentnation.com.

LITHIUM WALKIE PALLET JACK · EP20JLi

4,400 LB ON 48V LITHIUM

The EKKO EP20JLi moves 4,400 lb on a 48V/20Ah LiFePO4 battery. It has 27" x 45" forks, a 2.95" lowered height and pinwheel turning.

Capacity4,400 lbPowerLithium 48VLift7.8″

4,400 lbCapacity

Lithium 48VPower

7.8″Lift

27×45″Forks

NewFull manufacturer warranty

BUILT FOR THE JOB

More capacity, compact frame

The EP20JLi is the top-capacity model in EKKO's JLi lithium walkie range. It carries 4,400 lb, 400 lb more than the EP18JLi, on standard 27" x 45" forks. Power steps up too: a 48V/20Ah lithium iron phosphate battery instead of 24V, with a 1.0 kW drive motor and the charger included. Forks lower to 2.95" and raise to 7.8", and a 53.7" turning radius with pinwheel capability helps in trailers and tight aisles. The EP20JLIC shares the 4,400 lb rating and 48V battery in a longer 64" chassis with a 7.48" lift. Choose the EP20JLi for heavy pallets in a compact package.

See full specifications

WHY THE EP20JLI

ENGINEERED WHERE IT COUNTS.

4,400 lb capacity

Rated for 4,400 lb, 400 lb more than the 4,000 lb EP18JLi. It handles dense beverage and grocery pallets that push past 4,000 lb, under full power.

48V/20Ah LiFePO4 battery

A 48V/20Ah lithium iron phosphate battery powers drive and lift, a higher-voltage system than the 24V EP18JLi. The charger is included, so it is ready to charge on arrival.

Standard 27x45" forks

Standard 27" x 45" forks lower to 2.95" for tight pallet openings and raise to 7.8" for travel clearance over dock plates and uneven floor joints.

Tight pinwheel turning

Pinwheel capability lets the jack turn within its footprint in trailers and narrow aisles. Polyurethane wheels roll quietly, and the robot-welded steel frame is built for daily work.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Beverage distribution

Move dense pallets of cased drinks that exceed 4,000 lb from trailers to storage and staging lanes.

Grocery warehouses

Handle heavy pallets of canned and bottled goods through busy receiving, storage and staging areas.

Trailer unloading

Pinwheel inside trailers to line up with heavy pallets and pull them onto the dock under power.

Building supply

Move pallets of tile, fasteners and boxed hardware in indoor warehouses where loads run heavy.

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

	This itemEP20JLi$3,066.89	EP20E-Li$7,750.39	EP20Li$4,843.39
Capacity	4,400 lb	4,400 lb	4,400 lb
Power	Lithium 48V	Lithium 24V	Lithium 24V
Lift	7.8″	7.9″	7.7″
Forks	27×45″	27×48″	27×48″
Shipping	Free	Free	Free
	You're viewing this	View details	View details

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EP20JLI.

Still unsure? Call (844) 455-4327 or email support@equipmentnation.com. Real people, Mon–Fri.

How does the EP20JLi differ from the EP20JLIC?

Both carry 4,400 lb on a 48V/20Ah LiFePO4 battery with 27" wide forks, a 2.95" lowered height and pinwheel turning. The EP20JLi raises to 7.8", measures 61.81" long, turns in 53.7" and lists a 1.0 kW drive motor. The EP20JLIC raises to 7.48", measures 64" long and turns in 57.5".

How does it compare with the EP18JLi?

The EP20JLi carries 4,400 lb on a 48V/20Ah battery. The EP18JLi carries 4,000 lb on a 24V/40Ah battery. Both use 27" x 45" forks with 2.95" lowered and 7.8" raised heights and pinwheel turning. Choose by your heaviest regular load.

What battery does the EP20JLi use?

One 48V/20Ah lithium iron phosphate (LiFePO4) battery, with a charger included. Run-time depends on load weight and travel distance, so it is not published. Call (888) 378-6244 to talk through your daily volume and charging routine before ordering. We will help you plan it.

Is the EP20JLi fully powered?

Yes. It is full electric, with powered driving and lifting. The operator walks with the jack and controls it from the ergonomic handle. There is no manual pulling or pumping, even at the full 4,400 lb rating, which cuts operator fatigue.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $150). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.
