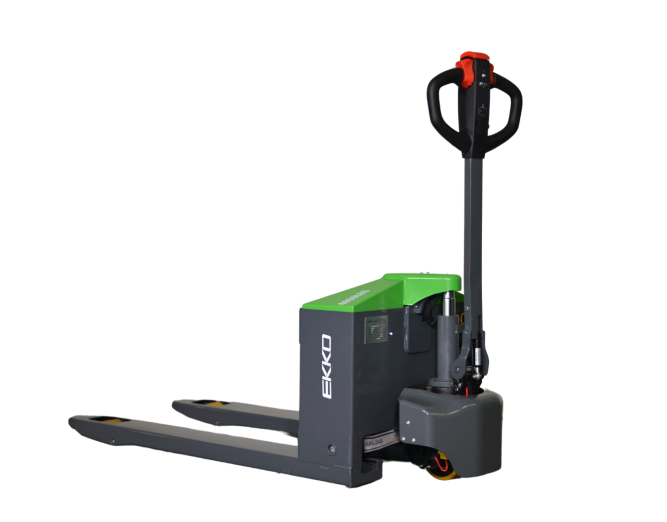

EKKO EP20JLIC Lithium Walkie Pallet Jack 4400 lb Capacity

EKKOModel EP20JLICBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $169.91

$3,398.30

$3,398.30 - $3,398.30

$3,398.30

$3,228.39

$3,228.39 - $3,228.39

$3,228.39

Configure your EP20JLIC

Compare models

Lift height: 7.48″

7.48″ Selected 7.8″ −$161.50

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EP20JLIC

About the EP20JLIC

The EKKO EP20JLIC is a 4,400 lb lithium walkie pallet jack with full power drive and lift, the top capacity in the JLIC series. A 48V/20Ah LiFePO4 battery with included charger powers dense beverage, grocery and building-product pallets.

Its 27" x 45.28" forks lower to 2.95" for low pallet openings, and pinwheel capability helps in trailers and tight back rooms.

From the manufacturer

The EKKO EP20JLIC Lithium Walkie Pallet Jack is designed with the versatility of a pallet jack and full power lifting and driving. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high-quality steel and components with durable drives, it is built to handle varied floors, heavy use, impacts and frequent direction changes with confidence.

Highlights

4,400 lb load capacity at a 23.6" load center
Full power drive and lift from ergonomic handle controls
48V/20Ah lithium iron phosphate (LiFePO4) battery, charger included
27" x 45.28" forks; 7.48" raised and 2.95" lowered height
Pinwheel capability and a 57.5" turning radius for trailers and tight aisles
Electromagnetic brake
Polyurethane wheels and robotically welded steel construction
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Load capacity	4,400 lb
Load center	23.6 in
Max lift height	7.48 in
Lowered fork height	2.95 in

Dimensions

Overall length	64 in
Overall width	27 in
Wheelbase	50.3 in
Turning radius	57.5 in
Handle height, operating	48.2 in
Min. ground clearance	1.06 in

Power & drive

Battery	48V / 20Ah Lithium (LiFePO4)
Battery weight	21.1 lb
Charger	Included
Drive motor	0.75 kW
Lift motor	0.8 kW
Brake	Electromagnetic
Drive control	DC
Noise level	≤70 dB(A)

Forks & chassis

Fork length	45.28 in
Overall fork width	27 in
Single fork width	6.3 in
Fork thickness	2.24 in
Drive wheel	Ø8.27 × 2.95 in
Load wheels	Ø2.91 × 3.66 in
Wheel material	Polyurethane
Pinwheel capability	Yes

General

Model	EP20JLIC
Operation	Walkie, powered drive and lift
Service weight	359 lb
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $150. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EP20JLIC:

3 yearsFrame, mast and forks
1 yearDrive and lift motors, controller, hydraulics, charger and battery (lithium or lead-acid)
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (844) 455-4327 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(844) 455-4327 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (844) 455-4327 or email support@equipmentnation.com.

LITHIUM WALKIE PALLET JACK · EP20JLIC

4,400 LB, 48V, LOW 2.95-INCH ENTRY

The EKKO EP20JLIC is a 48V lithium walkie pallet jack rated for 4,400 lb. Forks lower to 2.95", and pinwheel turning helps in trailers and tight aisles.

Capacity4,400 lbPowerLithium 48VLift7.48″

4,400 lbCapacity

Lithium 48VPower

7.48″Lift

27×45″Forks

NewFull manufacturer warranty

BUILT FOR THE JOB

Top capacity in the JLIC line

The EP20JLIC is the heaviest-duty model in EKKO's JLIC walkie series. It moves 4,400 lb, compared with 4,000 lb on the EP18JLIC and 3,300 lb on the EP15JLIC, and steps up from 24V to a 48V/20Ah LiFePO4 battery, with the charger included. Forks are 27" x 45.28", lowering to 2.95" for low pallet openings and raising to 7.48". Pinwheel capability helps in trailers and back rooms. The EP20JLi shares the 4,400 lb rating and 48V battery in a shorter 61.81" chassis with a 7.8" lift. Choose the EP20JLIC for the heaviest loads in the JLIC layout.

See full specifications

WHY THE EP20JLIC

ENGINEERED WHERE IT COUNTS.

4,400 lb rated capacity

Rated for 4,400 lb, the highest in the JLIC series. It handles dense pallets of beverages, canned goods and building products under full power drive and lift.

48V/20Ah LiFePO4 power

A 48V/20Ah lithium iron phosphate battery powers drive and lift, a higher voltage than the 24V EP15JLIC and EP18JLIC. Battery and charger are included, so it is ready to charge on arrival.

2.95" lowered fork height

Forks lower to 2.95" for pallets with tight fork openings and raise to 7.48" for travel. That low entry height is shared across the JLIC series.

Pinwheel turning capability

Pinwheel turning lets the jack spin within its footprint in trailers, aisles and back rooms. Polyurethane wheels roll quietly, and the robotically welded steel frame is built for daily work.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Beverage distribution

Move heavy pallets of cased drinks that exceed 4,000 lb from trailers to storage and staging lanes.

Grocery receiving

Handle dense grocery pallets through receiving and into back-room storage with powered drive and lift.

Trailer unloading

Pinwheel inside trailers to line up with heavy pallets and pull them onto the dock under power.

Low-entry pallets

Slide under pallets with tight openings at 2.95", then lift heavy loads to 7.48" for travel.

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

	This itemEP20JLIC$3,228.39	EP20E-Li$7,750.39	EP20Li$4,843.39
Capacity	4,400 lb	4,400 lb	4,400 lb
Power	Lithium 48V	Lithium 24V	Lithium 24V
Lift	7.48″	7.9″	7.7″
Forks	27×45″	27×48″	27×48″
Shipping	Free	Free	Free
	You're viewing this	View details	View details

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EP20JLIC.

Still unsure? Call (844) 455-4327 or email support@equipmentnation.com. Real people, Mon–Fri.

How does the EP20JLIC compare with the EP18JLIC?

Both are JLIC-series lithium walkie jacks with pinwheel turning, a 2.95" lowered height and a 7.48" raised height. The EP20JLIC carries 4,400 lb on 48V lithium power. The EP18JLIC carries 4,000 lb on 24V lithium power. Choose by your heaviest regular pallet.

How does it differ from the EP20JLi?

Both carry 4,400 lb on a 48V/20Ah LiFePO4 battery with 27" wide forks, a 2.95" lowered height and pinwheel turning. The EP20JLIC raises to 7.48", measures 64" long and turns in 57.5". The EP20JLi raises to 7.8", measures 61.81" long and turns in 53.7".

What fork size does the EP20JLIC have?

The forks are 27" wide overall and 45.28" long, with each fork 6.3" wide. They lower to 2.95" for entry and raise to 7.48" for travel. That suits common pallets with standard fork openings. Call (888) 378-6244 if your pallets are unusual.

Is the EP20JLIC fully powered?

Yes. It has full power driving and lifting on 48V lithium. The operator walks with the jack and controls travel and lift from the ergonomic handle, with no manual pulling or pumping, even at its full 4,400 lb rating. That cuts fatigue on long days.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $150). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.
