EKKO EK14S-130 Counterbalanced Walkie Stacker SIDE-SHIFTING

EKKOModel EK14S-130Brand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $879.90

$17,598.00

$17,598.00 - $17,598.00

$17,598.00

$16,718.10

$16,718.10 - $16,718.10

$16,718.10

Configure your EK14S

Compare models

Lift height: 130″

130″ Selected 189″ Lithium only

Battery: Lead-acid 24V

Lead-acid 24V Selected Lithium 24V +$1,520

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EK14S-130

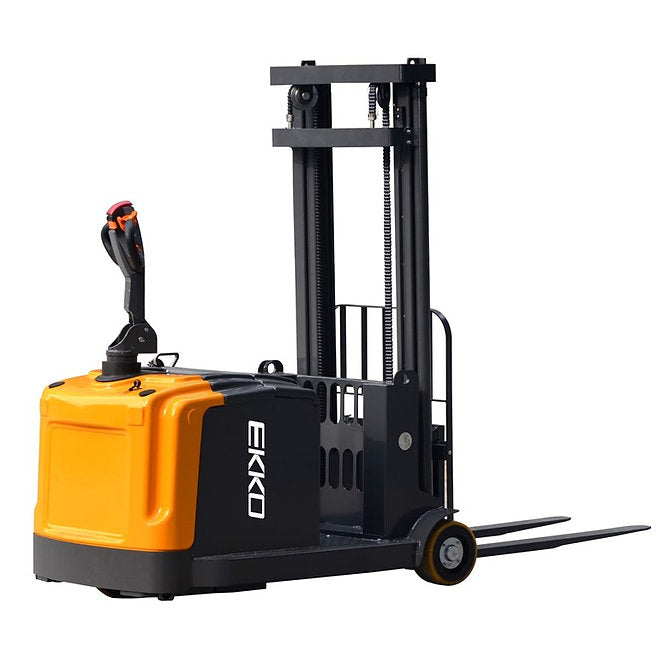

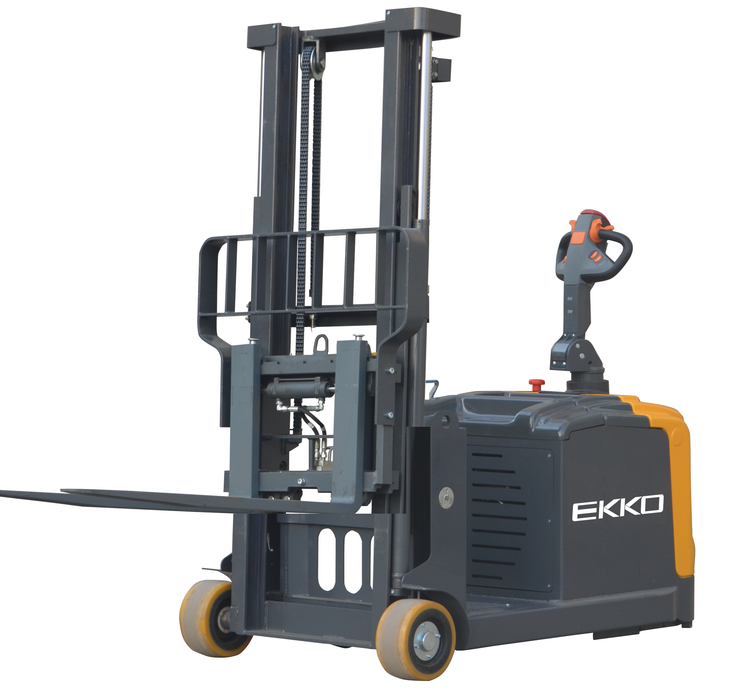

About the EK14S-130

The EKKO EK14S-130 is a fully powered counterbalanced walkie stacker with a side-shifting carriage. It lifts 3,300 lb to 130" at a 24" load center, and 4" of side shift lets the operator line the forks up with the rack without repositioning the machine.

With no straddle legs out front, the 45.3" forks go straight into the pallet and adjust from 8.6" to 28.3". A Curtis controller runs the 24V AC drive motor, electronic power steering lightens the tiller, and power comes from a 24V/210Ah battery with a 24V/30A charger.

From the manufacturer

The EKKO EK14S-130 fully powered counterbalanced walkie stacker includes side-shifting and combines the versatility of a forklift with a walkie stacker. It is suited to loading and unloading trucks, loading docks, stockrooms, manufacturing floors and warehouses.

It is made from high-quality steel and components with durable drives, built to handle daily use, impacts and frequent changes of direction.

Highlights

3,300 lb load capacity at a 24" load center
130" maximum lift height (10.83 ft)
Side-shifting carriage with 4" of side shift
Counterbalanced design: no straddle legs, forks enter pallets directly
Adjustable forks 8.6"–28.3" overall width, 45.3" long
Mast tilt 2° forward / 5° back; 84" lowered mast
Curtis controller, 24V AC drive motor and electronic power steering
24V/210Ah battery with 24V/30A charger
57" turning radius, polyurethane wheels, steel construction with robotic welding
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

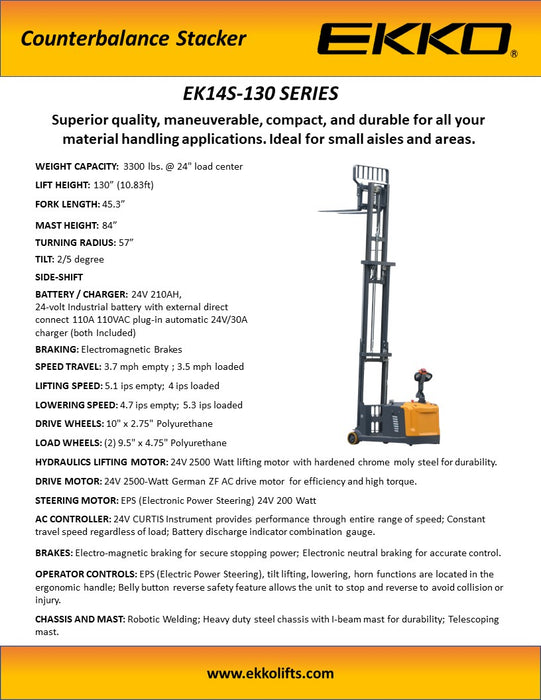

Specifications

Capacity & lift

Load capacity	3,300 lb
Max lift height	130 in
Load center	24 in
Side shift	4 in
Mast tilt (forward/back)	2° / 5°
Lift speed (laden/unladen)	4 / 5.1 in/s
Lowering speed (laden/unladen)	5.3 / 4.7 in/s

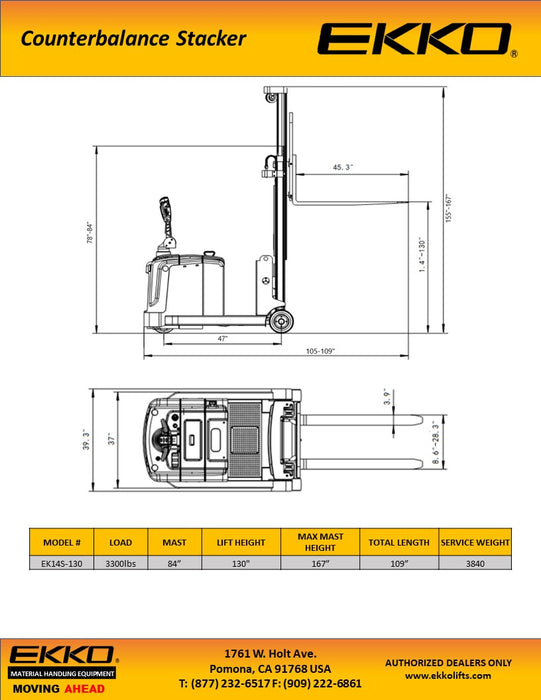

Dimensions

Turning radius	57 in
Overall length	109 in
Overall width	39 in
Wheelbase	47 in
Lowered mast height	84 in
Extended mast height	167 in

Power & drive

Battery	24V / 210Ah (side)
Charger	24V / 30A
Drive motor	AC 24V / 2,500W
Lift motor	24V / 2,500W
Steering	EPS, 24V / 200W motor
Gradeability (laden/unladen)	6% / 10%

Forks & chassis

Fork size (T/W/L)	1.4 / 4 / 45.3 in
Adjustable fork width	8.6–28.3 in
Tires	Polyurethane

General

Model	EK14S-130
Service weight	3,840 lb
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $150. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EK14S-130:

3 yearsFrame, mast and forks
1 yearDrive and lift motors, controller, hydraulics, charger and battery (lithium or lead-acid)
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (844) 455-4327 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(844) 455-4327 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (844) 455-4327 or email support@equipmentnation.com.

SIDE-SHIFT COUNTERBALANCED WALKIE STACKER · EK14S-130

SIDE SHIFT AT FULL 3,300 LB

The EKKO EK14S-130 lifts 3,300 lb to 130" and adds 4" of side shift to the EK14 platform, with electronic power steering and 45.3" forks.

Capacity3,300 lbLift130″BatteryLead-acid 24V

3,300 lbCapacity

130″Lift

Lead-acid 24VBattery

YesSide shift

NewFull manufacturer warranty

BUILT FOR THE JOB

Line up the load, not the machine

The EK14S-130 is the EK14 with a side-shifting carriage. It lifts 3,300 lb to 130" (10.83 ft) at a 24" load center, and 4" of side shift moves the forks sideways to meet the rack opening instead of backing out and re-approaching. It keeps the full-size 45.3" forks, adjustable from 8.6" to 28.3", plus 2° forward and 5° back tilt, electronic power steering and a Curtis-controlled 24V AC drive. Power comes from a 24V/210Ah battery with a 24V/30A charger. For lithium, see the EK14S-130Li; for 189", the EK14S-189Li.

See full specifications

WHY THE EK14S-130

ENGINEERED WHERE IT COUNTS.

3,300 lb to 130"

Rated for 3,300 lb at a 24" load center with a 130" (10.83 ft) maximum lift. The mast stands 84" lowered and extends to 167" at full height, so check overhead clearance.

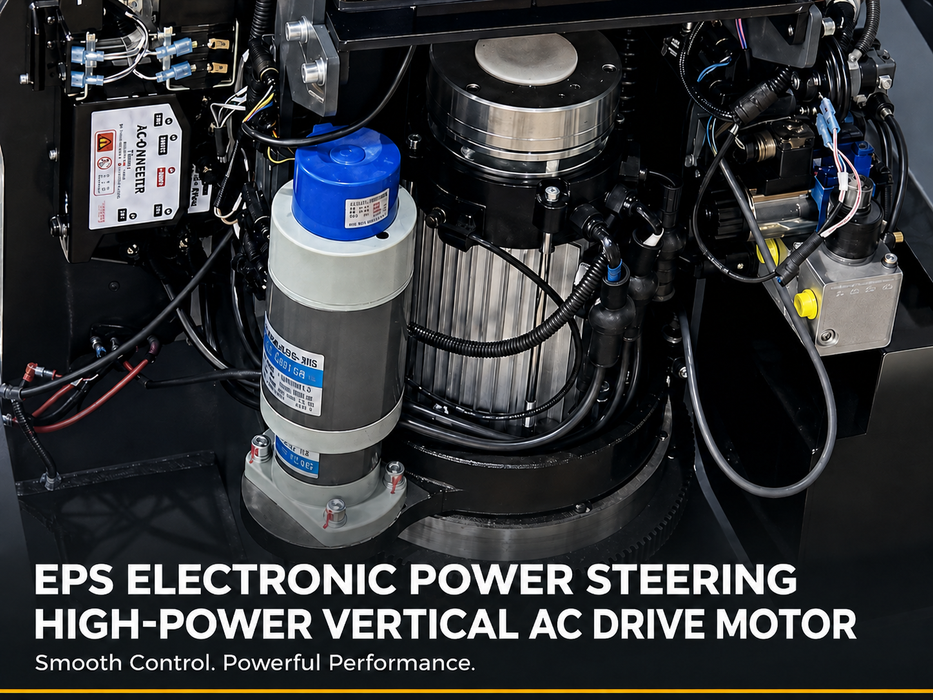

24V Power, AC Drive

A 24V/210Ah battery and 24V/30A charger feed a 2,500W AC drive motor and a 2,500W lift motor. A Curtis controller keeps travel and lifting smooth and predictable.

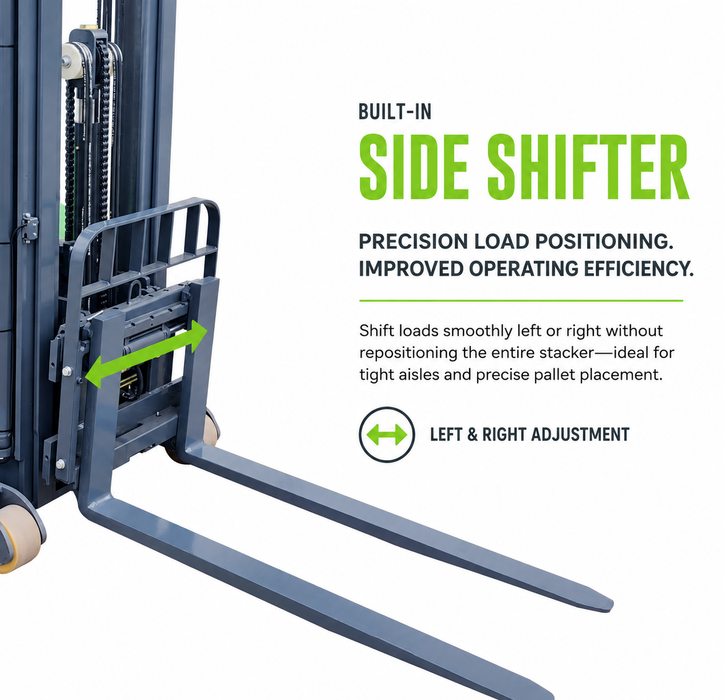

4" Side Shift

The side-shifting carriage moves the forks sideways to meet the rack opening, so the operator lines up the load without repositioning the machine. The 45.3" forks adjust from 8.6" to 28.3".

Steering and Control

Electronic power steering reduces effort at the tiller, and a Curtis controller keeps travel and lift smooth. The mast tilts 2° forward and 5° back; as a counterbalanced stacker it needs no straddle legs.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Tight rack openings

Use the 4" side shift to center pallets on the beam in tight bays without backing out and re-approaching.

Warehouse racking

Place and retrieve pallets up to 130" in racking where a sit-down forklift is too large for the aisle.

Receiving docks

Take pallets off the dock plate, stage them by lane and put them away with the same machine.

Manufacturing floors

Feed production lines and move work-in-process pallets with powered travel and lift instead of hand pumping.

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

	This itemEK14S-130$16,718.10	EK14-118/130$15,198.10	EK14C-130$16,414.10	EK14CS-130Li$18,238.10
Capacity	3,300 lb	3,300 lb	3,000 lb	3,000 lb
Lift	130″	118″ / 130″	130″	130″
Battery	Lead-acid 24V	Lead-acid 24V	Lead-acid 24V	Lithium 24V
Side shift	Yes	No	No	Yes
Shipping	Free	Free	Free	Free
	You're viewing this	View details	View details	View details

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EK14S-130.

Still unsure? Call (844) 455-4327 or email support@equipmentnation.com. Real people, Mon–Fri.

How does the EK14S-130 differ from the EK14?

The EK14S-130 adds a side-shifting carriage with 4" of side shift. The EK14 has a fixed carriage. Both carry 3,300 lb at a 24" load center on 45.3" forks with 2° forward and 5° back tilt, electronic power steering and a 24V/210Ah battery. The EK14 comes in 118", 130" and 138" heights.

Should I choose the EK14S-130 or the EK14S-130Li?

Both lift 3,300 lb to 130" with 4" of side shift and an 84" lowered mast. The EK14S-130 uses a 24V/210Ah battery with a 24V/30A charger. The EK14S-130Li uses a 24V/150Ah lithium battery with a 24V/50A charger and needs no watering. Choose lithium to skip battery watering; choose the EK14S-130 if budget comes first.

What does side shift do on the EK14S-130?

The side-shifting carriage moves the forks sideways, with 4" of travel listed, while the machine stays put. At the rack you can center a pallet on the beam or line the forks up with pallet openings without backing out and re-approaching. That saves time and helps keep loads clear of uprights at 130".

What overhead clearance does the EK14S-130 need?

With the mast lowered, the EK14S-130 stands 84" tall, above a typical 80-inch interior door, and it is 39" wide. At full lift the mast extends to 167", so check ceiling, lights and sprinklers in the aisle. Call (888) 378-6244 with your measurements and we will confirm the fit.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $150). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.

CUSTOMER REVIEWS

OWNERS ON THE EK14S-130.

No reviews yet. Customer reviews will appear here as they come in.

Questions before you buy? Call (844) 455-4327.

Own the EK14S-130? Be the first to review it.

How does it handle your loads and lift heights?
How does the battery hold up over a full shift?
How was ordering, delivery and setup?
