EKKO EK18RR-335Li Reach Truck – 4,000 lb Capacity, 335" Lift, Stand-Up Narrow Aisle, Lithium Battery

EKKOModel EK18RR-335LiBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $2,999.95

$59,999.00

$59,999.00 - $59,999.00

$59,999.00

$56,999.05

$56,999.05 - $56,999.05

$56,999.05

Configure your EK18RR

Compare models

Lift height: 335″

196″ −$6,650 275″ −$3,800 335″ Selected

Battery: Lithium 48V/400Ah

48V/420Ah −$3,800 Lithium 48V/400Ah Selected

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EK18RR-335Li

About the EK18RR-335Li

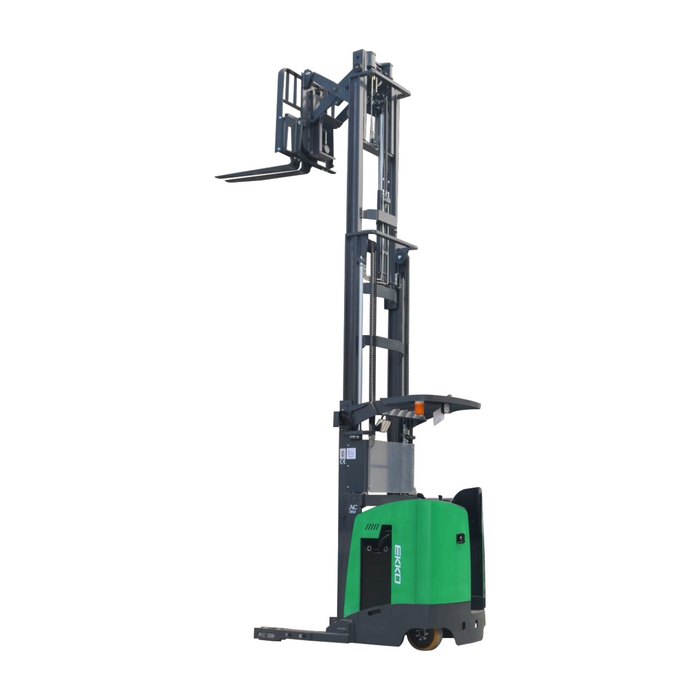

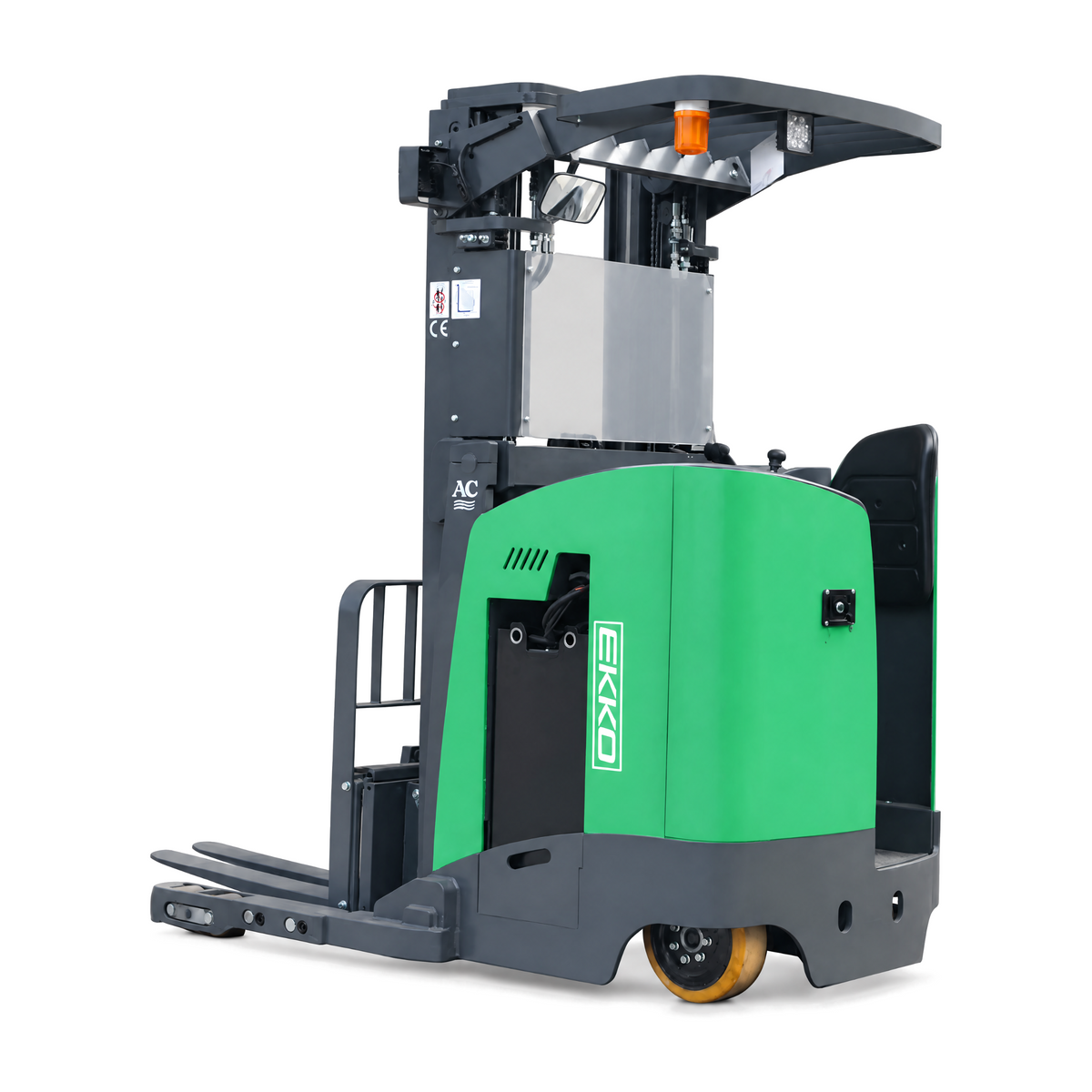

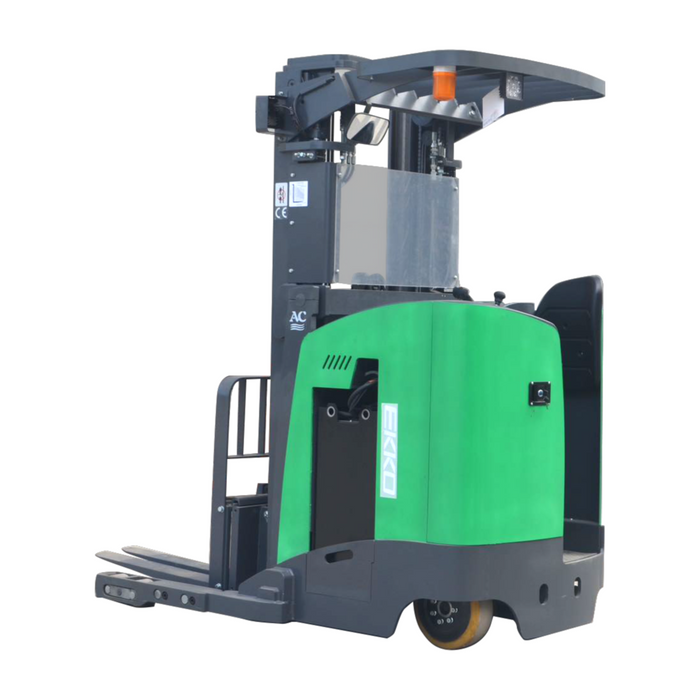

The EKKO EK18RR-335Li stand-up reach truck lifts 4,000 lb to 335" (about 28 ft) on a triple mast with tilt and reaches 22.44" into the rack. A 75" turning radius and 54.72" width let it work narrow aisles, so more of the building goes to racking.

The operator stands in the compartment with a clear view up the mast. Side-shifting forks, a Curtis controller and electronic power steering give precise placement at height, and the 48V/400Ah lithium battery and 48V/200A three-phase charger are included.

From the manufacturer

The EKKO EK18RR-335Li Stand-up Narrow Aisle Reach Truck combines the versatility of a forklift, a reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

It is made from high-quality steel and components with durable drives built to withstand daily use, impacts and directional changes. Every unit is robotically welded and uses a Curtis controller, electronic power steering and a German AC drive motor.

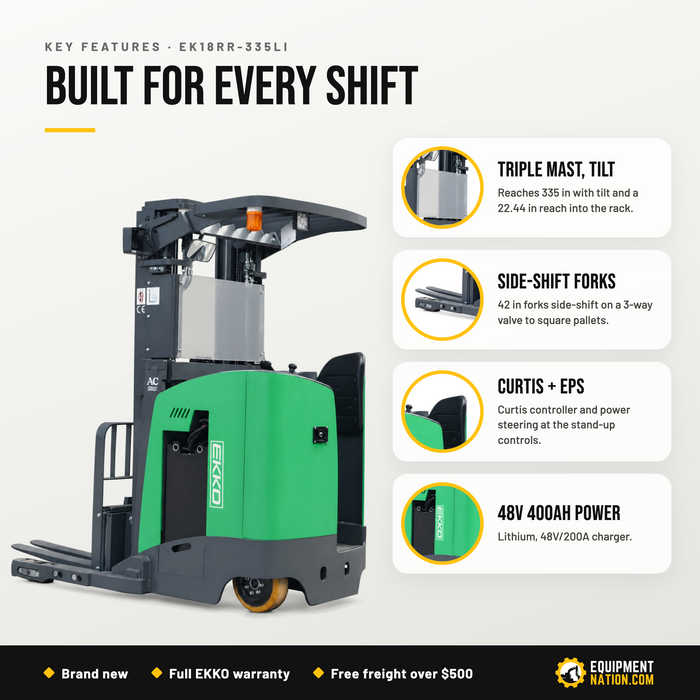

Highlights

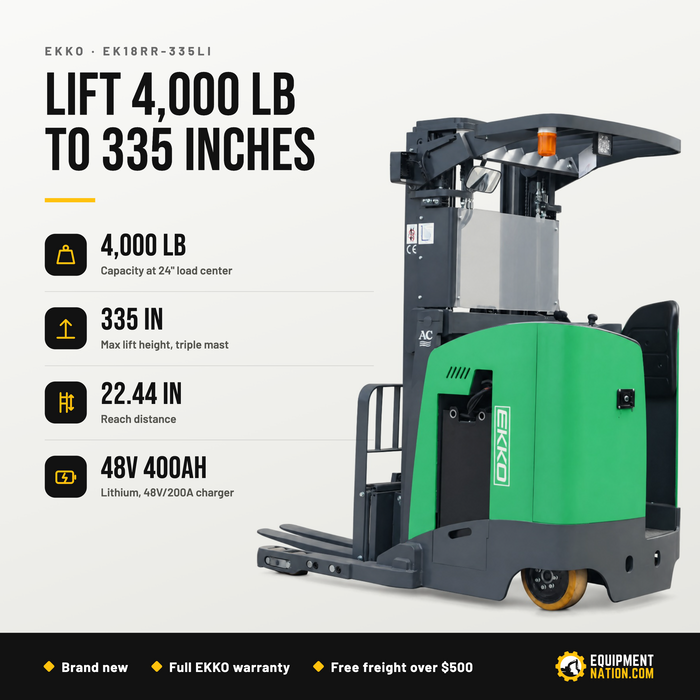

4,000 lb capacity at a 24" load center
335" maximum lift height on a triple mast with tilt
22.44" reach distance
Side-shifting forks (3-way valve), 42" long, adjustable to 35.04"
75" turning radius and 54.72" overall width for narrow aisles
6 kW German AC drive motor, 11 kW lift motor, Curtis controller and EPS
48V/400Ah lithium battery and 48V/200A three-phase charger included
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Load capacity	4,000 lb
Max lift height	335 in
Load center	24 in
Reach distance	22.44 in
Mast	Triple, with tilt

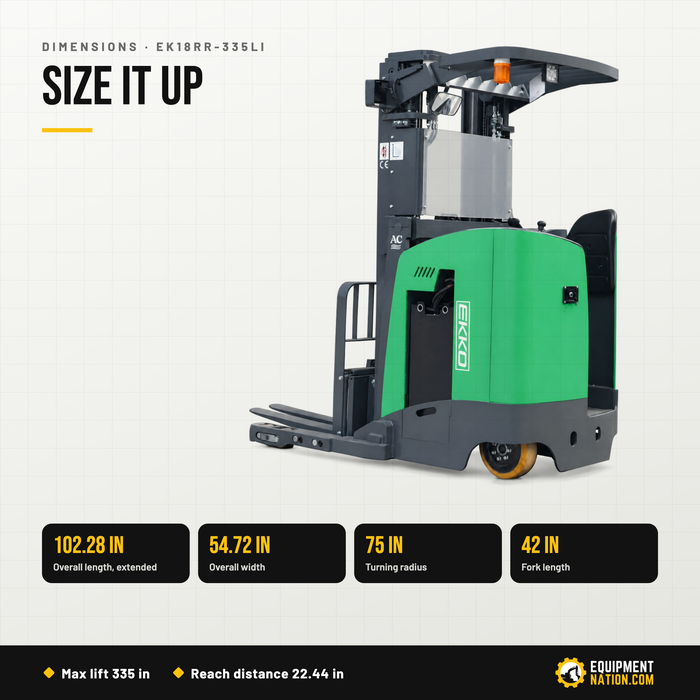

Dimensions

Overall length (extended)	102.28 in
Overall width	54.72 in
Turning radius	75 in

Power & drive

Battery	48V / 400Ah lithium
Charger	48V DC / 200A, 440V three-phase input
Drive motor	6 kW German AC, 48V
Lift motor	11 kW, 48V
Steering	Electronic power steering (EPS)
Controller	Curtis

Forks & chassis

Fork size (T × W × L)	1.58 × 4.72 × 42 in
Adjustable fork width	7.9–35.04 in
Side shift	Yes, 3-way valve
Wheels	Polyurethane

General

Model	EK18RR-335Li
Operation	Stand-up rider
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $100. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EK18RR-335Li:

3 yearsFrame, mast and forks
1 yearTransmission, drive and lift motors, controllers, charger, hydraulic pump, sensors
Up to 5 yearsLithium battery on EKKO's designated lithium models (1 year on other batteries)
6 monthsLabor on specified models, with EKKO's prior approval
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (888) 378-6244 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(888) 378-6244 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (888) 378-6244 or email support@equipmentnation.com.

LITHIUM STAND-UP REACH TRUCK · EK18RR-335Li

335" REACH, LITHIUM POWERED

The EKKO EK18RR-335Li lifts 4,000 lb to 335" on a triple mast with 22.44" of reach, side-shifting forks and a 48V/400Ah lithium battery and a 48V/200A three-phase charger.

Capacity4,000 lbLift335″Reach22.44″

4,000 lbCapacity

335″Lift

22.44″Reach

Lithium 48V/400AhBattery

NewFull manufacturer warranty

BUILT FOR THE JOB

Top-of-the-Rack Reach

The EK18RR-335Li is built for warehouses that store upward instead of outward. It lifts 4,000 lb at a 24" load center to 335" (about 28 ft) on a triple mast with tilt, and the 22.44" reach sets pallets deep into the bay. It keeps the family's 54.72" width and 75" turning radius for narrow aisles. The operator stands in the compartment with a clear view up the mast, while a 6 kW German AC drive, Curtis controller and EPS steering keep travel precise. It is the tallest lithium model in the family; the EK18RR-275Li and 196Li cover lower racking.

See full specifications

WHY THE EK18RR-335LI

ENGINEERED WHERE IT COUNTS.

4,000 lb to 335"

A triple mast with tilt lifts 4,000 lb at a 24" load center to 335". The 22.44" reach places pallets deep into high beam levels without driving under the rack.

48V/400Ah Lithium

A 48V/400Ah lithium battery with a 48V/200A three-phase charger powers a 6 kW German AC drive motor and an 11 kW lift motor. Lithium means no battery watering routine.

Narrow-Aisle Geometry

A 75" turning radius, 54.72" width and 102.28" extended length let the truck work narrow aisles, so more floor space goes to racking and less to travel lanes.

Side Shift and EPS

Side-shifting forks on a 3-way valve square pallets at height without repositioning the truck. EPS steering, a Curtis controller and robotically welded steel handle constant directional changes.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

High-Bay Distribution

Serve beam levels up to 335" in distribution centers that need the most pallet positions per square foot.

3PL Warehouses

Store more customer pallets in the same building and handle frequent put-away and retrieval in narrow aisles.

Beverage and Grocery

Rack heavy case-packed pallets high in dense indoor storage while keeping aisles narrow and traffic moving.

Building Products

Store palletized flooring, tile and hardware high above fast-moving floor-level stock in narrow-aisle warehouses.

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

	This itemEK18RR-335Li$56,999.05	ER15-138Li$24,224.05	EH15T$22,799.05	EH15TH$24,224.05
Capacity	4,000 lb	3,300 lb	3,300 lb	3,300 lb
Lift	335″	138″	138″	216″
Reach	22.44″	19.7″	19.7″	19.7″
Battery	Lithium 48V/400Ah	Lithium 24V/200Ah	24V/270Ah	24V/270Ah
Shipping	Free	Free	Free	Free
	You're viewing this	View details	View details	View details

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EK18RR-335LI.

Still unsure? Call (888) 378-6244 or email support@equipmentnation.com. Real people, Mon–Fri.

How high does the EK18RR-335Li reach compared with its siblings?

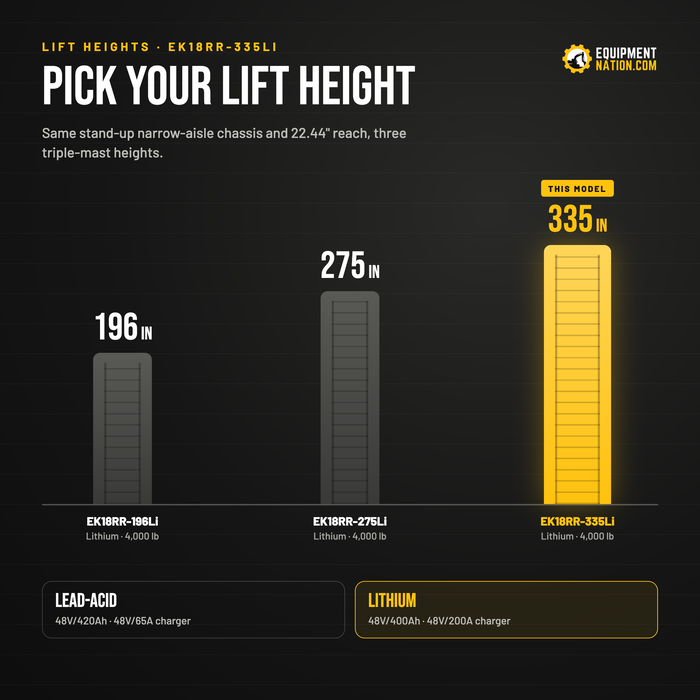

The EK18RR-335Li lifts to 335". The EK18RR family shares 4,000 lb capacity, 22.44" reach and a 75" turning radius, with triple masts at 196", 275" and 335" in both lead-acid (48V/420Ah) and lithium (48V/400Ah) versions. Call (888) 378-6244 and we will match the mast to your top beam.

What is the lowered mast height of the EK18RR-335Li?

EKKO's published data does not list a separate lowered mast height for the 335" mast. Taller masts stand taller when lowered, so measure your doorways, sprinkler lines and door tracks, then call (888) 378-6244. We will confirm the exact lowered height with EKKO before you order.

What forks come on the EK18RR-335Li?

Forks are 42" long, measuring 1.58" x 4.72", and adjust out to 35.04". Side shift on a 3-way valve lets the operator align pallets in the rack without moving the truck, which matters most at the top levels. Capacity is 4,000 lb at a 24" load center.

What power does the EK18RR-335Li charger need?

The included 48V/200A charger is a three-phase unit, listed at 440V input in EKKO's spec table. Confirm three-phase service near your charging area before delivery. Call (888) 378-6244 and we will confirm the input voltage with EKKO and walk through it with you.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $100). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.

CUSTOMER REVIEWS

OWNERS ON THE EK18RR-335LI.

No reviews yet. Customer reviews will appear here as they come in.

Questions before you buy? Call (888) 378-6244.

Own the EK18RR-335Li? Be the first to review it.

How does it handle your loads and lift heights?
How does the battery hold up over a full shift?
How was ordering, delivery and setup?
