EKKO ER15-177Li Walkie Reach Truck – 3,300 lb Capacity, 177" Lift, 24V Lithium Battery

EKKOModel ER15-177LiBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $1,349.95

$26,999.00

$26,999.00 - $26,999.00

$26,999.00

$25,649.05

$25,649.05 - $25,649.05

$25,649.05

Configure your ER15

Compare models

Lift height: 177″

138″ −$1,425 177″ Selected 189″ +$1,425 216″ +$2,850

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · ER15-177Li

About the ER15-177Li

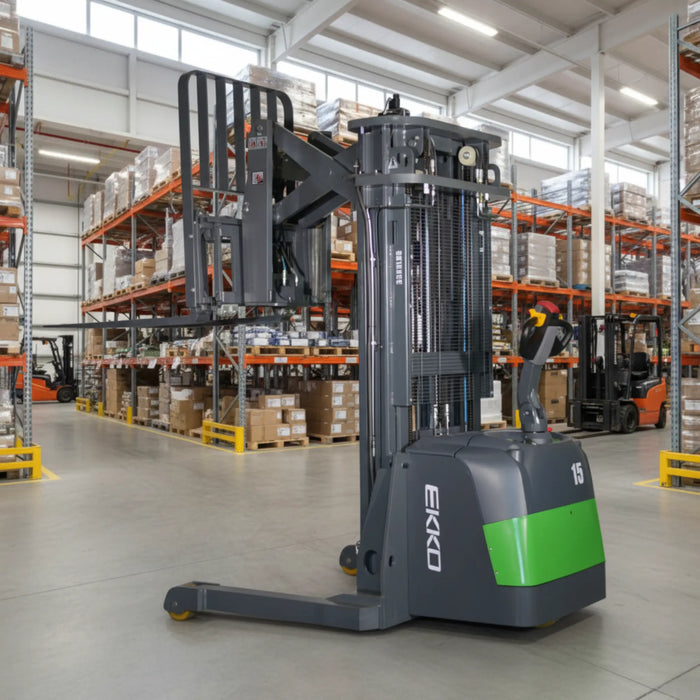

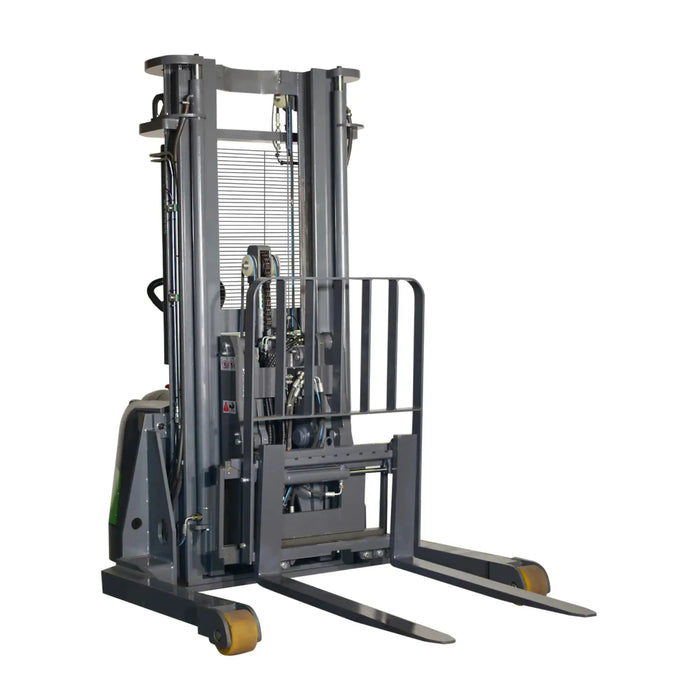

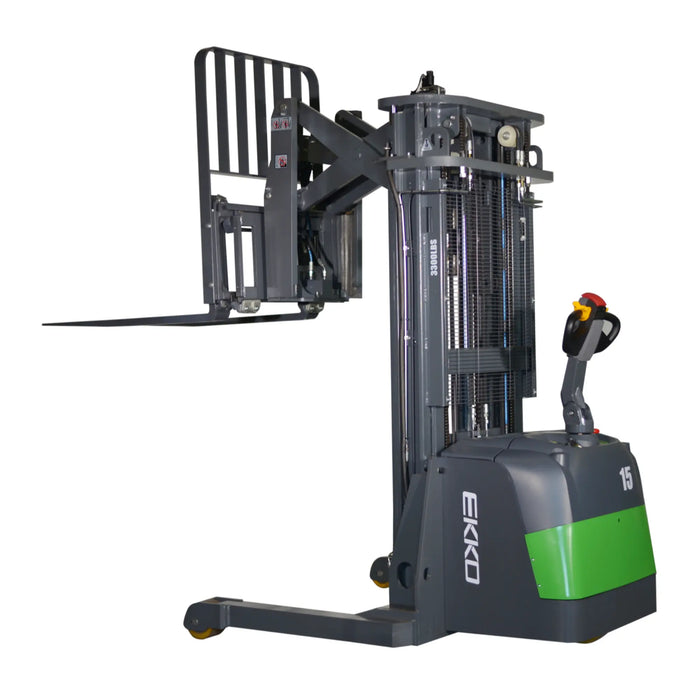

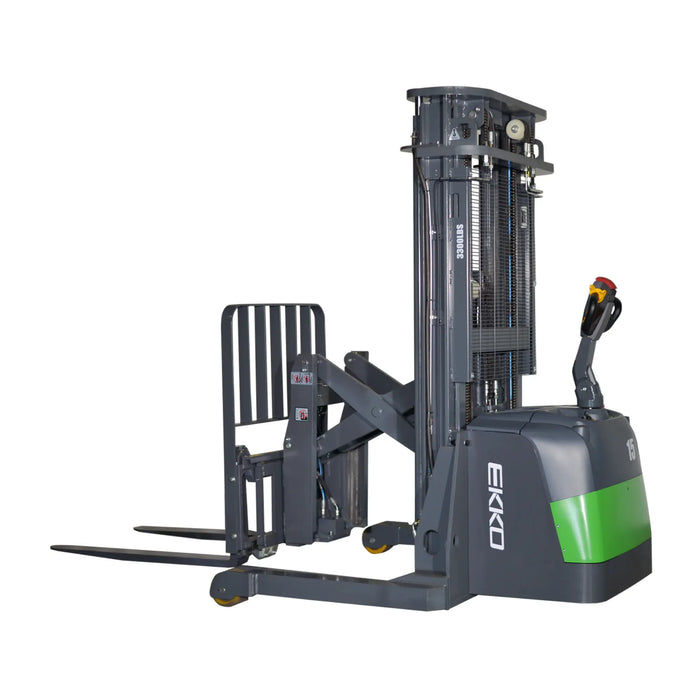

The EKKO ER15-177Li is a lithium walkie reach truck for warehouses that need to reach into racking without a ride-on truck. It lifts 3,300 lb to 177" (14.75 ft) with 60.2" of free lift, reaches 19.7" into the rack and fine-tunes placement with side shift and tilt.

The operator walks at the tiller with electronic power steering and a Curtis controller, and the 86.6" chassis turns in 63.4". A 24V/200Ah lithium-ion battery powers a 1.5 kW AC drive and 4.5 kW lift motor, and the 24V/50A charger is included.

From the manufacturer

The EKKO ER15-177Li Walkie Reach Truck combines the versatility of a forklift, a reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

It is made from high-quality steel and components with durable drives built to withstand daily use, impacts and directional changes, with robotic welding, polyurethane wheels and an ergonomic handle and controls.

Highlights

3,300 lb capacity at a 24" load center
177" maximum lift height (14.75 ft)
60.2" free lift
19.7" reach distance with side shift and tilt
82.3" lowered mast height
86.6" long with a 63.4" turning radius
Forks 1.38" × 3.9" × 45.3", 32.2" fork width
Curtis controller, EPS steering and lift control valve
24V/200Ah lithium-ion battery and 24V/50A charger included
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Load capacity	3,300 lb
Max lift height	177 in
Free lift	60.2 in
Load center	24 in
Reach distance	19.7 in
Side shift	Yes
Tilt	Yes

Dimensions

Lowered mast height	82.3 in
Overall length	86.6 in
Overall width (body / legs)	32.3 / 59.1 in
Turning radius	63.4 in

Power & drive

Battery	24V / 200Ah lithium-ion
Charger	24V / 50A
Drive motor	1.5 kW AC, 24V
Lift motor	4.5 kW, 24V
Steering	Electronic power steering (EPS)
Controller	Curtis

Forks & chassis

Fork size (T × W × L)	1.38 × 3.9 × 45.3 in
Fork width	32.2 in
Wheels	Polyurethane

General

Model	ER15-177Li
Operation	Walkie (walk-behind)
Service weight	4,565 lb
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $150. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the ER15-177Li:

3 yearsFrame, mast and forks
1 yearTransmission, drive and lift motors, controllers, charger, hydraulic pump, sensors
Up to 5 yearsLithium battery on EKKO's designated lithium models (1 year on other batteries)
6 monthsLabor on specified models, with EKKO's prior approval
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (844) 455-4327 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(844) 455-4327 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (844) 455-4327 or email support@equipmentnation.com.

LITHIUM WALKIE REACH TRUCK · ER15-177Li

177" LIFT WITH 60" FREE LIFT

The EKKO ER15-177Li lifts 3,300 lb to 177" with 60.2" of free lift and 19.7" of reach. It is powered by a 24V/200Ah lithium-ion battery.

Capacity3,300 lbLift177″Reach19.7″

3,300 lbCapacity

177″Lift

19.7″Reach

Lithium 24V/200AhBattery

NewFull manufacturer warranty

BUILT FOR THE JOB

More Height, Same Nimble Footprint

The ER15-177Li is the step up for warehouses whose racking tops out around 14.75 ft. It keeps the compact ER15 walkie format, including an 86.6" length, 63.4" turning radius, side shift and tilt, and a 24V/200Ah lithium battery. It extends lift to 177" and adds 60.2" of free lift. That free lift lets the forks rise about five feet before the mast grows, which helps under mezzanines and low overhead obstructions. The operator walks at the tiller with EPS steering, so the controls are easy to learn for crews moving up from walkie stackers.

See full specifications

WHY THE ER15-177LI

ENGINEERED WHERE IT COUNTS.

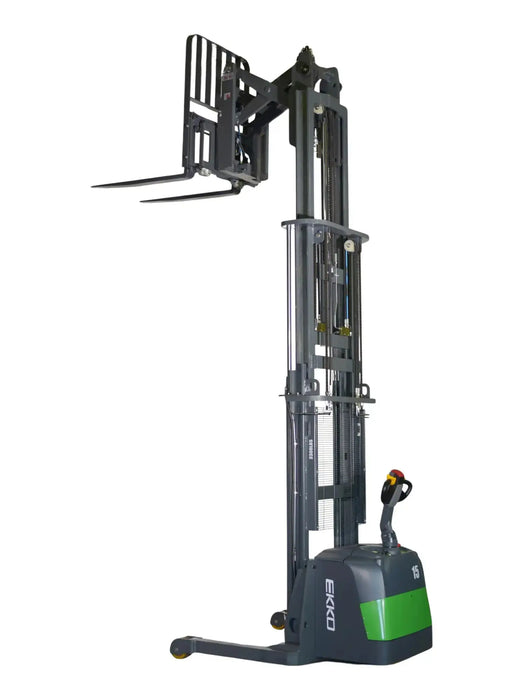

177" Lift, 60.2" Free Lift

Lift 3,300 lb at a 24" load center to 177", or 14.75 ft. The 60.2" of free lift supports work under mezzanines and other low overhead obstructions.

24V/200Ah Lithium-Ion Battery

The 24V/200Ah lithium-ion pack comes with a 24V/50A charger. A 1.5 kW AC drive motor and a 4.5 kW lift motor provide smooth, predictable travel and lifting.

63.4" Turning Radius

An 86.6" overall length, 32.3" body width and 63.4" turning radius keep the ER15-177Li agile in tight aisles, narrow staging lanes and crowded receiving areas.

Side Shift, Tilt and EPS

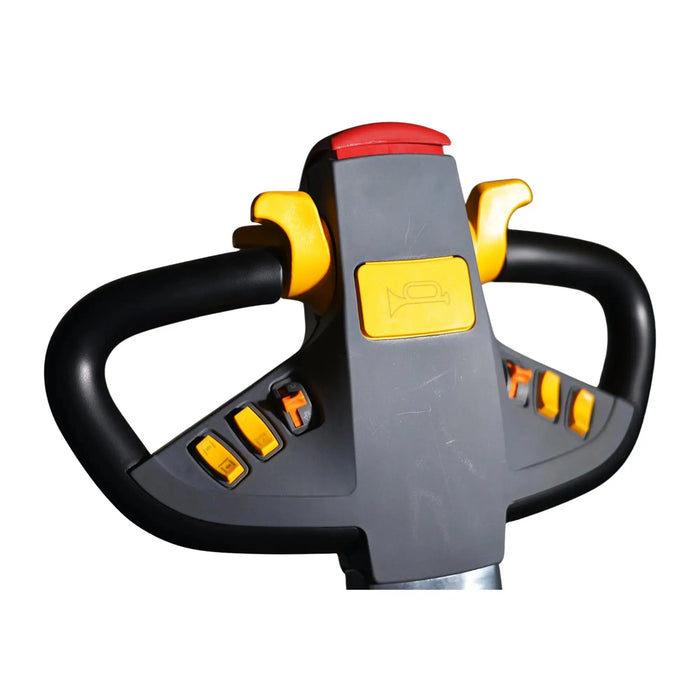

Side shift and tilt fine-tune placement at height, while electronic power steering and a Curtis Instrument controller keep the tiller light and responsive for operators all shift.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Mezzanine Warehouses

Use 60.2" of free lift to move pallets under mezzanines, then reach full 177" height in open racking bays.

Growing E-Commerce

Add vertical storage in a small fulfillment space and replenish pick faces from upper racking levels.

Distribution Stockrooms

Put away inbound pallets into four- and five-level racking in compact regional distribution rooms and stockrooms.

Light Manufacturing

Store components and finished goods high near assembly areas, using side shift and tilt for precise placement.

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

	This itemER15-177Li$25,649.05	EH15T$22,799.05	EH15TH$24,224.05	EK18RR-196Li$50,349.05
Capacity	3,300 lb	3,300 lb	3,300 lb	4,000 lb
Lift	177″	138″	216″	196″
Reach	19.7″	19.7″	19.7″	22.44″
Battery	Lithium 24V/200Ah	24V/270Ah	24V/270Ah	Lithium 48V/400Ah
Shipping	Free	Free	Free	Free
	You're viewing this	View details	View details	View details

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE ER15-177LI.

Still unsure? Call (844) 455-4327 or email support@equipmentnation.com. Real people, Mon–Fri.

How does the ER15-177Li differ from the ER15-138Li?

Both lift 3,300 lb with 19.7" of reach, a 63.4" turning radius and a 24V/200Ah lithium battery. The ER15-177Li lifts to 177" instead of 138" and adds 60.2" of free lift. Service weight is 4,565 lbs, compared with 3,780 lbs for the 138Li.

What is free lift, and why does 60.2" matter?

Free lift is how far the forks rise before the mast gets taller. With 60.2", the ER15-177Li can raise a pallet about five feet while keeping the lowered mast height. That is useful under mezzanines, inside trailers and near low sprinkler lines.

What are the ER15-177Li's clearance dimensions?

The lowered mast height is 82.3", the body width is 32.3" and the legs are 59.1" wide. Measure doorways and aisles, and call (888) 378-6244 with your openings so we can confirm the fit before you buy.

What forks does the ER15-177Li use?

Forks measure 1.38" x 3.9" x 45.3" long, with a 32.2" fork width. Rated capacity is 3,300 lb at a 24" load center. Side shift and tilt let the operator line the pallet up with the beam without repositioning the truck.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $150). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.
