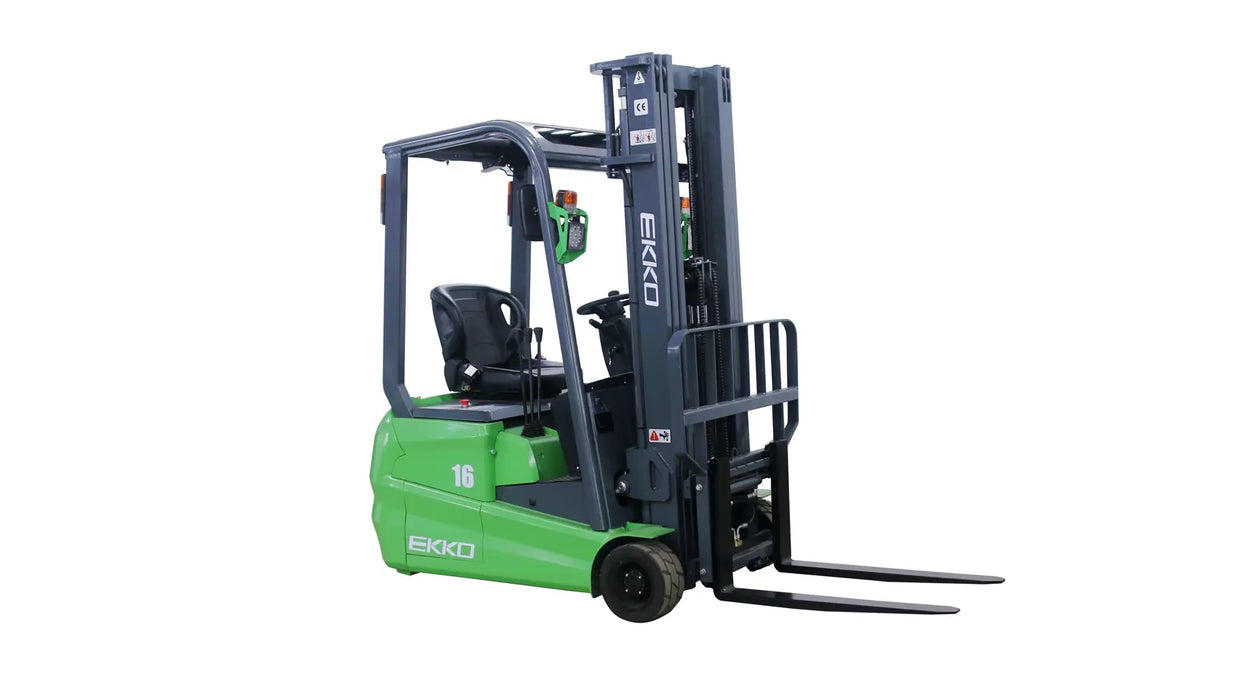

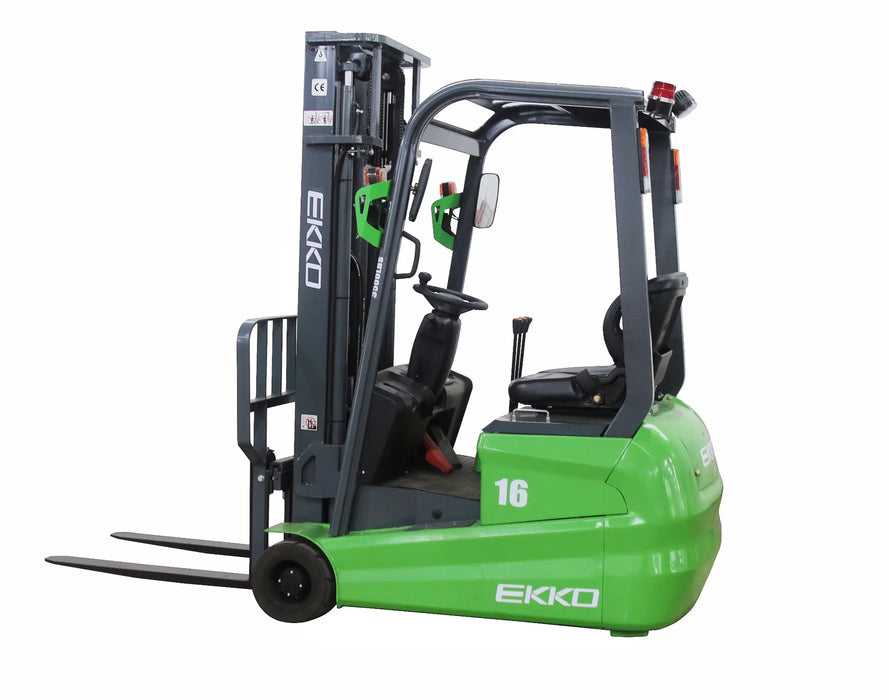

EKKO EK16A-216Li 3-Wheel Lithium Forklift, 3,500 lb Capacity, 216" Lift Height

EKKOModel EK16A-216LiBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $1,424.95

$28,499.00

$28,499.00 - $28,499.00

$28,499.00

$27,074.05

$27,074.05 - $27,074.05

$27,074.05

Configure your EK16A

Compare models

Lift height: 216″

138″ Lead-acid only 177″ Lead-acid only 189″ −$1,425 216″ Selected

Power: Lithium 24V

Lead-acid 24V 138″ only Lithium 24V Selected

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EK16A-216Li

About the EK16A-216Li

Reach 18 ft in tight aisles with the EKKO EK16A-216Li, the tallest-lifting model in the EK16A 3-wheel family. It lifts 3,500 lb to 216" with 31.5" of free lift and side shifting forks, and turns in a 58.9" radius where 4-wheel trucks struggle.

A 24V/200Ah lithium battery and 24V/50A charger are included. They power a 24V AC drive motor and a 3.3 kW lift motor through a Zapi controller, with hydraulic power steering and cushion tires for flat indoor floors.

From the manufacturer

The EKKO EK16A-216Li 3-wheel lithium forklift is designed for small aisles, limited spaces and budget-conscious operations. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehouses.

Built from high-quality steel and durable components, the EK16A-216Li has robust drives made for heavy use, impacts and constant directional changes. EKKO recommends it for indoor use on flat surfaces.

Highlights

Load capacity 3,500 lb at a 24" load center
216" (18 ft) maximum lift height with 31.5" free lift
95" lowered mast height
Side shifting forks
Adjustable forks 7.9"–26" wide, 42.1" long
Mast tilt 3° forward and 6° back
Zapi controller, 24V AC drive motor and 3.3 kW lift motor
24V/200Ah lithium battery and 24V/50A charger included
Hydraulic power steering and cushion tires
3 Year Limited Warranty

Specifications

Capacity & lift

Load capacity	3,500 lb
Load center	24 in
Max lift height	216 in
Free lift	31.5 in
Mast tilt (forward/back)	3° / 6°
Lift speed (laden/unladen)	4.71 / 10.2 in/s
Lowering speed (laden/unladen)	11.8 / 15.7 in/s

Dimensions

Lowered mast height	95 in
Overall length (less forks)	65 in
Overall width	42.1 in
Wheelbase	49.2 in
Turning radius	58.9 in

Power & drive

Battery	24V / 200Ah lithium (included)
Charger	24V / 50A (included)
Drive motor	24V AC
Lift motor	3.3 kW
Controller	Zapi
Steering	Hydraulic power steering
Gradeability (laden/unladen)	6% / 10%

Forks & chassis

Side shift	Yes
Fork size (T × W × L)	1.4 × 4 × 42.1 in
Adjustable fork width	7.9–26 in
Tires	Cushion
Wheel layout	3-wheel

General

Model	EK16A-216Li
Service weight	5,470 lb
Warranty	3 Year Limited Warranty

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $150. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EK16A-216Li:

3 yearsFrame, mast and forks
1 yearTransmission, drive and lift motors, controllers, charger, hydraulic pump, sensors
Up to 5 yearsLithium battery on EKKO's designated lithium models (1 year on other batteries)
6 monthsLabor on specified models, with EKKO's prior approval
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (844) 455-4327 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(844) 455-4327 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (844) 455-4327 or email support@equipmentnation.com.

3-WHEEL LITHIUM FORKLIFT · EK16A-216Li

18 FT LIFT, 3-WHEEL AGILITY

The EKKO EK16A-216Li is the tallest-lifting EK16A. It lifts 3,500 lb to 216" with side shifting forks on cushion tires, powered by a 24V/200Ah lithium battery.

Capacity3,500 lbLift216″PowerLithium 24V

3,500 lbCapacity

216″Lift

Lithium 24VPower

CushionTires

NewFull manufacturer warranty

BUILT FOR THE JOB

Maximum height in tight aisles

The EK16A-216Li is for indoor operations with tight aisles and tall racking: stockrooms, small distribution centers and manufacturing floors where a 4-wheel forklift cannot turn. It lifts 3,500 lb to 216", or 18 ft, the most in the EK16A family, with 31.5" of free lift and side shifting forks. A 24V/200Ah lithium battery and 24V/50A charger are included. It uses the family's 24V AC drive motor, 3.3 kW lift motor, Zapi controller and hydraulic power steering. Its lowered mast is 95", so check door heights on your route.

See full specifications

WHY THE EK16A-216LI

ENGINEERED WHERE IT COUNTS.

3,500 lb to 216"

Lift 3,500 lb at a 24" load center to 216", or 18 ft, with 31.5" of free lift. Mast tilt is 3 degrees forward and 6 degrees back, and side shifting forks help place loads cleanly.

24V/200Ah Lithium Battery

A 24V/200Ah lithium battery and a 24V/50A charger are included. They power a 24V AC drive motor and a 3.3 kW lift motor, managed by a Zapi controller for smooth, efficient work.

Tight 3-Wheel Turning

The 3-wheel chassis turns in a 58.9" radius and measures 42.1" wide, with a 95" lowered mast. Cushion tires are built for flat indoor floors, where EKKO recommends using it.

Adjustable Forks, HPS

The 42.1" forks adjust from 7.9" to 26" to fit a range of pallets. Hydraulic power steering keeps steering light, and robotically welded steel handles heavy use and constant direction changes.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Tall stockrooms

Reach upper pallet positions up to 18 ft in compact stockrooms and back rooms with tight aisles.

Small distribution

Load trucks at the dock and put away pallets high in small distribution centers with limited floor space.

Manufacturing floors

Move materials around machines and stack them high in plants where aisles are narrow and turning space is limited.

Indoor loading docks

Unload trailers at interior docks and turn quickly in crowded staging areas on flat concrete floors.

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

	This itemEK16A-216Li$27,074.05	EK18AT-212Li$34,199.05	EK20GT-Li$31,919.05	EK18RF-Li$39,899.05
Capacity	3,500 lb	4,000 lb	4,000 lb	4,000 lb
Lift	216″	212″	185″	216″
Power	Lithium 24V	Lithium 48V	Lithium 80V	Lithium 48V
Tires	Cushion	Solid pneumatic	Solid pneumatic	Cushion
Shipping	Free	Free	Free	Free
	You're viewing this	View details	View details	View details

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EK16A-216LI.

Still unsure? Call (844) 455-4327 or email support@equipmentnation.com. Real people, Mon–Fri.

How does the EK16A-216Li compare with other EK16A models?

All EK16A models lift 3,500 lb on a 3-wheel cushion-tire chassis with side shift. The EK16A-216Li reaches 216", the highest in the family, on a 24V/200Ah lithium battery. The EK16A-189Li reaches 189" on the same battery. The lead-acid EK16A-138 and EK16A-177 use a 24V/320Ah battery.

Will the EK16A-216Li fit through my doors?

With the forks down, the mast stands 95" tall, taller than a typical 80-inch interior door, so plan routes through dock doors and roll-ups. The truck is 42.1" wide. If clearance is tight, the EK16A-189Li has an 84.75" lowered mast. Call (888) 378-6244 with your measurements.

Can the EK16A-216Li be used outdoors?

EKKO recommends it for indoor use on flat surfaces. Its cushion tires and 3-wheel design are built for smooth concrete in warehouses, stockrooms and plants. For rough dock plates or paved yards, a solid pneumatic model such as the EK18AT-212Li may be a better fit.

What is included with the EK16A-216Li?

The 24V/200Ah lithium battery and 24V/50A charger are included, along with side shifting forks, adjustable forks and hydraulic power steering. EKKO lists a 3-year limited warranty. Freight is free to the lower 48 on orders over $500, or pick it up free in Pomona, CA.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $150). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.

CUSTOMER REVIEWS

OWNERS ON THE EK16A-216LI.

No reviews yet. Customer reviews will appear here as they come in.

Questions before you buy? Call (844) 455-4327.

Own the EK16A-216Li? Be the first to review it.

How does it handle your loads and lift heights?
How does the battery hold up over a full shift?
How was ordering, delivery and setup?
