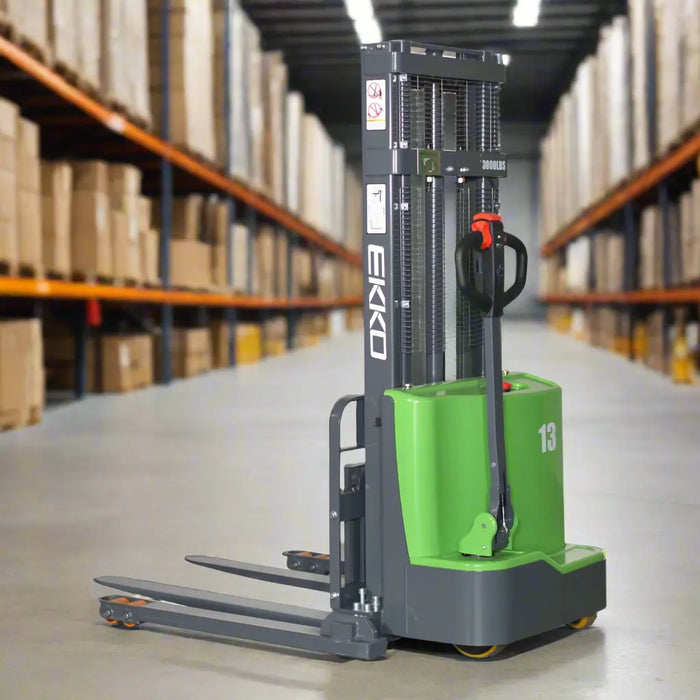

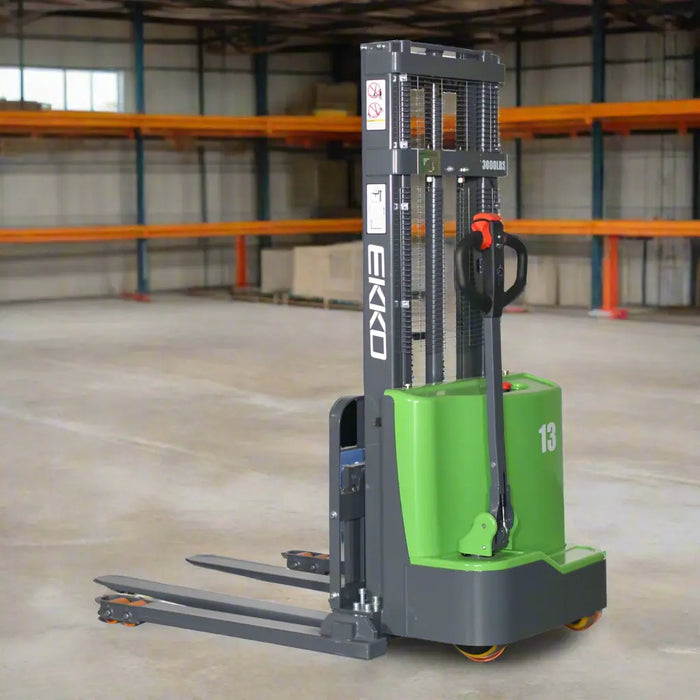

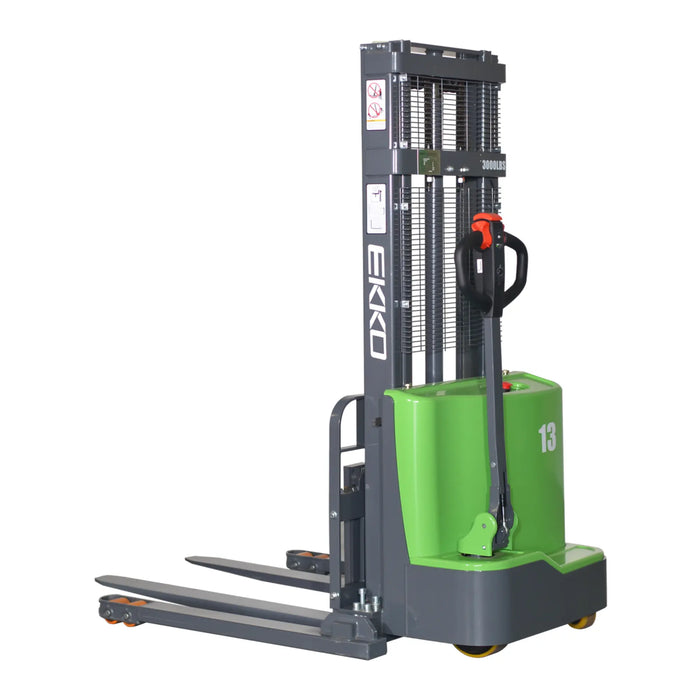

EKKO EB13C-118Li lithium electric walkie straddle stacker, 2,800 lb capacity, 118 in lift

EKKO EB13C-118Li Electric Walkie Stacker – 2,800 lb Capacity, 118" Lift, 85" Mast, 24V Lithium Battery

EKKOModel EB13C-118LiBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $294.40

$5,888.00

$5,888.00 - $5,888.00

$5,888.00

$5,593.60

$5,593.60 - $5,593.60

$5,593.60

Configure your EB13C

Compare models

Lift height: 118″

98″ −$294.50 118″ Selected 138″ +$294.50 145″ +$1,178

Battery: Lithium 24V

Lithium 24V Selected Lead-acid 24V −$147.25

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EB13C-118Li

About the EB13C-118Li

Boost warehouse throughput with the EKKO EB13C-118Li electric walkie stacker—built for precise pallet stacking in narrow aisles. This compact stacker combines straddle stability with walk-behind control, delivering 2,800 lb capacity and a 118" lift for dock, stockroom, and high-bay workflows.

Powered by a 24V/50Ah lithium system with an internal charger, this electric straddle stacker provides smooth travel and lift.

From the manufacturer

The EKKO EB13C-118Li Lithium Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high-quality steel and components with durable drives built for daily use, impacts and directional changes.

Highlights

Load capacity 2,800 lbs with a 24" load center
118" maximum lift height for high-rack access
Adjustable forks 8.6"–32.1" for different pallet sizes
Adjustable legs 35.4"–51.2" for added stability
85" lowered mast height
Curtis controller for smooth, responsive operation
Heavy-duty steel frame with polyurethane wheels
Ergonomic handle and controls for operator comfort
24V/50Ah lithium battery with internal 24V/20A charger
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Load capacity	2,800 lb
Max lift height	118 in
Load center	24 in

Dimensions

Turning radius	56.1 in
Overall length	73.4 in
Max overall width	61 in
Extended mast height	147.6 in
Lowered mast height	85 in

Power & drive

Battery	24V / 50Ah Lithium
Charger	24V / 20A
Lift motor	2.2 kW
Drive motor	0.75 kW

Forks & chassis

Fork length	45.3 in
Single fork width	4 in
Adjustable fork width	8.6–32.1 in
Lowered fork height	2.56 in
Adjustable leg width	35.4–51.2 in

General

Model	EB13C-118Li
Service weight	1,380 lb
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $100. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EB13C-118Li:

3 yearsFrame, mast and forks
1 yearDrive and lift motors, controller, hydraulics, charger and battery (lithium or lead-acid)
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (888) 378-6244 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(888) 378-6244 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (888) 378-6244 or email support@equipmentnation.com.

LITHIUM WALKIE STRADDLE STACKER · EB13C-118Li

LITHIUM REACH FOR MID-LEVEL RACKS

The EKKO EB13C-118Li lifts 2,800 lb to 118" on a 24V/50Ah lithium battery, with adjustable forks and legs in a 73.4" long chassis.

Capacity2,800 lbLift118″BatteryLithium 24V

2,800 lbCapacity

118″Lift

Lithium 24VBattery

NewFull manufacturer warranty

BUILT FOR THE JOB

Twenty more inches, same compact frame

The EB13C-118Li keeps everything that makes the EB13C-98Li easy to live with and adds 20 inches of lift. It reaches 118" with a 2,800 lb capacity at a 24" load center, enough for mid-level rack positions and double-stacking in stockrooms. The lowered mast grows to 85", and fully raised it extends to 147.6". The 24V/50Ah lithium battery and built-in 24V/20A charger stay the same, as do the 56.1" turning radius and adjustable forks and legs. It is the lithium sweet spot in the EB13C line for docks and warehouses with mid-height racking.

See full specifications

WHY THE EB13C-118LI

ENGINEERED WHERE IT COUNTS.

2,800 lb to 118"

Rated for 2,800 lb at a 24" load center, with a maximum lift height of 118". Enough reach for mid-level rack positions and double-stacking in stockrooms. Fully raised, the mast extends to 147.6".

24V Lithium Power

A 24V/50Ah lithium battery runs both drive and lift. The 24V/20A charger is built in, so there is no separate charging station to buy, mount or wire.

Adjustable Forks and Legs

Forks adjust from 8.6" to 32.1" and straddle legs from 35.4" to 51.2", so one machine handles mixed pallet sizes. A 56.1" turning radius and 73.4" overall length keep it nimble in narrow aisles.

Controls Built for Shifts

A Curtis controller gives smooth, responsive operation. The heavy-duty steel frame, polyurethane wheels and ergonomic handle are built for daily dock, stockroom and warehouse work at every lift height.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Pallet racking

Place and retrieve pallets up to 118" in standard warehouse racking, walking the load straight into the bay.

Receiving docks

Pull pallets off the dock plate, stage them by lane and stack them without waiting for a sit-down forklift.

E-commerce fulfillment

Keep reserve racking stocked and move inbound pallets to pack stations in fast-turn fulfillment operations.

Stockrooms

Put away and pull inventory in back rooms where aisles are narrow and a counterbalanced forklift will not fit.

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

	This itemEB13C-118Li$5,593.60	EB13E-138Li$6,329.85	EB13ES-Li$7,360.60	EB13CD$4,415.60
Capacity	2,800 lb	2,800 lb	2,800 lb	2,800 lb
Lift	118″	138″	119″	118″
Battery	Lithium 24V	Lithium 24V	Lithium 24V	Lead-acid 24V
Side shift	No	No	Yes	No
Shipping	Free	Free	Free	Free
	You're viewing this	View details	View details	View details

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EB13C-118LI.

Still unsure? Call (888) 378-6244 or email support@equipmentnation.com. Real people, Mon–Fri.

How much overhead clearance does the EB13C-118Li need?

With the forks down, the EB13C-118Li stands 85" tall at the mast, taller than a typical 80-inch interior door, so plan routes through dock doors and roll-ups. At full lift the mast extends to 147.6", so check ceiling, light and sprinkler clearance at the top of the lift. Call (888) 378-6244 with your measurements and we will confirm the fit.

What pallet sizes does the EB13C-118Li handle?

The forks adjust from 8.6" to 32.1" overall width with 45.3" fork length, and the straddle legs adjust from 35.4" to 51.2". Set the legs to clear the pallet and the forks to its entry openings, and the EB13C-118Li handles a wide range of pallets and skids. Capacity is 2,800 lb at a 24" load center. Unsure about an odd size? Call (888) 378-6244.

How is the EB13C-118Li charged?

The EB13C-118Li carries its charger on board: a 24V/20A unit matched to its 24V/50Ah lithium battery. Park the machine, plug it in and charge; there is no separate charger station to buy or mount. Lithium also means no battery watering routine.

Should I pick the EB13C-118Li or the lead-acid EB13C-118?

Both lift 2,800 lb to 118". The EB13C-118Li uses a 24V/50Ah lithium battery with a 24V/20A charger. The EB13C-118 uses a 24V/85Ah maintenance-free battery with a 24V/10A charger and costs a little less. Choose lithium if you want the faster-rated charger and no watering routine; choose the 118 if budget comes first.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $100). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.

CUSTOMER REVIEWS

OWNERS ON THE EB13C-118LI.

No reviews yet. Customer reviews will appear here as they come in.

Questions before you buy? Call (888) 378-6244.

Own the EB13C-118Li? Be the first to review it.

How does it handle your loads and lift heights?
How does the battery hold up over a full shift?
How was ordering, delivery and setup?
