EKKO EB14C-145 Full Powered Straddle Stacker 3000 lb Capacity, 145" Height

EKKOModel EB14C-145Brand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $340.90

$6,818.00

$6,818.00 - $6,818.00

$6,818.00

$6,477.10

$6,477.10 - $6,477.10

$6,477.10

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EB14C-145

About the EB14C-145

The EKKO EB14C-145 electric walkie stacker is the tallest lead-acid model in the EB14C family. It lifts 3,000 lb to 145" for top rack positions, on a straddle chassis that turns in 57.5".

Powered by a 24V/85Ah maintenance-free battery with an internal 24V/10A charger, this electric straddle stacker provides smooth travel and lift. A dual damping drive system improves handling and operator comfort.

From the manufacturer

The EKKO EB14C-145 Electric Straddle Stacker is designed to combine the versatility of a forklift, reach truck and walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high-quality steel and components with durable drives built for daily use, impacts and directional changes. A dual damping drive system enhances handling performance, operating efficiency and operator comfort.

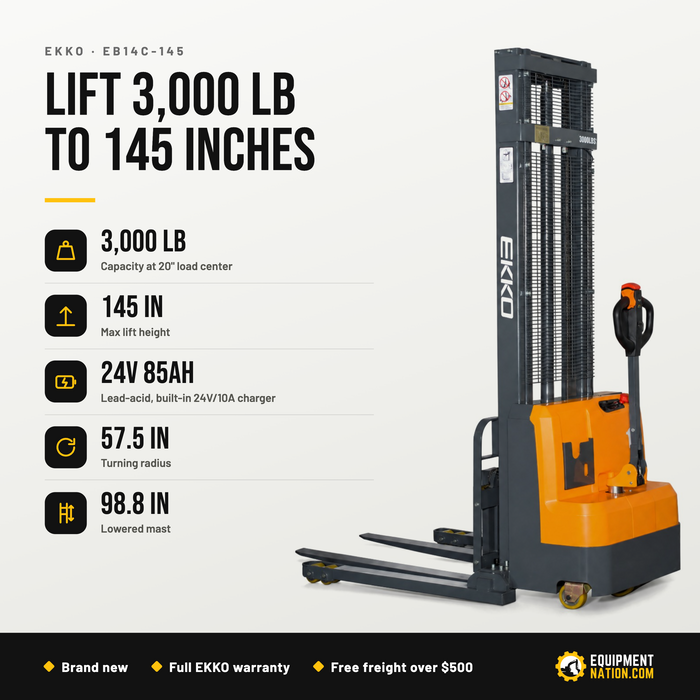

Highlights

Load capacity 3,000 lbs with a 20" load center
145" maximum lift height for upper rack positions
Adjustable forks 8.7"–32.1" for different pallet sizes
Adjustable legs 35.4"–51.2" for added stability
98.8" lowered mast height
Curtis controller and dual damping drive for smooth handling
24V/85Ah maintenance-free battery with internal 24V/10A charger
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Load capacity	3,000 lb
Max lift height	145 in
Load center	20 in

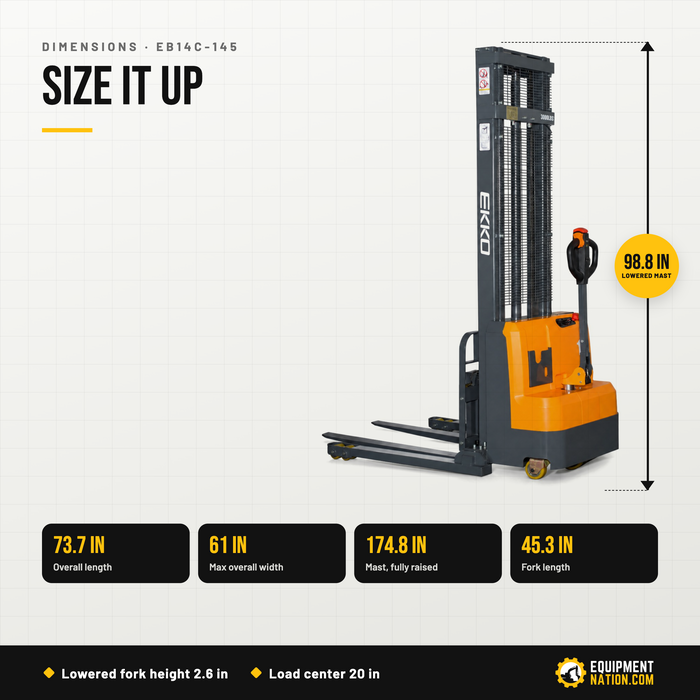

Dimensions

Turning radius	57.5 in
Overall length	73.7 in
Max overall width	61 in
Extended mast height	174.8 in
Lowered mast height	98.8 in

Power & drive

Battery	24V / 85Ah maintenance-free
Charger	24V / 10A
Controller	Curtis
Lift motor	2.2 kW
Drive motor	DC drive motor

Forks & chassis

Fork length	45.3 in
Single fork width	4 in
Adjustable fork width	8.7–32.1 in
Lowered fork height	2.6 in
Adjustable leg width	35.4–51.2 in
Wheels	Polyurethane

General

Model	EB14C-145
Service weight	1,520 lb
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $100. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EB14C-145:

3 yearsFrame, mast and forks
1 yearDrive and lift motors, controller, hydraulics, charger and battery (lithium or lead-acid)
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (888) 378-6244 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(888) 378-6244 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (888) 378-6244 or email support@equipmentnation.com.

ELECTRIC WALKIE STRADDLE STACKER · EB14C-145

3,000 LB TO 145 INCHES, LEAD-ACID

The EKKO EB14C-145 lifts 3,000 lb to 145" on a 24V/85Ah maintenance-free battery, with a dual damping drive and a 57.5" turning radius.

Capacity3,000 lbLift145″BatteryLead-acid 24V

3,000 lbCapacity

145″Lift

Lead-acid 24VBattery

NewFull manufacturer warranty

BUILT FOR THE JOB

Top-rack reach, lead-acid simplicity

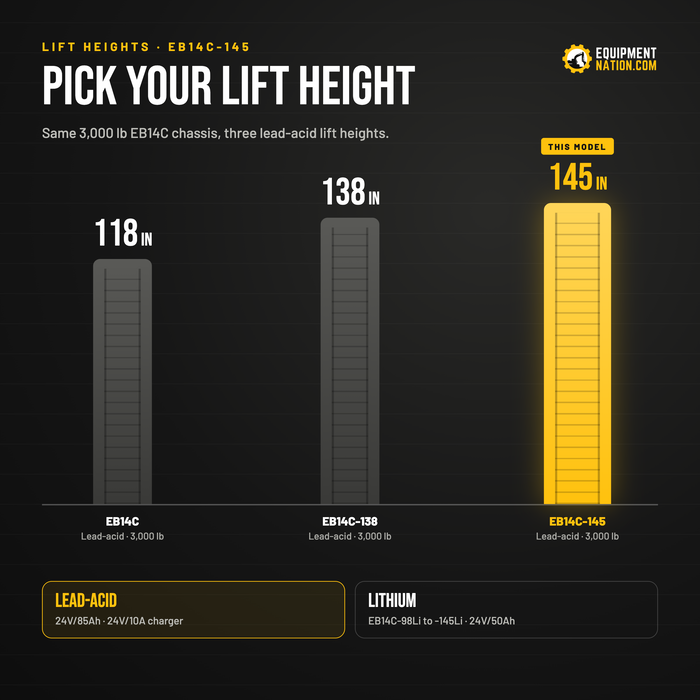

The EB14C-145 is the tallest lead-acid model in the EB14C family. It lifts 3,000 lb to 145" at a 20" load center, seven inches above the EB14C-138, with a 98.8" lowered mast and 174.8" fully raised. A 24V/85Ah maintenance-free battery and built-in 24V/10A charger keep ownership simple, and it costs less than the lithium EB14C-145Li at the same height. Straddle legs adjust from 35.4" to 51.2" and forks from 8.7" to 32.1". A Curtis controller and dual damping drive system keep handling smooth for warehouses that stack to the top beam every day.

See full specifications

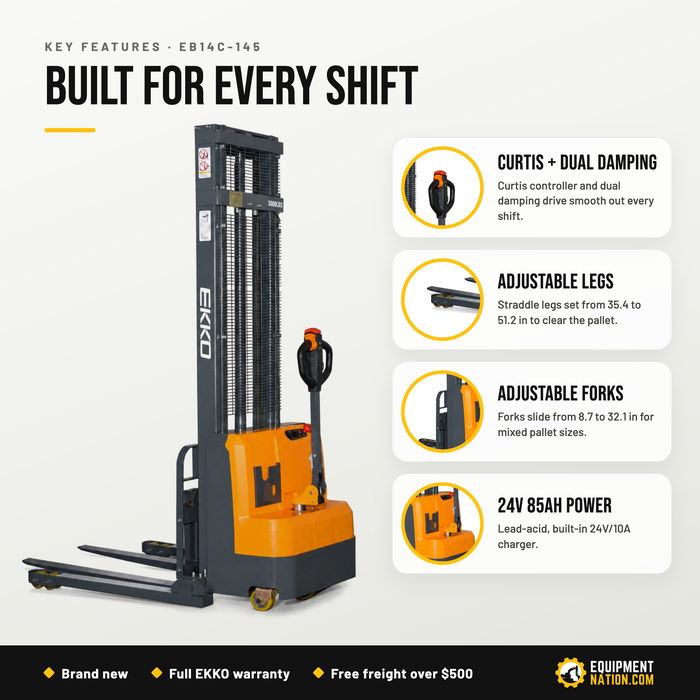

WHY THE EB14C-145

ENGINEERED WHERE IT COUNTS.

3,000 lb to 145"

Rated for 3,000 lb at a 20" load center, with a maximum lift height of 145". Aimed at top rack positions where a 138-inch mast comes up short. Fully raised, the mast extends to 174.8".

Maintenance-Free 24V Battery

A maintenance-free 24V/85Ah battery pack powers drive and lift. A built-in 24V/10A charger keeps charging simple, with no separate charger station to install. Maintenance-free means no watering routine.

Adjustable Forks and Legs

Forks adjust from 8.7" to 32.1" and straddle legs from 35.4" to 51.2", so one machine handles mixed pallet sizes. A 57.5" turning radius and 73.7" overall length keep it nimble in narrow aisles.

Controls Built for Shifts

A Curtis controller and dual damping drive system improve handling and operator comfort over long shifts. The 2.2 kW lift motor, polyurethane wheels and steel construction are built for daily use.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

High-bay storage

Reach top positions up to 145" in tall racking while the operator stays on the floor at the tiller.

Dense, heavy pallets

Move loads up to 3,000 lb, such as beverage, hardware or paper stock, without stepping up to a rider truck.

Distribution centers

Replenish pick faces and shuttle full pallets between staging lanes and storage in busy indoor facilities.

Receiving docks

Pull pallets off the dock plate, stage them by lane and stack them without waiting for a sit-down forklift.

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EB14C-145.

Still unsure? Call (888) 378-6244 or email support@equipmentnation.com. Real people, Mon–Fri.

How much overhead clearance does the EB14C-145 need?

With the forks down, the EB14C-145 stands 98.8" tall at the mast, taller than a typical 80-inch interior door, so plan routes through dock doors and roll-ups. At full lift the mast extends to 174.8", so check ceiling, light and sprinkler clearance at the top of the lift. Call (888) 378-6244 with your measurements and we will confirm the fit.

What pallet sizes does the EB14C-145 handle?

The forks adjust from 8.7" to 32.1" overall width with 45.3" fork length, and the straddle legs adjust from 35.4" to 51.2". Set the legs to clear the pallet and the forks to its entry openings, and the EB14C-145 handles a wide range of pallets and skids. Capacity is 3,000 lb at a 20" load center. Unsure about an odd size? Call (888) 378-6244.

How is the EB14C-145 charged?

The EB14C-145 carries its charger on board: a 24V/10A unit matched to its maintenance-free 24V/85Ah battery. Park the machine, plug it in and charge; there is no separate charger station to buy or mount. Maintenance-free means no watering routine for your team.

Should I choose the EB14C-145 or the lithium EB14C-145Li?

Both lift 3,000 lb to 145" with a 98.8" lowered mast and share the same forks, legs and 57.5" turning radius. The EB14C-145 runs a 24V/85Ah maintenance-free battery with a 24V/10A charger and weighs 1,520 lb. The EB14C-145Li uses a 24V/50Ah lithium battery with a 24V/20A charger. Choose the 145 if budget leads, the 145Li for lithium.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $100). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.

CUSTOMER REVIEWS

OWNERS ON THE EB14C-145.

No reviews yet. Customer reviews will appear here as they come in.

Questions before you buy? Call (888) 378-6244.

Own the EB14C-145? Be the first to review it.

How does it handle your loads and lift heights?
How does the battery hold up over a full shift?
How was ordering, delivery and setup?
