EKKO EB14CS-189Li Lithium Straddle Stacker 3000 lb Cap, 189" Height, Side-shift

EKKOModel EB14CS-189LiBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $899.95

$17,999.00

$17,999.00 - $17,999.00

$17,999.00

$17,099.05

$17,099.05 - $17,099.05

$17,099.05

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EB14CS-189Li

About the EB14CS-189Li

The EKKO EB14CS-189Li lithium walkie stacker is the tallest EB14CS. Its triple mast with free lift reaches 189" with a 3,000 lb capacity, and side shift lines up the load at the top of the rack.

Powered by a 24V/100Ah lithium battery with an internal 24V/20A charger, this electric straddle stacker provides smooth travel and lift. A dual damping drive system improves handling and operator comfort. Side shift moves the forks sideways for final alignment at the rack.

From the manufacturer

The EKKO EB14CS-189Li Electric Straddle Stacker is designed to combine the versatility of a forklift, reach truck and walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing. It pairs a triple mast with free lift, side shift and a synchronous proportional valve.

Made from high-quality steel and components with durable drives built for daily use, impacts and directional changes. A dual damping drive system enhances handling performance, operating efficiency and operator comfort.

Highlights

Load capacity 3,000 lbs with a 24" load center
189" maximum lift height for high-bay racking
Triple mast with free lift
Side shift for precise load placement
Adjustable forks 8.7"–32.1" for different pallet sizes
Adjustable legs 35.4"–51.2" for added stability
Curtis controller and dual damping drive for smooth handling
24V/100Ah lithium battery with internal 24V/20A charger
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Load capacity	3,000 lb
Max lift height	189 in
Load center	24 in
Free lift	Yes
Mast	Triple

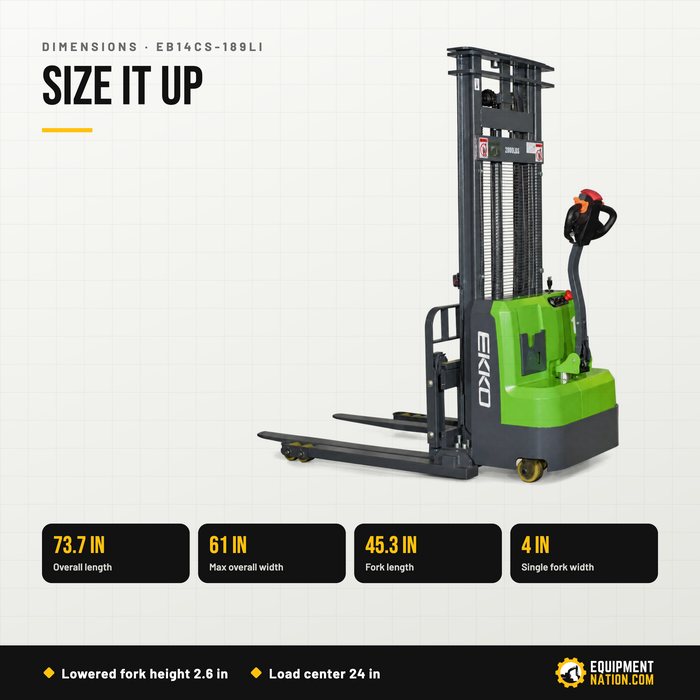

Dimensions

Turning radius	60.8 in
Overall length	73.7 in
Max overall width	61 in

Power & drive

Battery	24V / 100Ah Lithium
Charger	24V / 20A
Controller	Curtis
Lift motor	2.2 kW
Drive motor	DC drive motor

Forks & chassis

Fork length	45.3 in
Single fork width	4 in
Adjustable fork width	8.7–32.1 in
Lowered fork height	2.6 in
Adjustable leg width	35.4–51.2 in
Side shift	Yes
Wheels	Polyurethane

General

Model	EB14CS-189Li
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $100. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EB14CS-189Li:

3 yearsFrame, mast and forks
1 yearDrive and lift motors, controller, hydraulics, charger and battery (lithium or lead-acid)
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (888) 378-6244 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(888) 378-6244 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (888) 378-6244 or email support@equipmentnation.com.

TRIPLE-MAST LITHIUM STACKER WITH SIDE SHIFT · EB14CS-189Li

THE TALLEST EB14CS, 189-INCH LIFT

The EKKO EB14CS-189Li lifts 3,000 lb to 189" on a triple mast with free lift and side shift, powered by a 24V/100Ah lithium battery.

Capacity3,000 lbLift189″BatteryLithium 24V

3,000 lbCapacity

189″Lift

Lithium 24VBattery

YesSide shift

NewFull manufacturer warranty

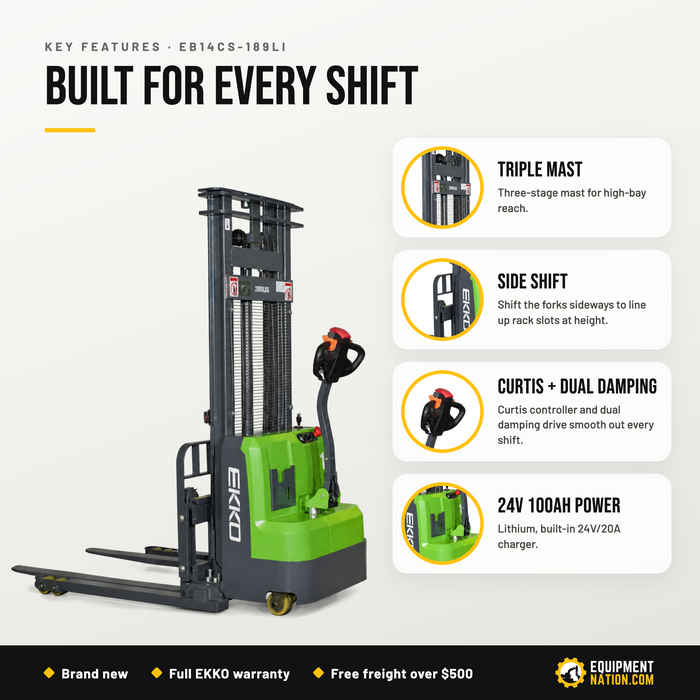

BUILT FOR THE JOB

Maximum reach for the EB14CS line

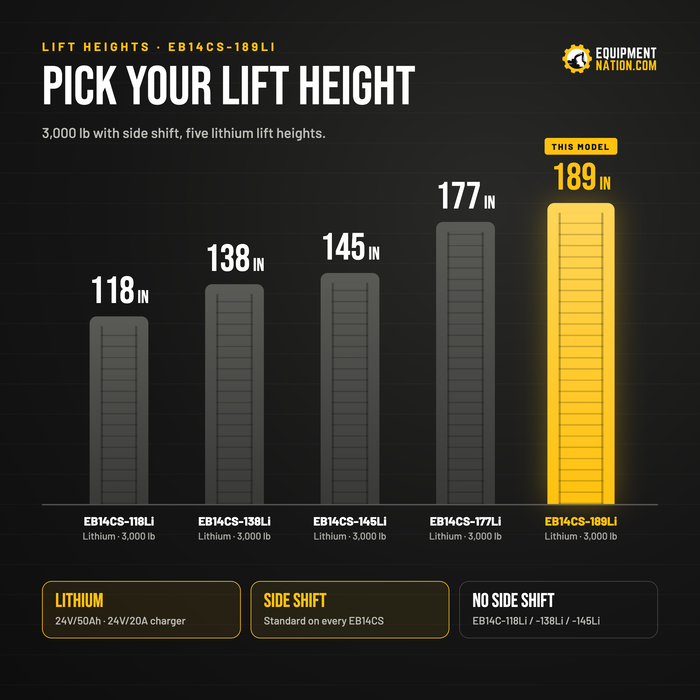

The EB14CS-189Li is the tallest EB14CS. Its triple mast with free lift reaches 189", 12 inches above the EB14CS-177Li and 44 inches above the EB14CS-145Li, with a 3,000 lb capacity at a 24" load center. Side shift and a synchronous proportional valve help the operator place loads precisely at the top of tall racking. A 24V/100Ah lithium battery charges on a built-in 24V/20A charger. Even with that reach, the chassis stays compact at 73.7" long with a 60.8" turning radius, and a dual damping drive keeps handling smooth through long shifts.

See full specifications

WHY THE EB14CS-189LI

ENGINEERED WHERE IT COUNTS.

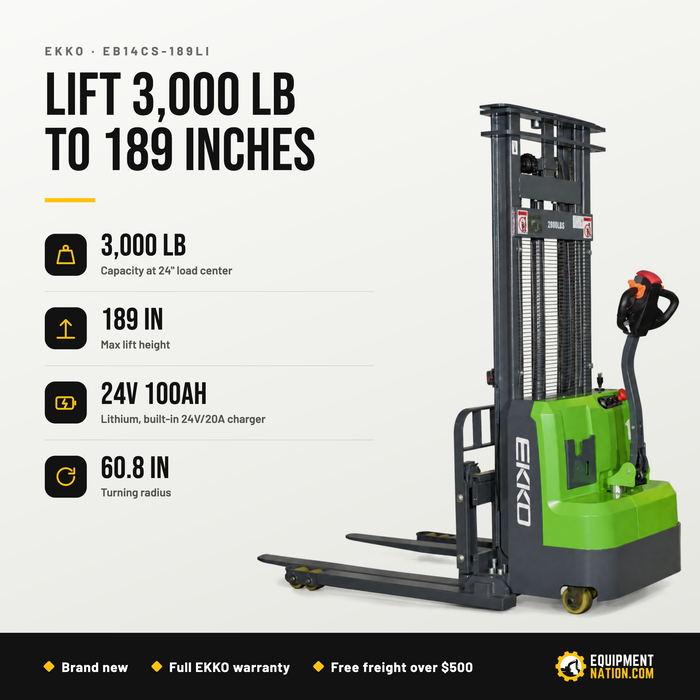

3,000 lb to 189"

Rated for 3,000 lb at a 24" load center, with a maximum lift height of 189". A triple mast with free lift brings high-bay reach to a compact walk-behind machine.

24V Lithium Power

A 24V/100Ah lithium battery runs both drive and lift. The 24V/20A charger is built in, so there is no separate charging station to buy, mount or wire.

Adjustable Forks and Legs

Forks adjust from 8.7" to 32.1" and straddle legs from 35.4" to 51.2", so one machine handles mixed pallet sizes. A 60.8" turning radius and 73.7" overall length keep it nimble in narrow aisles.

Side Shift for Precision

Side shift moves the forks sideways, so operators line up rack slots without repositioning the whole machine. A synchronous proportional valve, Curtis controller and dual damping drive keep control smooth.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

High-bay storage

Reach top positions up to 189" in tall racking while the operator stays on the floor at the tiller.

Tight rack slots

Side shift trims pallet alignment at height, so loads go into snug rack openings without repositioning the machine.

Distribution centers

Replenish pick faces and shuttle full pallets between staging lanes and storage in busy indoor facilities.

Dense, heavy pallets

Move loads up to 3,000 lb, such as beverage, hardware or paper stock, without stepping up to a rider truck.

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EB14CS-189LI.

Still unsure? Call (888) 378-6244 or email support@equipmentnation.com. Real people, Mon–Fri.

What pallet sizes does the EB14CS-189Li handle?

The forks adjust from 8.7" to 32.1" overall width with 45.3" fork length, and the straddle legs adjust from 35.4" to 51.2". Set the legs to clear the pallet and the forks to its entry openings, and the EB14CS-189Li handles a wide range of pallets and skids. Capacity is 3,000 lb at a 24" load center. Unsure about an odd size? Call (888) 378-6244.

How is the EB14CS-189Li charged?

The EB14CS-189Li carries its charger on board: a 24V/20A unit matched to its 24V/100Ah lithium battery. Park the machine, plug it in and charge; there is no separate charger station to buy or mount. Lithium also means no battery watering routine.

Should I choose the EB14CS-189Li or the EB14CS-177Li?

Both share the triple mast with free lift, side shift, 3,000 lb capacity at a 24" load center, 24V/100Ah lithium battery, 24V/20A charger and 60.8" turning radius. The EB14CS-189Li reaches 189"; the EB14CS-177Li reaches 177". Choose the 189Li only if your top beam needs the extra 12 inches, and confirm ceiling clearance with us at (888) 378-6244.

What does free lift do on the EB14CS-189Li?

Free lift is the height the forks can rise before the mast itself starts to extend. It lets operators lift or stack a pallet without the mast growing taller, which helps under low obstructions. EKKO does not publish the free-lift or lowered mast height for this model, so call (888) 378-6244 and we will confirm both for your building.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $100). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.

CUSTOMER REVIEWS

OWNERS ON THE EB14CS-189LI.

No reviews yet. Customer reviews will appear here as they come in.

Questions before you buy? Call (888) 378-6244.

Own the EB14CS-189Li? Be the first to review it.

How does it handle your loads and lift heights?
How does the battery hold up over a full shift?
How was ordering, delivery and setup?
