EKKO EK10S-118LI/138LI Counterbalanced Walkie Stacker 2200 lb

EKKOModel EK10S-118Li/138LiBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $737.90

$13,798.00

$13,798.00 - $14,758.00

$13,798.00

$13,108.10

$13,108.10 - $14,020.10

$13,108.10

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Quantity

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EK10S-118Li/138Li

About the EK10S-118Li/138Li

The EKKO EK10S is a lithium counterbalanced walkie stacker offered in two lift heights: the EK10S-118Li reaches 118" and the EK10S-138Li reaches 138", both rated for 2,200 lb at a 24" load center. With no straddle legs out front, the forks go straight into the pallet.

A 24V/100Ah lithium-ion battery with a built-in 24V/30A charger powers a 0.9 kW drive motor and a 2.2 kW lift motor, so there is no external charger to find room for. At 34.5" wide with a 53" turning radius, it is built for tight spaces.

From the manufacturer

EKKO describes the EK10S as compact, powerful and built for tight spaces: a counterbalanced stacker for efficient pallet handling without straddle legs, with a 24V/100Ah lithium battery and built-in charger for fast charging and long-lasting performance in demanding warehouse operations.

No external charger and no bulky footprint: just clean, quiet electric power and reliable lift performance.

Highlights

2,200 lb load capacity at a 24" load center
Choice of 118" (9.83 ft) or 138" (11.5 ft) maximum lift
Lowered mast 79.53" (118Li) or 89.25" (138Li)
Counterbalanced design: no straddle legs, forks enter pallets directly
24V/100Ah lithium-ion battery with built-in 24V/30A charger
0.9 kW drive motor and 2.2 kW lift motor with DC speed control

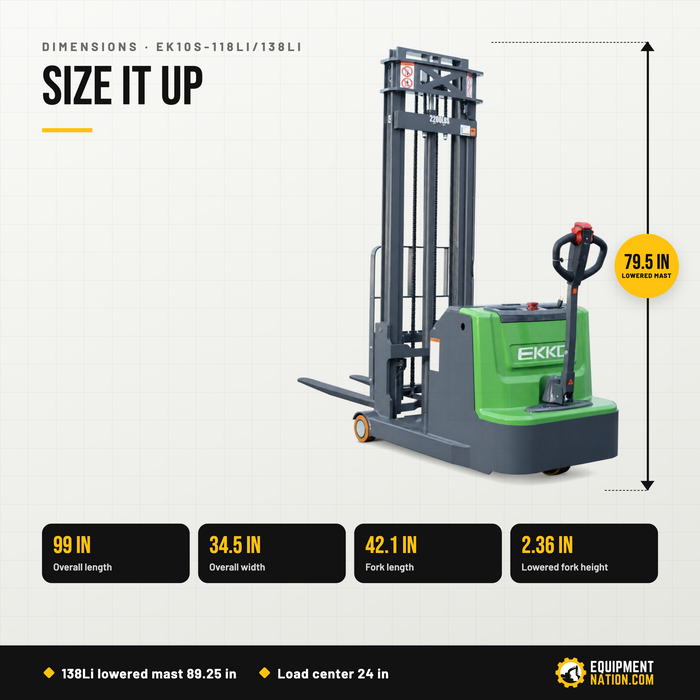

34.5" overall width, 99" overall length and 53" turning radius
42.1" forks, 2.36" lowered fork height
Polyurethane tires
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Load capacity	2,200 lb
Max lift height	118 in / 138 in
Load center	24 in

Dimensions

Turning radius	53 in
Overall length	99 in
Overall width	34.5 in
Lowered mast height	79.53 in / 89.25 in
Extended mast height	137.48 in (118Li)

Power & drive

Battery	24V / 100Ah Lithium-ion
Charger	24V / 30A, built-in
Drive motor	0.9 kW
Lift motor	2.2 kW (S3 10%)
Drive control	DC speed control

Forks & chassis

Fork size (T/W/L)	1.4 / 3.9 / 42.1 in
Adjustable fork width	Not published
Tires	Polyurethane
Lowered fork height	2.36 in

General

Model	EK10S-118Li / EK10S-138Li
Service weight	3,535 lb / 3,597 lb
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $100. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EK10S-118Li/138Li:

3 yearsFrame, mast and forks
1 yearDrive and lift motors, controller, hydraulics, charger and battery (lithium or lead-acid)
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (888) 378-6244 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(888) 378-6244 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (888) 378-6244 or email support@equipmentnation.com.

LITHIUM COUNTERBALANCED WALKIE STACKER · EK10S-118Li/138Li

LITHIUM COUNTERBALANCE, TWO HEIGHTS

The EKKO EK10S lifts 2,200 lb to 118" or 138" on a 24V/100Ah lithium battery with a built-in charger, in a 34.5" wide chassis.

Capacity2,200 lbLift118″ / 138″BatteryLithium 24V

2,200 lbCapacity

118″ / 138″Lift

Lithium 24VBattery

53″Turn radius

NewFull manufacturer warranty

BUILT FOR THE JOB

No legs, no external charger

The EK10S is a compact lithium counterbalanced walkie stacker, and this listing covers two mast heights. The EK10S-118Li lifts to 118" with a 79.53" lowered mast; the EK10S-138Li lifts to 138" with an 89.25" lowered mast. Both carry 2,200 lb at a 24" load center on 42.1" forks. A 24V/100Ah lithium-ion battery and built-in 24V/30A charger mean no external charger and no watering routine. At 34.5" wide with a 53" turning radius, it suits tight aisles, and counterbalanced design means no straddle legs in the way.

See full specifications

WHY THE EK10S-118LI/138LI

ENGINEERED WHERE IT COUNTS.

2,200 lb at 118" or 138"

Both heights are rated for 2,200 lb at a 24" load center. The EK10S-118Li stands 79.53" lowered and the EK10S-138Li 89.25", so pick the mast that clears your doors and reaches your top beam.

Built-In Lithium Charging

A 24V/100Ah lithium-ion battery and a 24V/30A charger are built in. Plug the machine in where it parks; there is no external charger to mount and no watering routine.

Compact, No Straddle Legs

At 34.5" wide and 99" long with a 53" turning radius, the EK10S fits tight aisles. With no straddle legs, its 42.1" forks enter pallets directly from a 2.36" lowered height.

Drive and Lift

A 0.9 kW drive motor with DC speed control handles travel, and a 2.2 kW lift motor raises the mast. Polyurethane tires suit smooth warehouse floors.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Tight stockrooms

Work narrow back-room aisles with a 34.5" wide chassis and 53" turning radius, where larger stackers struggle.

Warehouse racking

Place and retrieve pallets up to 118" or 138" in racking where a sit-down forklift is too large.

Wide or odd loads

Handle pallets and skids too wide for straddle legs, approaching them fork-first with nothing out front.

Retail and e-commerce

Put away and pull inventory pallets quietly on lithium power, with no charging station taking up floor space.

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EK10S-118LI/138LI.

Still unsure? Call (888) 378-6244 or email support@equipmentnation.com. Real people, Mon–Fri.

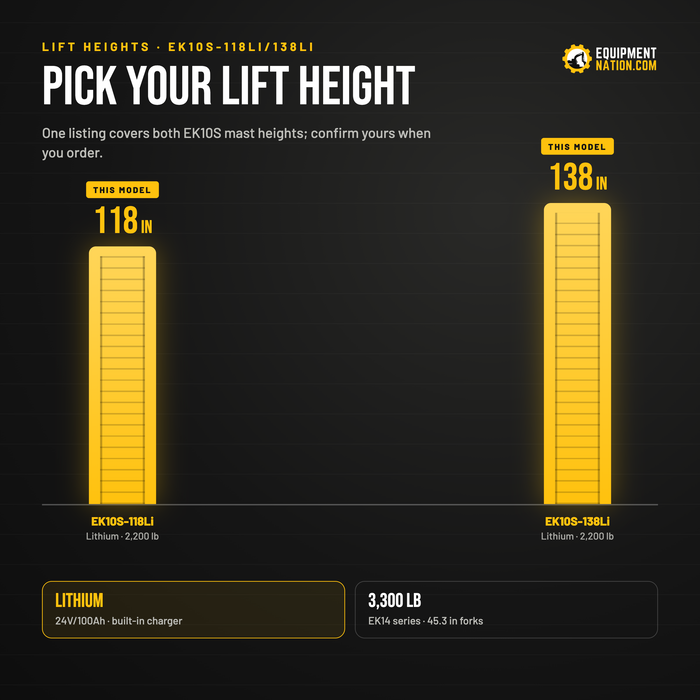

Which height should I choose, 118Li or 138Li?

Match the lift to your top beam and the mast to your lowest doorway. The EK10S-118Li lifts to 118" with a 79.53" lowered mast. The EK10S-138Li lifts to 138" with an 89.25" lowered mast and weighs 3,597 lb against 3,535 lb. Capacity, battery and chassis are the same.

How is the EK10S charged?

The EK10S carries its charger on board: a 24V/30A unit matched to its 24V/100Ah lithium-ion battery. Park the machine, plug it in and charge; there is no external charger to buy or mount. Lithium also means no battery watering routine.

How does the EK10S compare with the EK14?

The EK10S is rated for 2,200 lb on 42.1" forks, is 34.5" wide with a 53" turning radius, and runs on a 24V/100Ah lithium battery. The EK14 carries 3,300 lb on 45.3" forks, is 39" wide with a 57" turning radius, and adds electronic power steering and mast tilt. Choose by load weight and aisle width.

Will the EK10S fit through my doorways?

With the mast lowered, the EK10S-118Li stands 79.53" tall, just under a typical 80-inch interior door, and the EK10S-138Li stands 89.25". Both are 34.5" wide. Measure the openings on your route and call (888) 378-6244 if the fit is close.

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $100). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.

CUSTOMER REVIEWS

OWNERS ON THE EK10S-118LI/138LI.

No reviews yet. Customer reviews will appear here as they come in.

Questions before you buy? Call (888) 378-6244.

Own the EK10S-118Li/138Li? Be the first to review it.

How does it handle your loads and lift heights?
How does the battery hold up over a full shift?
How was ordering, delivery and setup?
