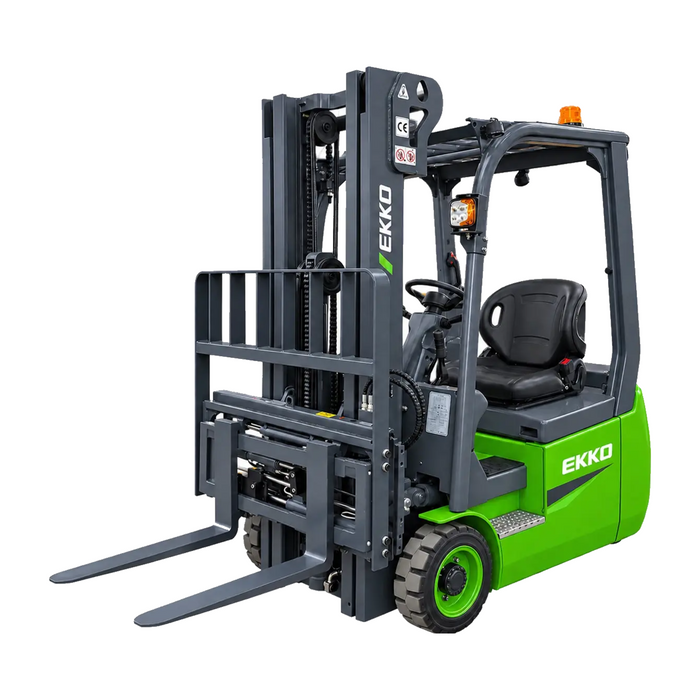

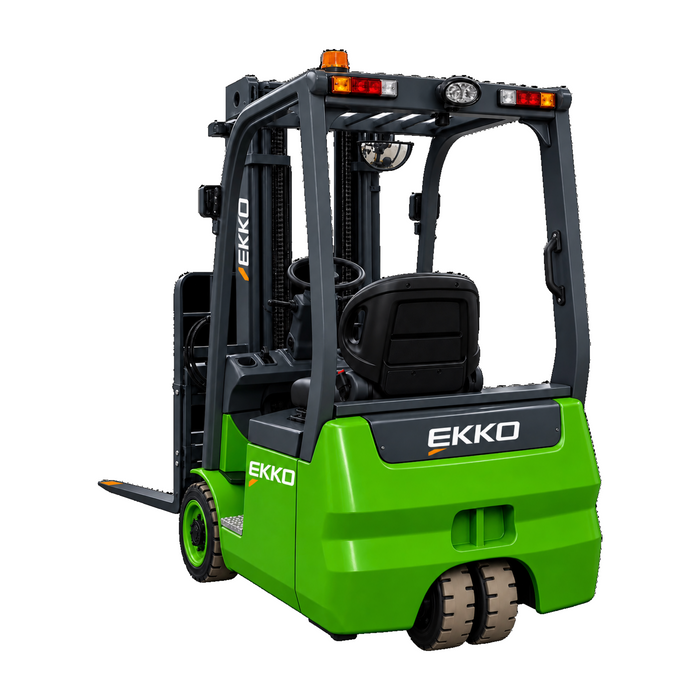

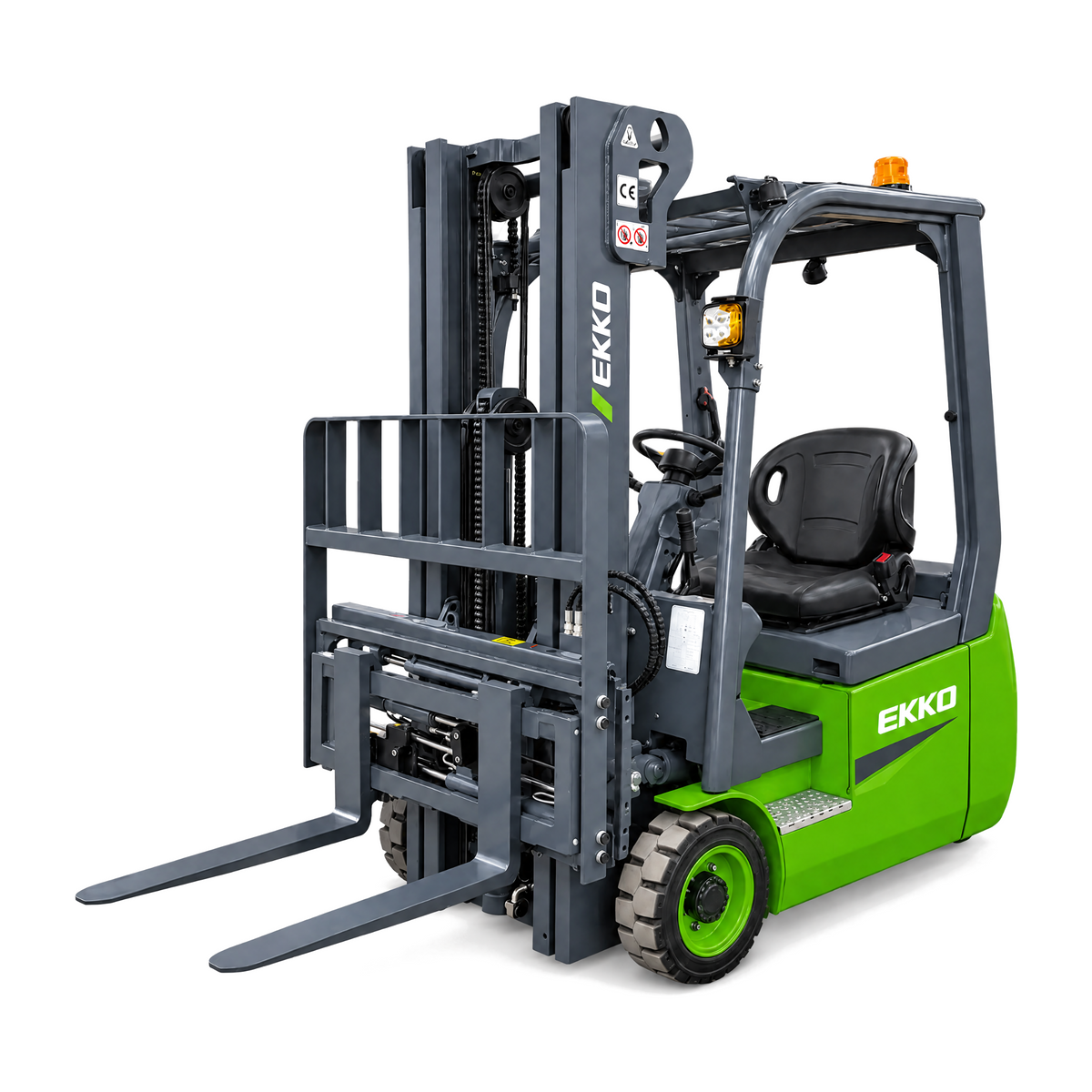

EKKO EK18AC Series 3-Wheel Lithium Forklift, 4,000 lb Capacity

EKKOModel EK18AC-189Li / EK18AC-216LiBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $1,799.95

$31,999.00

$31,999.00 - $35,999.00

$31,999.00

$30,399.05

$30,399.05 - $34,199.05

$30,399.05

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Quantity

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EK18AC-189Li / EK18AC-216Li

About the EK18AC-189Li / EK18AC-216Li

The EKKO EK18AC Series is a 3-wheel lithium forklift built to lift 4,000 lb in tight operating spaces. Choose the EK18AC-189Li with a 189" lift or the EK18AC-216Li with a 216" lift. Both use a 3-stage full free-lift mast with a side shifter and fork positioner as standard.

Power comes from a 48V/150Ah lithium-ion battery and a high-power front-wheel drive motor. A 480V 3-phase fast charger is standard, with 220V 3-phase and 110V single-phase chargers available at extra cost.

From the manufacturer

The EKKO EK18AC 3-wheel lithium-ion forklift is engineered for high-capacity performance in tight operating spaces. It pairs a 4,000 lb load capacity with a compact turning radius for maneuverability in warehouses, manufacturing floors and distribution facilities.

Built with durable components and lithium-ion power, the EK18AC delivers strong lifting performance, reduced maintenance and fast charging to keep operations running efficiently.

Highlights

Load capacity 4,000 lb
Two lift heights: 189" (EK18AC-189Li) or 216" (EK18AC-216Li)
3-stage full free-lift mast with tilt
Side shifter and fork positioner standard
48V/150Ah lithium-ion battery
High-power front-wheel drive motor
Compact turning radius for tight-space maneuvering
480V 3-phase fast charger standard
Optional 220V 3-phase or 110V single-phase charger (extra cost)

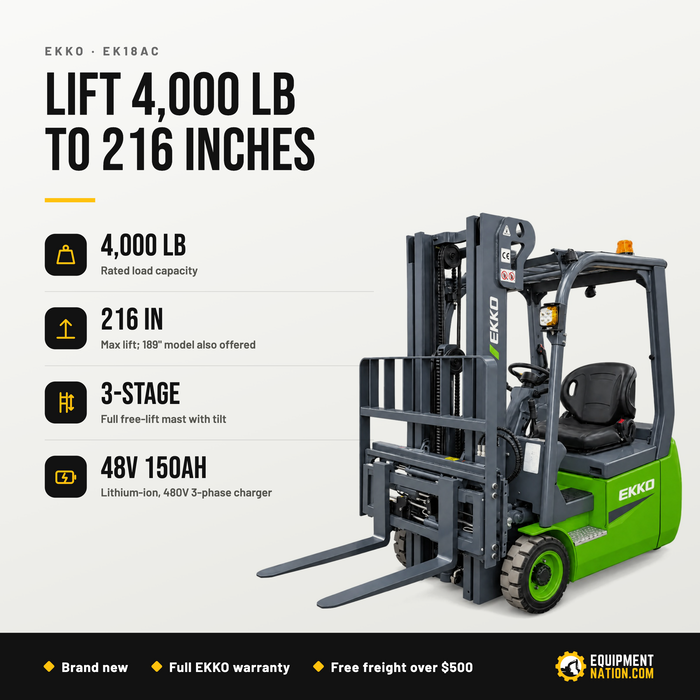

Specifications

Capacity & lift

Load capacity	4,000 lb
Max lift height	189 in (EK18AC-189Li) / 216 in (EK18AC-216Li)
Mast	3-stage full free-lift
Mast tilt	Yes

Power & drive

Battery	48V / 150Ah lithium-ion
Drive motor	High-power front-wheel drive
Charger	480V 3-phase fast charger (standard)
Optional chargers	220V 3-phase or 110V single-phase (extra cost)

Forks & chassis

Side shifter	Standard
Fork positioner	Standard
Wheel layout	3-wheel

General

Models	EK18AC-189Li, EK18AC-216Li
Warranty	See manufacturer warranty

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $100. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EK18AC-189Li / EK18AC-216Li:

3 yearsFrame, mast and forks
1 yearTransmission, drive and lift motors, controllers, charger, hydraulic pump, sensors
Up to 5 yearsLithium battery on EKKO's designated lithium models (1 year on other batteries)
6 monthsLabor on specified models, with EKKO's prior approval
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (888) 378-6244 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(888) 378-6244 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (888) 378-6244 or email support@equipmentnation.com.

3-WHEEL LITHIUM FORKLIFT SERIES · EK18AC-189Li / EK18AC-216Li

4,000 LB, TWO LIFT HEIGHTS

The EKKO EK18AC Series lifts 4,000 lb to 189" or 216" on a 3-stage full free-lift mast, with a side shifter and fork positioner standard and a 48V/150Ah lithium-ion battery.

Capacity4,000 lbLift189″ / 216″PowerLithium 48V

4,000 lbCapacity

189″ / 216″Lift

Lithium 48VPower

YesSide shift

NewFull manufacturer warranty

BUILT FOR THE JOB

Attachments standard, lithium inside

The EK18AC Series is for warehouses, plants and distribution facilities that need 4,000 lb of capacity in aisles too tight for a 4-wheel truck. Pick the EK18AC-189Li for mid-height racking or the EK18AC-216Li when pallets go up to 216". Both use a 3-stage full free-lift mast with tilt, and both come with a side shifter and a fork positioner, so operators can square the load and set fork spacing without leaving the seat. A 48V/150Ah lithium-ion battery and a high-power front-wheel drive motor do the work, with a 480V 3-phase fast charger as standard.

See full specifications

WHY THE EK18AC-189LI / EK18AC-216LI

ENGINEERED WHERE IT COUNTS.

4,000 lb, 189" or 216"

Rated for 4,000 lb, with a choice of 189" or 216" maximum lift. The 3-stage full free-lift mast with tilt raises the forks before the mast grows taller, useful in trailers and under low beams.

48V/150Ah Lithium-Ion

A 48V/150Ah lithium-ion battery powers a high-power front-wheel drive motor. A 480V 3-phase fast charger is standard, with 220V 3-phase and 110V single-phase chargers available at extra cost.

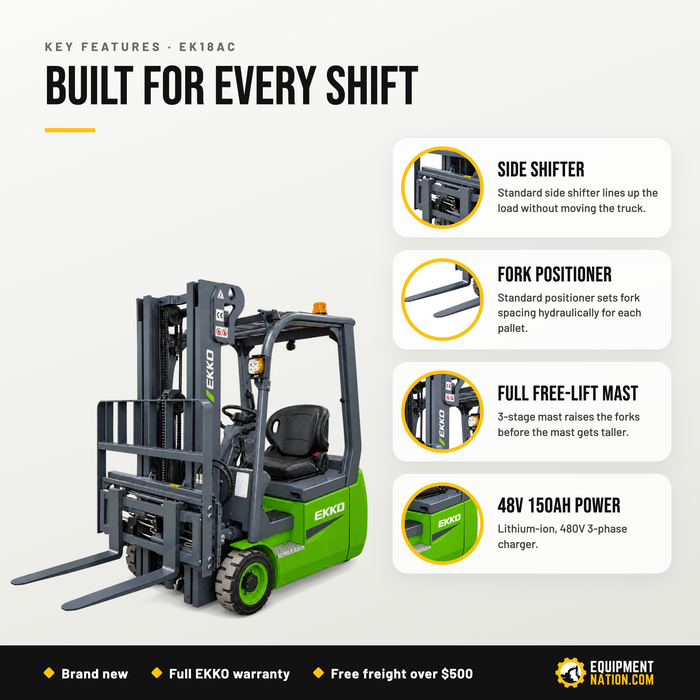

Compact 3-Wheel Turning

The 3-wheel layout and compact turning radius let the EK18AC work in tight aisles, crowded docks and busy production areas where a 4-wheel forklift needs more room to turn.

Side Shifter, Fork Positioner

Both attachments are standard. The side shifter lines the load up with the rack, and the fork positioner changes fork spacing hydraulically for different pallet sizes.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Warehouse racking

Put away 4,000 lb pallets up to 189" or 216" in aisles too tight for a 4-wheel forklift.

Mixed pallet sizes

Handle changing pallet widths through the day using the standard hydraulic fork positioner.

Manufacturing floors

Feed production lines and move finished goods in crowded plant layouts with a compact 3-wheel truck.

Distribution facilities

Load trailers and stage outbound orders with side shift for tight, accurate pallet placement.

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EK18AC-189LI / EK18AC-216LI.

Still unsure? Call (888) 378-6244 or email support@equipmentnation.com. Real people, Mon–Fri.

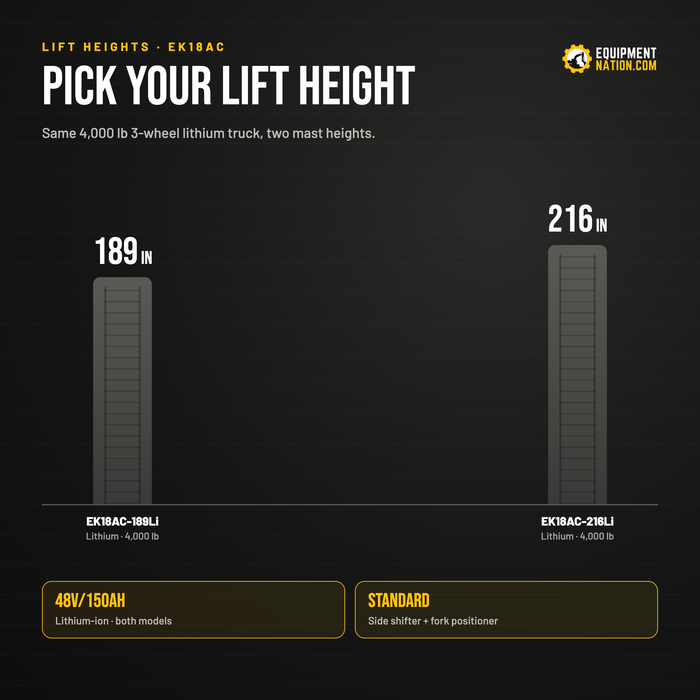

Which EK18AC lift height should I choose?

The EK18AC-189Li lifts to 189" and the EK18AC-216Li lifts to 216". Both carry 4,000 lb and share the same battery, mast type and attachments. Pick the model that clears your top beam with room to spare. Call (888) 378-6244 with your rack height and we will confirm the right one.

What charger comes with the EK18AC?

A 480V 3-phase fast charger is standard. If your building does not have 480V service, 220V 3-phase and 110V single-phase chargers are available at extra cost. The truck runs on a 48V/150Ah lithium-ion battery. Tell us your electrical service and we will match the charger.

What do the side shifter and fork positioner do?

The side shifter moves the forks left or right so the operator can line up a pallet without moving the truck. The fork positioner changes the spacing between the forks hydraulically, so switching between pallet sizes takes seconds. Both come standard on every EK18AC.

How does the EK18AC differ from the EK18AT?

Both are 4,000 lb 3-wheel lithium forklifts. The EK18AC uses a 48V/150Ah battery, offers 189" or 216" lift and includes a fork positioner as standard. The EK18AT uses a 48V/202Ah battery with dual motors and solid pneumatic tires, and lifts to 185" or 212".

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $100). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.

CUSTOMER REVIEWS

OWNERS ON THE EK18AC-189LI / EK18AC-216LI.

No reviews yet. Customer reviews will appear here as they come in.

Questions before you buy? Call (888) 378-6244.

Own the EK18AC-189Li / EK18AC-216Li? Be the first to review it.

How does it handle your loads and lift heights?
How does the battery hold up over a full shift?
How was ordering, delivery and setup?
