EKKO EOP150 Series Lithium Order Picker 1,500lb

EKKOModel EOP150 SeriesBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $2,299.95

$35,999.00

$35,999.00 - $45,999.00

$35,999.00

$34,199.05

$34,199.05 - $43,699.05

$34,199.05

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Quantity

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EOP150 Series

About the EOP150 Series

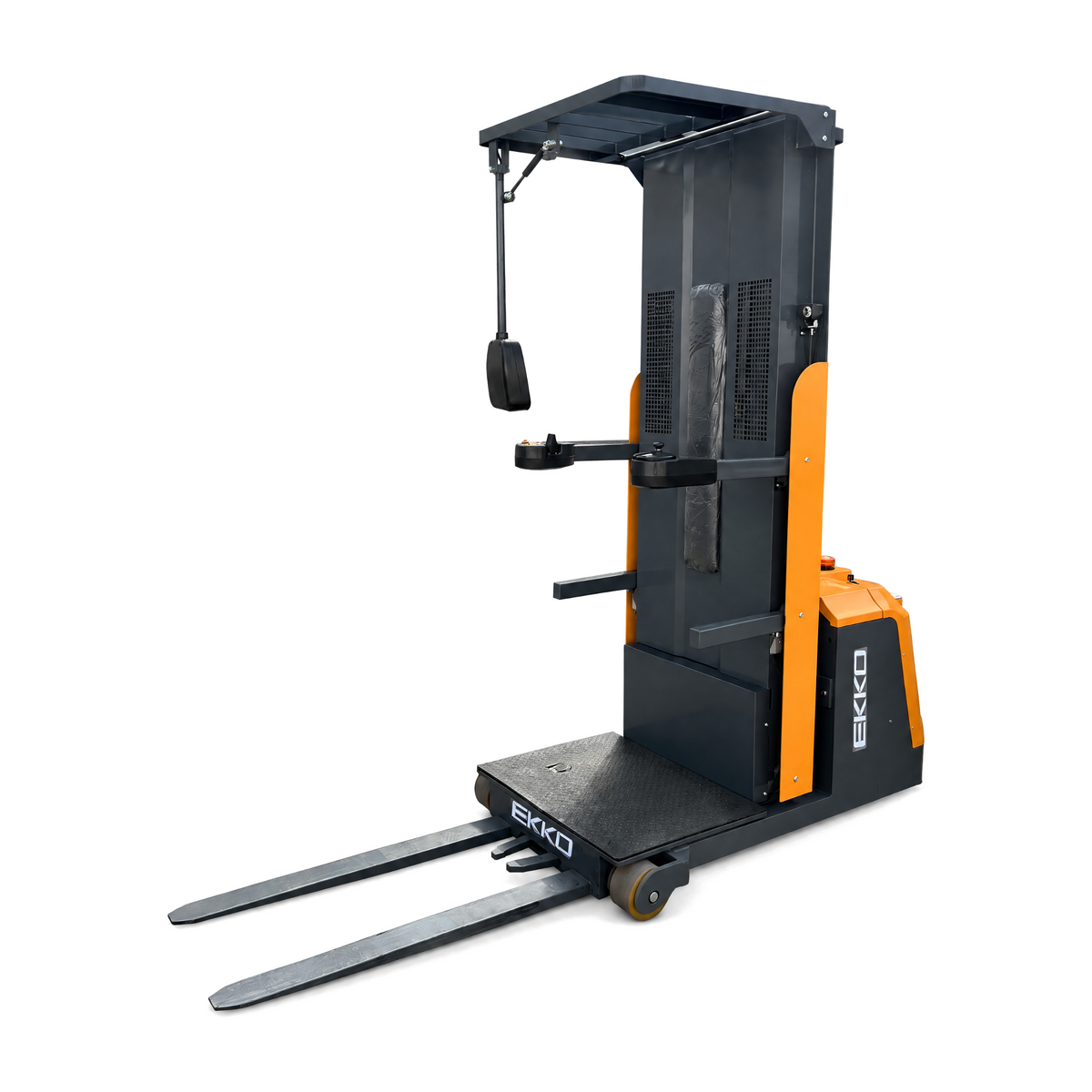

The EKKO EOP150 Series is a stand-on lithium order picker built to pick full orders from racking. The operator rides up with the load and builds the order on 42" forks rated for 1,500 lb at a 20" load center, with lift heights of 165", 216" or 275".

A 24V/200Ah lithium battery powers a 1.5 kW AC drive motor and 3 kW lift motor, with a Curtis controller, electric power steering and a 57" turning radius for picking aisles.

From the manufacturer

The EKKO EOP150 Series Order Picker is designed with one sole purpose: to efficiently pick your orders from racking and storage facilities, manufacturing floors and warehouses.

Constructed with high-quality steel and durable components, it is built to withstand heavy usage, impacts and directional changes, delivering dependable, consistent results in industrial environments.

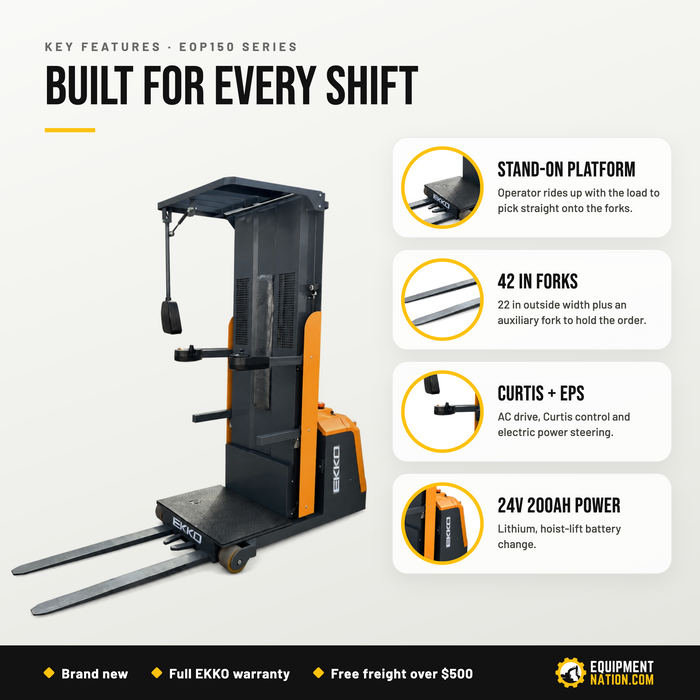

Highlights

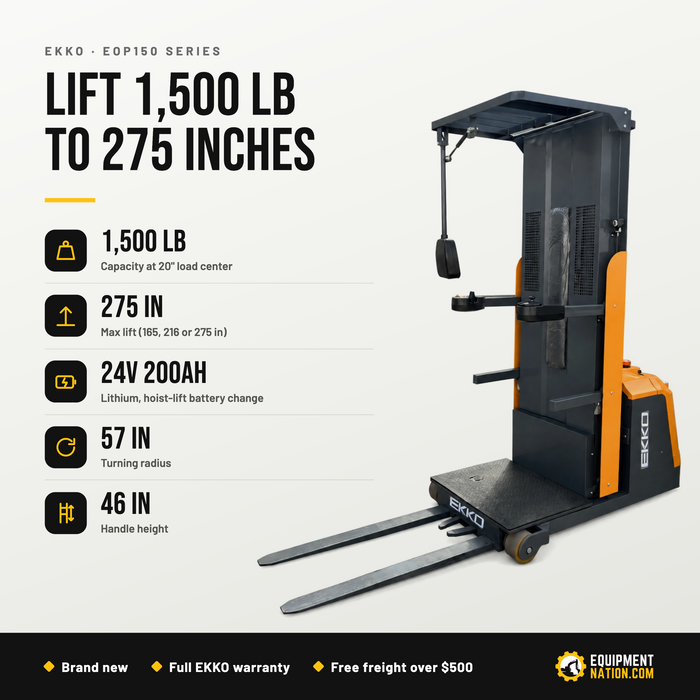

1,500 lb capacity at a 20" load center
Lift heights of 165", 216" or 275"
42" forks with a 22" outside width, plus an auxiliary fork
24V/200Ah lithium battery with hoist-lift battery change
1.5 kW AC drive motor and 3 kW lift motor
Curtis controller and electric power steering (EPS)
57" turning radius; 101" overall length
Electromagnetic brake and polyurethane wheels
EKKO warranty: 3 years on frame, mast and forks; 1 year on components

Specifications

Capacity & lift

Load capacity	1,500 lb
Load center	20 in
Lift height	165 / 216 / 275 in

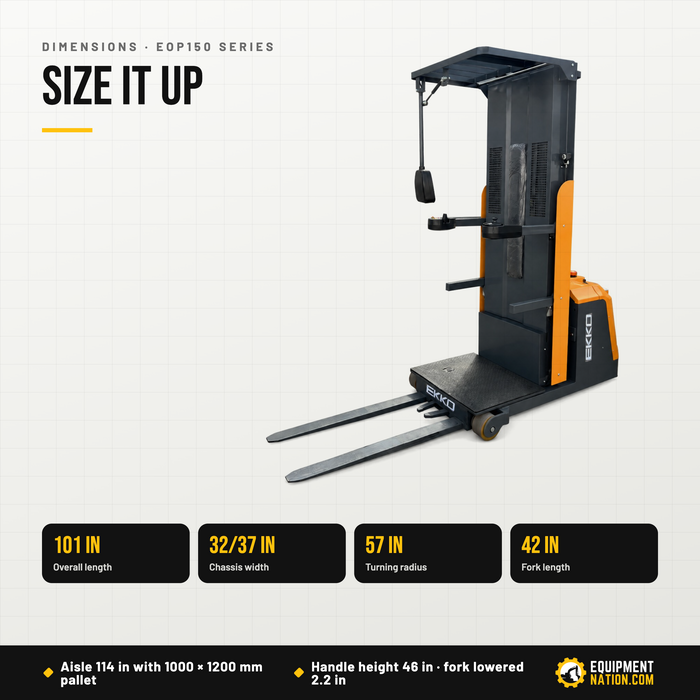

Dimensions

Overall length	101 in
Chassis width	32 / 37 in
Handle height	46 in
Cabin ground clearance	87 in
Ground clearance at wheelbase center	3 in
Turning radius	57 in
Aisle width, 1000 × 1200 mm pallet	114 in
Aisle width, 800 × 1200 mm pallet	118 in

Power & drive

Battery	24V / 200Ah lithium
Battery change	Hoist lift
Drive motor	1.5 kW, AC control
Lift motor	3 kW
Travel speed (4 gears)	3.10 / 1.55 / 0.75 / 0.37 mph
Max gradeability (loaded/unloaded)	0%
Steering	Electric power steering
Brake	Electromagnetic
Controller	Curtis

Forks & chassis

Fork size (T × W × L)	1.6 × 5 × 42 in
Fork outside width	22 in
Fork lowered height	2.2 in
Front overhang	3.4 in
Auxiliary fork	Yes
Wheels	Polyurethane (drive and load)

General

Model	EOP150-165Li / EOP150-216Li / EOP150-275
Operation	Stand-on
Warranty	3 yr frame, mast & forks · 1 yr components

Manuals & downloads

EKKO Advantage Warranty

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $100. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EOP150 Series:

3 yearsFrame, mast and forks
1 yearTransmission, drive and lift motors, controllers, charger, hydraulic pump, sensors
Up to 5 yearsLithium battery on EKKO's designated lithium models (1 year on other batteries)
6 monthsLabor on specified models, with EKKO's prior approval
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (888) 378-6244 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(888) 378-6244 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (888) 378-6244 or email support@equipmentnation.com.

LITHIUM ORDER PICKER · EOP150 Series

PICK ORDERS UP TO 275" HIGH

The EKKO EOP150 Series lithium order picker carries 1,500 lb at a 20" load center, with 165", 216" or 275" of lift and a 24V/200Ah lithium battery.

Capacity1,500 lbLift165–275″BatteryLithium 24V/200Ah

1,500 lbCapacity

165–275″Lift

Lithium 24V/200AhBattery

57″Turning radius

NewFull manufacturer warranty

BUILT FOR THE JOB

Built for One Job: Picking

The EOP150 Series is designed for one purpose: picking orders from racking and storage in warehouses, distribution centers and manufacturing plants. The operator stands on the platform and rides up with the load, building orders onto 42" forks rated for 1,500 lb at a 20" load center, with an auxiliary fork to help hold the order. Choose 165", 216" or 275" of lift to match your top pick face. A 1.5 kW AC drive motor, 3 kW lift motor, Curtis controller and electric power steering run on a 24V/200Ah lithium battery, and a 57" turning radius keeps it nimble in picking aisles.

See full specifications

WHY THE EOP150 SERIES

ENGINEERED WHERE IT COUNTS.

1,500 lb, Three Heights

Rated for 1,500 lb at a 20" load center. Choose 165", 216" or 275" of lift to match your top pick level. 42" forks with a 22" outside width and an auxiliary fork hold the order.

24V/200Ah Lithium Power

A 24V/200Ah lithium battery runs a 1.5 kW AC drive motor and a 3 kW lift motor. The battery is changed by hoist lift, and lithium means no battery watering routine.

Tight Aisle Geometry

A 57" turning radius and 32"/37" chassis width suit picking aisles. EKKO lists a 114" right-angle aisle with 1000 × 1200 mm pallets and 118" with 800 × 1200 mm pallets.

Measured, Steady Control

Four travel speeds from 0.37 to 3.10 mph, electric power steering, a Curtis controller and an electromagnetic brake give controlled moves between pick faces. Polyurethane wheels protect floors.

WHERE IT WORKS

MADE FOR YOUR OPERATION.

Case Picking

Build mixed-case pallet orders from several rack levels in distribution centers and wholesale warehouses.

Parts Distribution

Pick parts and components from upper rack locations and build the shipment on the forks as you go.

Retail Replenishment

Assemble store replenishment orders from high reserve locations in regional retail distribution centers.

Manufacturing Kitting

Kit components from tall storeroom racking and deliver complete kits to production lines on schedule.

FROM CHECKOUT TO YOUR DOCK

ORDER. CONFIRM. DELIVER. WORK.

01
Order online
Pick your model and how you'll unload it. Pay by card, financing or ACH.
02
Ship date confirmed
We confirm stock and your ship date by email within 1 business day.
03
Freight delivery
Ships factory-direct from the manufacturer. The carrier calls ahead to schedule.
04
Inspect & sign
Check the crate before signing and note any damage. We handle the rest.

BEFORE YOU BUY

QUESTIONS ABOUT THE EOP150 SERIES.

Still unsure? Call (888) 378-6244 or email support@equipmentnation.com. Real people, Mon–Fri.

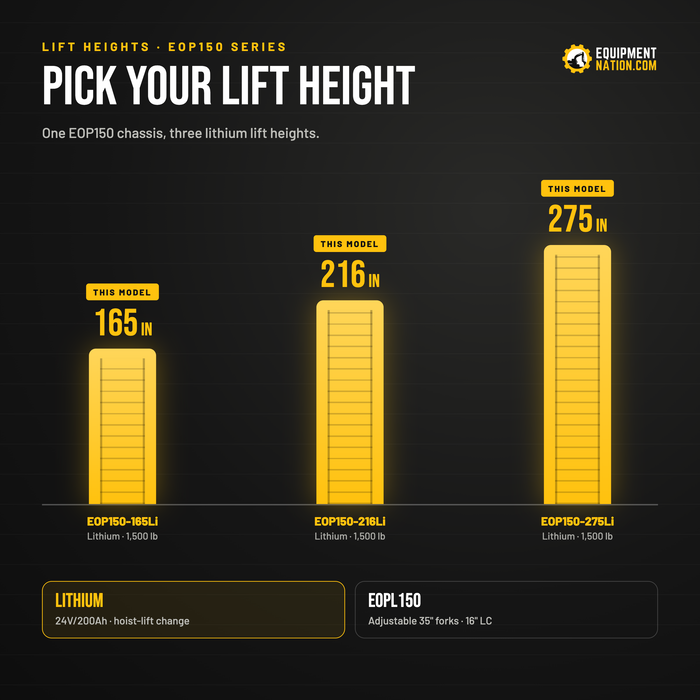

Which lift heights does the EOP150 Series come in?

The series is offered as the EOP150-165Li, EOP150-216Li and EOP150-275, lifting to 165", 216" or 275". All three carry 1,500 lb at a 20" load center on 42" forks. Tell us your top pick face and ceiling height at (888) 378-6244 and we will confirm the right height.

What aisle width does the EOP150 need?

EKKO lists a right-angle stacking aisle of 114" with a 1000 × 1200 mm pallet and 118" with an 800 × 1200 mm pallet. Turning radius is 57" and overall length is 101". Measure your narrowest aisle, or call (888) 378-6244 with your layout and we will check the fit.

Can the EOP150 be used on ramps?

No. EKKO rates the EOP150's maximum gradeability at 0% loaded and unloaded, so it is meant for level warehouse floors. Plan picking routes that avoid ramps and dock plates, and use a different truck for loading and unloading trailers.

How does the EOP150 differ from the EOPL150?

Both carry 1,500 lb on a 24V/200Ah lithium battery with a 57" turning radius. The EOP150 has 42" forks at a 20" load center and heights up to 275". The EOPL150 has adjustable 35" forks at a 16" load center, a 76" overhead guard and heights of 165" or 216".

How long until it ships?

We confirm stock and your ship date by email within 1 business day. In-stock units usually leave the warehouse in 2–5 business days, then freight transit takes 3–7 business days.

Is shipping really free?

Yes, on orders over $500 to the 48 contiguous states (orders under $500 ship for a flat $100). You'll need a dock or forklift to unload; otherwise choose liftgate delivery (+$150).

Can I finance it?

Yes. Choose Shop Pay Installments or Affirm at checkout to spread payments out, or call us about ACH/wire for large orders.
