EKKO EK18RRL Reach Truck – 4,000 lb Capacity, 196" Lift, 22.44" Reach, Stand-Up Narrow Aisle, 48V/420Ah Battery

Name: EKKO EK18RRL Reach Truck – 4,000 lb Capacity, 196" Lift, 22.44" Reach, Stand-Up Narrow Aisle, 48V/420Ah Battery
Brand: EKKO
SKU: EK18RRL
Price: 43889.05 USD
Availability: InStock

EKKOModel EK18RRLBrand new · Full warrantyBe the first to review

Free freight shipping · ships factory-direct from EKKO. Ship date confirmed by email within 1 business day.

Save $2,309.95

$46,199.00

$46,199.00 - $46,199.00

$46,199.00

$43,889.05

$43,889.05 - $43,889.05

$43,889.05

Configure your EK18RRL

Compare models

Lift height: 196″

196″ Selected 275″ +$3,990

Battery: Lead-acid 48V

Lead-acid 48V Selected Lithium 48V +$2,660

Reach higher racks: 196" lift height expands vertical storage capacity.
Save time in tight aisles: Narrow aisle reach truck design and 75" turning radius speed up staging.
Effortless handling: Standup reach truck platform with EPS steering reduces operator strain.
Built for daily success: Steel frame, robotic welding, and German AC drive motor ensure reliability.
Buy with confidence: Backed by a 3-year limited manufacturer’s warranty for peace of mind.

Delivery

Freight delivery FREEFree shipping on orders over $500 (lower 48) Pick up at the EKKO warehouse1761 W Holt Ave, Pomona, CA 91768

How will you unload it? Required

Forklift on siteRated for this unit's shipping weight Loading dock48–52″ high, reachable by a full-size freight truck Liftgate delivery +$150Driver lowers it to the ground. Needed for homes and sites without a dock or forklift.

Free freightorders over $500
Full warrantybrand new
30-day returnsdamage covered
Price matchauthorized dealers

Buying for a business? Pay by ACH or wire and skip card fees. Get wire details

EKKO · EK18RRL

About the EK18RRL

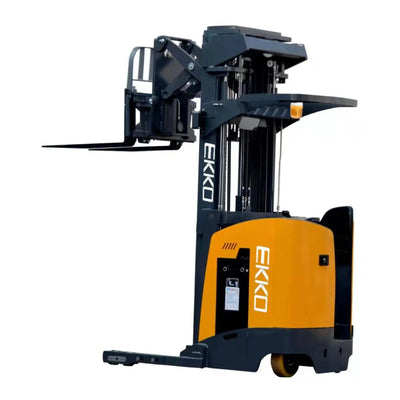

EKKO EK18RRL Reach Truck

The EKKO EK18RRL reach truck is engineered to maximize storage density and handling efficiency in demanding warehouse workflows.

Its compact geometry and agile mast excel as a narrow aisle reach truck, giving operators confident maneuverability around high-density racking.

Maximize vertical storage: Work higher bays with a high reach forklift capability of 196" lift height.
Optimize warehouse flow: Purpose-built as a warehouse reach truck for fast staging, retrieval, and dock work.
Operate with confidence: Standup reach truck platform improves visibility, maneuverability, and step-on/step-off efficiency.
Power and efficiency: 48V AC drive system delivers the quiet, responsive performance of an electric reach truck.
Precise load handling: Side-shifting forks and smooth hydraulics make this a dependable reach lift truck for tight placements.
Built for uptime: German AC drive motor, Curtis controller, EPS steering, and robotic-welded steel chassis.
3-year limited manufacturer’s warranty for peace of mind

Key Features

Capacity: 4,000 lb load rating with 24" load center
Lift Height: 196" maximum lift with 22.44" reach distance
Operator Design: Stand-up configuration with excellent visibility
Mast: Triple mast with 53.15" free lift and tilt function
Forks: Side-shifting forks, adjustable width 7.9" – 35.04", 45" length
Turning Radius: 75" for efficient operation in tight aisles
Drive System: German AC drive motor (48V/6000W) with EPS steering
Lift Motor: 48V/11000W for dependable lifting power
Battery & Charger: 48V/420Ah battery with 48V/65A 480V charger
Service Weight: 9,000 lbs total

From The Manufacturer

The EKKO EK18RRL Stand-Up Narrow Aisle Reach Truck is a powerful and versatile solution designed to maximize storage space and efficiency in your warehouse. Ideal for navigating narrow aisles and reaching high racking, this truck excels in various applications, from loading and unloading trucks to optimizing stockroom organization and streamlining warehouse operations.

Built with high-quality steel components and durable drive systems, the EK18RRL is engineered for reliable performance in demanding environments. Its robust construction confidently handles frequent use, impacts, and directional changes. The stand-up design provides excellent visibility and maneuverability.

Brand

Specifications

Model	EK18RRL
Lift	Electric
Drive	Electric
Load Capacity	4000 lbs
Load Center Distance	24 in
Lifting Height	196 in
Side Shifting Forks	3-Way Valve
Free Lift	53.15 in
Lowered Mast Height	96.42 in
Overall Length/Extended	102.28 in
Overall Width	54.72 in
Fork Size (T/W/L)	1.58 / 4.72 / 45 in
Fork Adjust Width	35.04 in
Reach Distance	22.44 in
Turning Radius	75 in
Charger	48V/65A 480V
Driving Motor	48V/6000W
EPS Steering Motor	Yes
Lifting Motor	48V/11000W
Battery Voltage	48V/420Ah
Service Weight	9,000 lbs

Documentation

⛟Shipping & deliveryFree freight shipping · ship date confirmed in 1 business day

Free freight shipping on orders over $500 to the 48 contiguous states; orders under $500 ship for a flat $100. Remote areas are quoted before you pay.

Machines ship factory-direct. We confirm stock and your ship date by email within 1 business day; transit is typically 3–7 business days and the carrier calls ahead to schedule.

You unload with a forklift or loading dock. No dock? Choose liftgate delivery (+$150) above. Or pick up free at the EKKO warehouse, 1761 W Holt Ave, Pomona, CA.

Inspect the crate before signing, note any damage on the delivery receipt, and report concealed damage within 3 business days.

✓Manufacturer warranty3-year frame, mast & forks · 1-year components · we handle claims for you

Every machine is brand new and covered by the EKKO Advantage Warranty. Coverage for the EK18RRL:

3 yearsFrame, mast and forks
1 yearTransmission, drive and lift motors, controllers, charger, hydraulic pump, sensors
Up to 5 yearsLithium battery on EKKO's designated lithium models (1 year on other batteries)
6 monthsLabor on specified models, with EKKO's prior approval
30 daysWear items (tires, bulbs, rubber parts)

As an authorized EKKO dealer, we file and manage warranty claims with EKKO for you: send us a photo of the data plate and a photo or video of the problem and we take it from there. Coverage applies to the original purchaser under normal use and scheduled maintenance; wear, overloading, accidents and freight damage aren't covered.

Read the full warranty (PDF) →

↺30-day returnsDamaged or defective on arrival? We cover the freight.

Request a return within 30 days of delivery by phone or email. Equipment must come back in the condition it was received.

Returns of machines working as intended carry a 10% restocking fee and the customer pays return freight. If your equipment arrives damaged or becomes defective within 30 days, we cover return and replacement freight.

Read the full return policy →

$Price match guaranteeFound it lower from an authorized dealer? We'll match it.

If an authorized dealer advertises the identical model, configuration and warranty for less, we'll match that price, as long as it isn't below the manufacturer's minimum advertised price.

Ask before you order or within 7 days of your order date: call (888) 378-6244 or email support@equipmentnation.com with the dealer, link and price. Freight, taxes and fees are excluded.

Price match details →

☎Talk to an equipment expert(888) 378-6244 · Mon–Fri, 9–5 ET

Send us your load weight, lift height, aisle width and door clearances and we'll confirm this is the right machine before you buy. Call (888) 378-6244 or email support@equipmentnation.com.

EKKO REACH TRUCKS · EK18RRL

GO UP. NOT OUT.

Store more in the same square footage. Narrow-aisle reach puts pallets high in the rack with precision.

Capacity4,000 lbLift196″Reach22.44″

4,000 lbCapacity

196″Lift

22.44″Reach

Lead-acid 48VBattery

NewFull manufacturer warranty

COMPARE SIMILAR MODELS

FIND YOUR EXACT FIT.

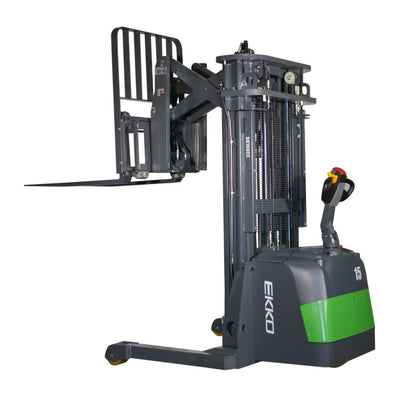

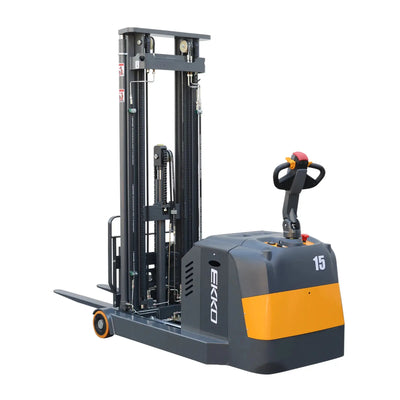

	This itemEK18RRL$43,889.05	EH15T$22,799.05	EH15TH$24,224.05	ER15-138Li$24,224.05
Capacity	4,000 lb	3,300 lb	3,300 lb	3,300 lb
Lift	196″	138″	216″	138″
Reach	22.44″	19.7″	19.7″	19.7″
Battery	Lead-acid 48V	Lead-acid 24V	Lead-acid 24V	Lithium 24V
Shipping	Free	Free	Free	Free
	You're viewing this	View details	View details	View details
